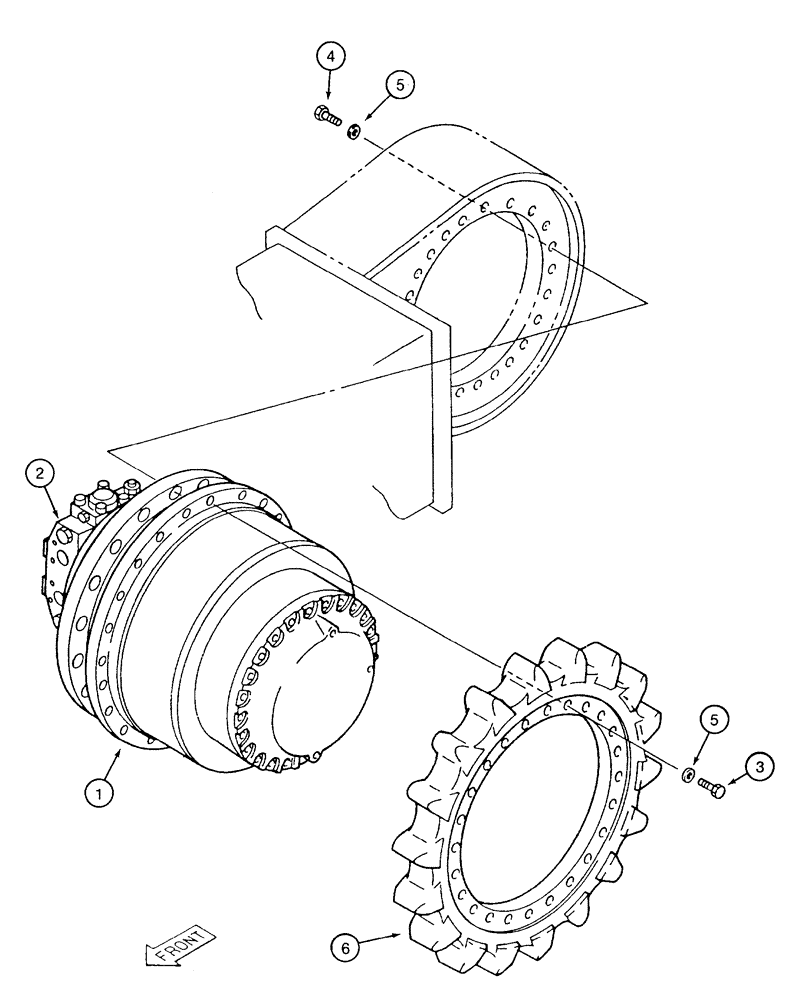

Запчасти Case 9040 (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

151890A1

MOTOR

ASSEMBLY - track drive, parts list figures 6-04 through 6-08, Includes: Ref. 1 and 2

2шт.

1

158038A1

TRANSMISSION

ASSEMBLY - without track drive motor, parts list figure 6-04

1шт.

2

155828A1

MOTOR

ASSEMBLY - track drive, parts list figure 6-06 and 6-08

1шт.

3

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

60шт.

4

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

44шт.

5

150991A1

WASHER

- flat, special, 16 mm

104шт.

6

151112A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.
