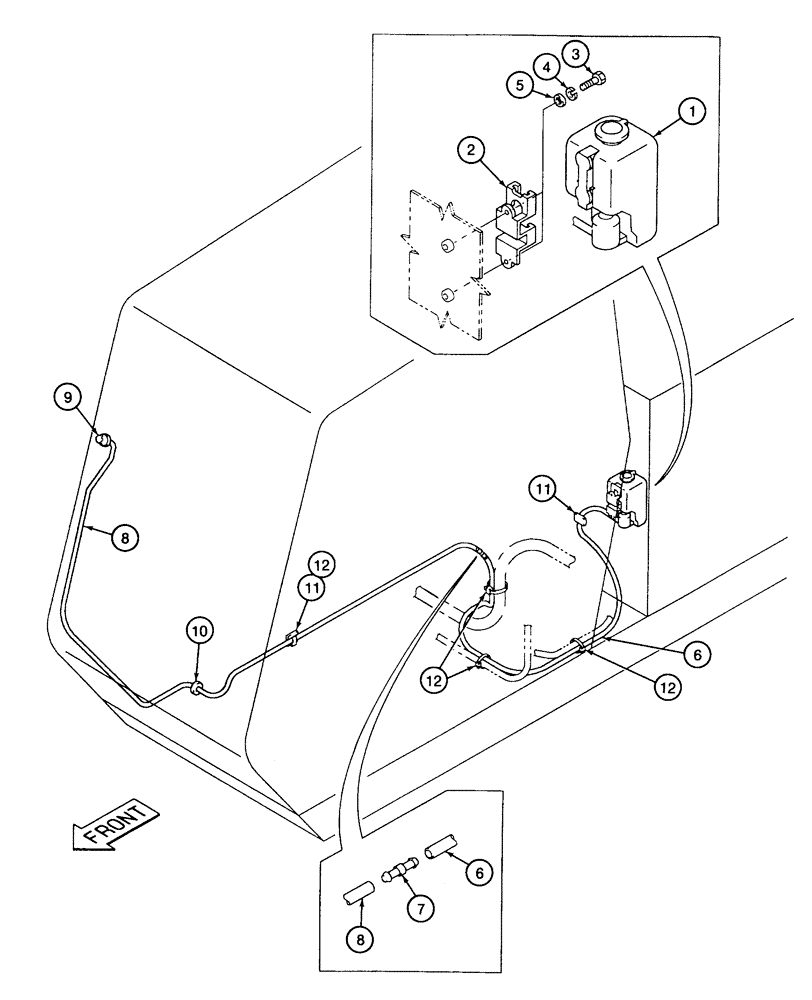

Запчасти Case 9040 (4-28) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

150610A1

RESERVOIR

- windshield washer fluid

1шт.

2

151377A1

HANGER

BRACKET - reservoir

1шт.

3

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

156911A1

PLASTIC-RUBBER TUBE,7 mm ID, 4 mm OD, 2000 mm Length

TUBE - reservoir to connector

1шт.

7

152824A1

ADAPTER

CONNECTOR - special

1шт.

8

152827A1

LARGE HOSE,4 mm ID, 7 mm OD, 2500 mm Length

TUBE - connector to nozzle

1шт.

9

152688A1

NOZZLE INJECTION

NOZZLE - windshield washer

1шт.

10

152841A1

GROMMET

- rubber

1шт.

11

150712A1

CLIP

- tube support

2шт.

12

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.
