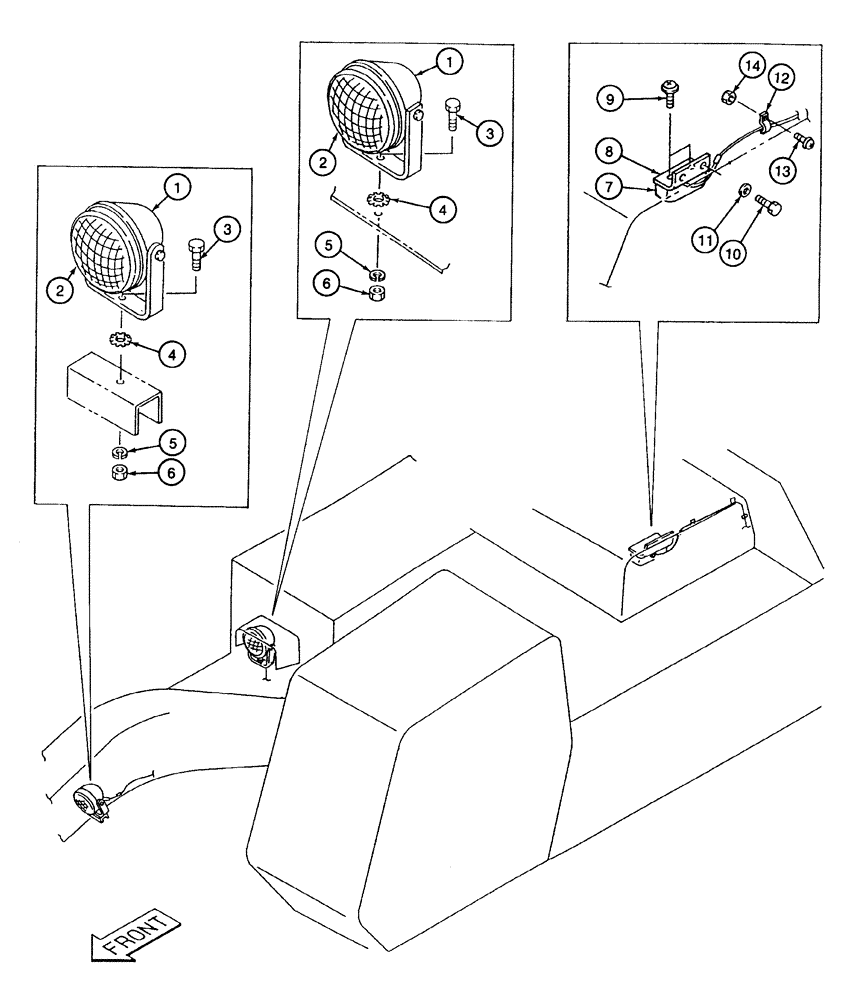

Запчасти Case 9040 (4-24) - WORK LAMPS AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

150037A1

LAMP

ASSEMBLY - front upper structure and boom, Includes: Ref. 2

2шт.

2

150043A1

BEAM

LAMP - sealed beam

2шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

4

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER - internal tooth lock, 12 mm

2шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

6

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

7

152890A1

LAMP

- engine compartment, Includes: Ref. 7A

1шт.

7a

150934A1

BULB

LAMP - bulb, not shown

1шт.

8

150658A1

BRACKET

- lamp, mounting

1шт.

9

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

- pan head, special

2шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

11

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

12

150354A1

CLAMP

- P type, 4.6 mm ID

4шт.

13

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

- special

4шт.

14

824-1404

NUT,M4, Cl 5

- hex, 4 mm - 0.7, class 5

4шт.
