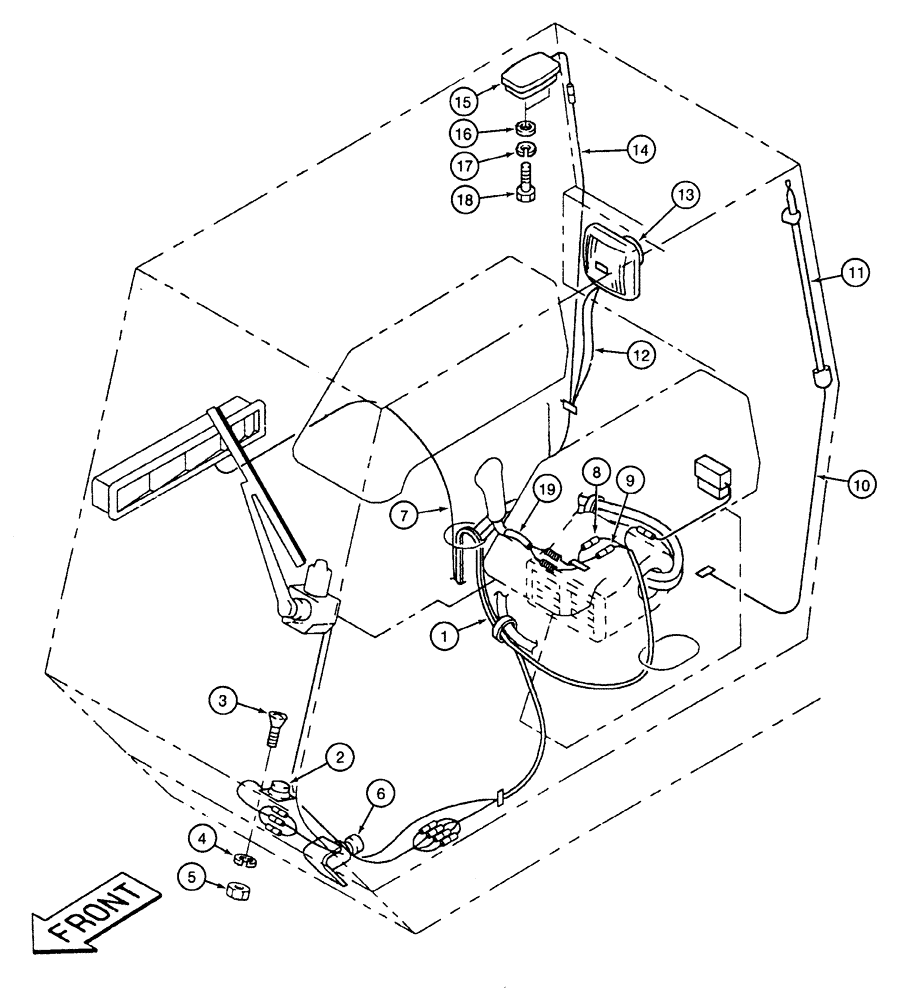

Запчасти Case 9040 (4-22) - CAB HARNESS, DOME LAMP AND SPEAKER (04) - ELECTRICAL SYSTEMS

1

152075A1

HARNESS

- left-hand console

1шт.

2

158884A1

IGNITION SWITCH

SWITCH - push button, travel speed

1шт.

3

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

- machine, flat Phillips, 5 - 0.8 x 16 mm

2шт.

4

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

6

151143A1

SWITCH

- limit, travel alarm

2шт.

7

150930A1

HARNESS

- instrument cluster

1шт.

8

150089A1

TERMINAL CONNECTOR

CONNECTOR - electrical

1шт.

9

150094A1

TERMINAL CONNECTOR

CONNECTOR - electrical

1шт.

10

152500A1

CABLE ASSY.

WIRE - antenna

1шт.

11

152497A1

ANTENNA

- radio

1шт.

12

150586A1

ELECTRICAL WIRE

WIRE - speaker

1шт.

13

150389A1

SPEAKER

- radio

1шт.

13a

151081A1

ELECTRICAL WIRE

WIRE - speaker, not shown

1шт.

13b

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

- machine, pan Phillips, 5 - 0.8 x 16 mm, Not shown

4шт.

14

150926A1

HARNESS

- dome lamp

1шт.

15

150379A1

LAMP

- dome, Includes: Ref. 15A

1шт.

15a

150934A1

BULB

LAMP - bulb, not shown

2шт.

16

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

17

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

18

113632A1

SELF-TAP SCREW

- self-tapping, special, dome lamp mounting

2шт.

19

151031A1

TUBE,3.6 mm ID, 200 mm Length

- vinyl, 7-7/8 inch (200 mm) long

1шт.
