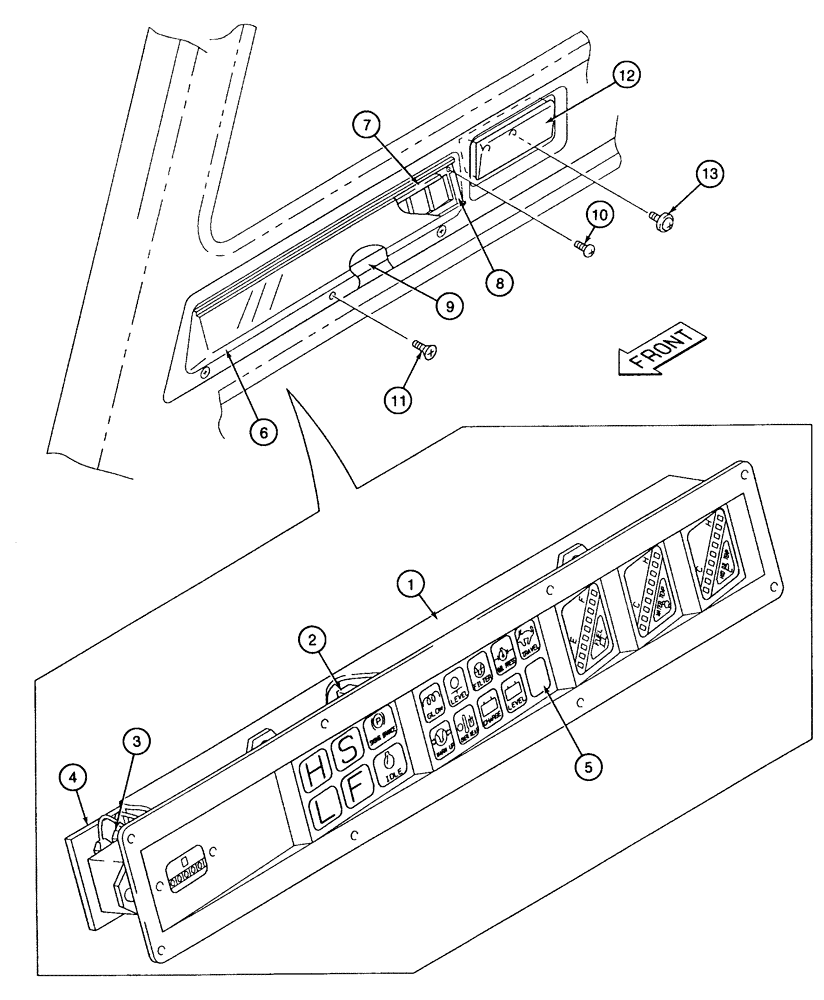

Запчасти Case 9040 (4-16) - INSTRUMENT CLUSTER AND MOUNTING (04) - ELECTRICAL SYSTEMS

152464A1

CONTROL

CLUSTER ASSEMBLY - instrument, Includes: Ref. 1 - 5

1шт.

1

151714A1

BOARD, PRINTED CIRCU

CLUSTER - instrument

1шт.

2

150755A1

LAMP

- instrument cluster

18шт.

3

152805A1

HOURMETER

- electric

1шт.

4

150764A1

PLATE

- backing, instrument cluster

1шт.

5

153084A1

CAP

COVER - gauge hole

1шт.

6

156638A1

PANEL ASSY.

COVER - instrument panel, cluster, dust

1шт.

152386A1

SEAL

KIT - cover seal, Includes: Ref. 7 and 8

1шт.

7

152499A1

SEAL

- cushion, horizontal, cushion

2шт.

8

152502A1

SEAL

- cushion, vertical

2шт.

9

151549A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 3-1/8 inch (80 mm) long, cluster

1шт.

10

150875A1

SCREW,Phil Truss Hd, M4 x 12mm

- special

8шт.

11

150818A1

SCREW,Spcl, Oval Hd Csk, M4 x 12mm

- special, cover mounting

4шт.

12

151946A1

ASH TRAY

ASHTRAY - cab

1шт.

13

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

- pan head, catch retaining

2шт.
