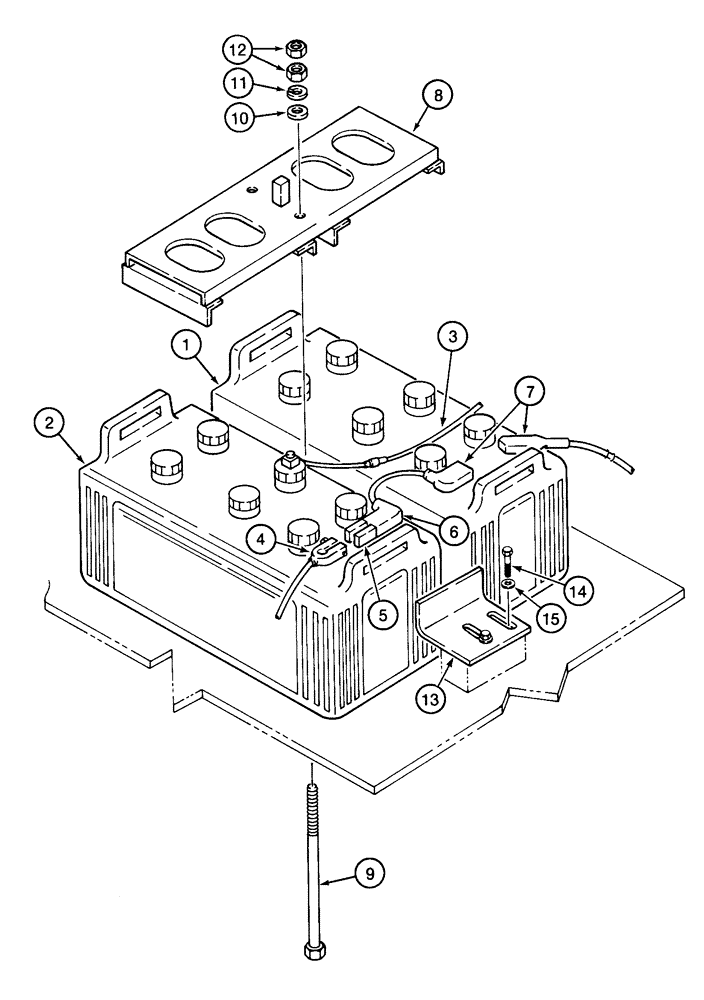

Запчасти Case 9040 (4-14) - BATTERIES AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

151893A1

BATTERY, WET

BATTERY - without low level sensor, 12 volt, 780 Cold Cranking Amps, Includes: Ref. 2 and 3

1шт.

150797A1

BATTERY

ASSEMBLY - with low level sensor, 12 volt, 780 Cold Cranking Amps, no longer available, order components below, Includes: Ref. 2 and 3

1шт.

2

151893A1

BATTERY, WET

BATTERY - without low level sensor, 12 volt, 780 Cold Cranking Amps

1шт.

3

150099A1

SENSOR

- low electrolyte

1шт.

4

150455A1

TERMINAL CONNECTOR

CLAMP - terminal, negative, battery

2шт.

5

158403A1

TERMINAL CONNECTOR

CLAMP - terminal, positive, battery, replaces 150450A1 clamp

2шт.

6

150360A1

CAP

COVER - terminal

2шт.

7

150364A1

CAP

COVER - terminal

2шт.

8

150784A1

SUPPORT

- battery

1шт.

9

150789A1

STUD,M10 x 280mm

STUD - special, 10 - 1.5 x 280 mm, battery holder

2шт.

10

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

11

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

2шт.

12

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

4шт.

13

150800A1

BRACKET

- battery retaining

1шт.

14

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

15

150988A1

WASHER

- flat, special, 12 mm

2шт.
