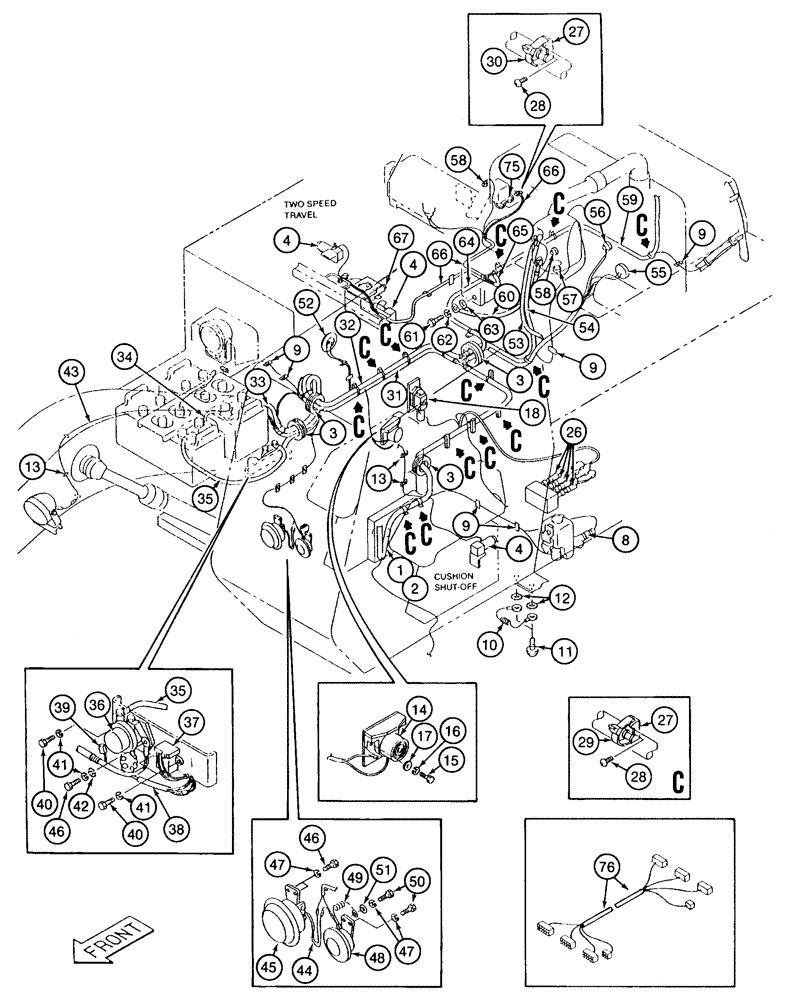

Запчасти Case 9040 (4-10) - MAIN ELECTRICAL WIRING AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

151376A1

HARNESS

- main

1шт.

2

150412A1

TUBE,13 mm ID, 17.5 mm OD, 2300 mm Length

SLEEVE - corrugated

1шт.

3

152117A1

GROMMET

- rubber, harness

4шт.

4

150844A1

VALVE

ASSEMBLY - solenoid, parts list figure 8-54

3шт.

8

150912A1

SWITCH

- pressure, windshield washer

1шт.

9

150563A1

CLIP

- wire

1шт.

10

150246A1

HARNESS

WIRE - ground

1шт.

11

152100A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 16mm

- special

2шт.

12

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

13

150712A1

CLIP

- wire support

1шт.

14

162218A1

ALARM

- travel, backup, replaces 151829A1 alarm

1шт.

15

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

153470A1

VALVE

ASSEMBLY - solenoid, free swing, parts list figure 8-66

1шт.

26

151834A1

SWITCH

- pressure

4шт.

27

150860A1

COLLAR

BRACKET - support

16шт.

28

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm, clamp bracket mounting

16шт.

29

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

30

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

31

150280A1

TUBE

SLEEVE - corrugated, 59 inch (1500 mm) long

1шт.

32

150408A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 2000 mm Length

SLEEVE - corrugated

1шт.

33

151388A1

NEG BATTERY CABLE

CABLE - battery

1шт.

34

150738A1

NEG BATTERY CABLE

CABLE - battery

1шт.

35

151133A1

NEG BATTERY CABLE

CABLE - battery

1шт.

36

150663A1

RELAY

- battery

1шт.

37

150070A1

RELAY

- heating

1шт.

38

150236A1

TUBE

SLEEVE - corrugated, 11-13/16 inch (300 mm) long

1шт.

39

150369A1

DIODE

- electrical, at harness

1шт.

40

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

3шт.

41

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

42

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

43

150828A1

HARNESS

- wiring, work lamp on boom

1шт.

44

150698A1

HARNESS

WIRE - horn crossover

1шт.

45

151739A1

HORN

- electrical

1шт.

47

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

48

152169A1

HORN

- electrical

1шт.

49

150061A1

HARNESS

WIRE - ground, horn

1шт.

50

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

51

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

2шт.

52

152111A1

SENSOR

- fuel level

1шт.

53

150265A1

TUBE

SLEEVE - corrugated, 31-1/5 inch (800 mm) long

1шт.

54

150401A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1000 mm Length

SLEEVE - corrugated, 39-3/8 inch (1000 mm) long

1шт.

55

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, replaces 152416A1 thermostat

1шт.

56

1546461C2

SWITCH

- oil pressure, 10 psi, replaces 152396A1 switch

1шт.

57

150032A1

LIMIT SWITCH

SWITCH - limit

1шт.

58

150974A1

SENSOR

SENDER - temperature

2шт.

59

150406A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1500 mm Length

SLEEVE - corrugated, plastic, special, 59 inch (1500 mm) long

1шт.

60

152481A1

HARNESS

WIRE - ground

1шт.

61

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

1шт.

62

892-11010

LOCK WASHER,M10

1шт.

63

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

64

150394A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 500 mm Length

SLEEVE - corrugated

1шт.

65

150386A1

TUBE,13 mm ID, 17.5 mm OD, 150 mm Length

SLEEVE - corrugated

1шт.

66

150259A1

TUBE

SLEEVE - corrugated, 23-5/8 inch (600 mm) long

1шт.

67

150425A1

VALVE

ASSEMBLY - solenoid, control shutoff, parts list figure 8-52

1шт.

75

152660A1

PLASTIC-RUBBER TUBE

GUARD - harness

1шт.

76

158611A1

HARNESS

- wire, for Timber King models with raised cab

1шт.

46

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

3шт.
