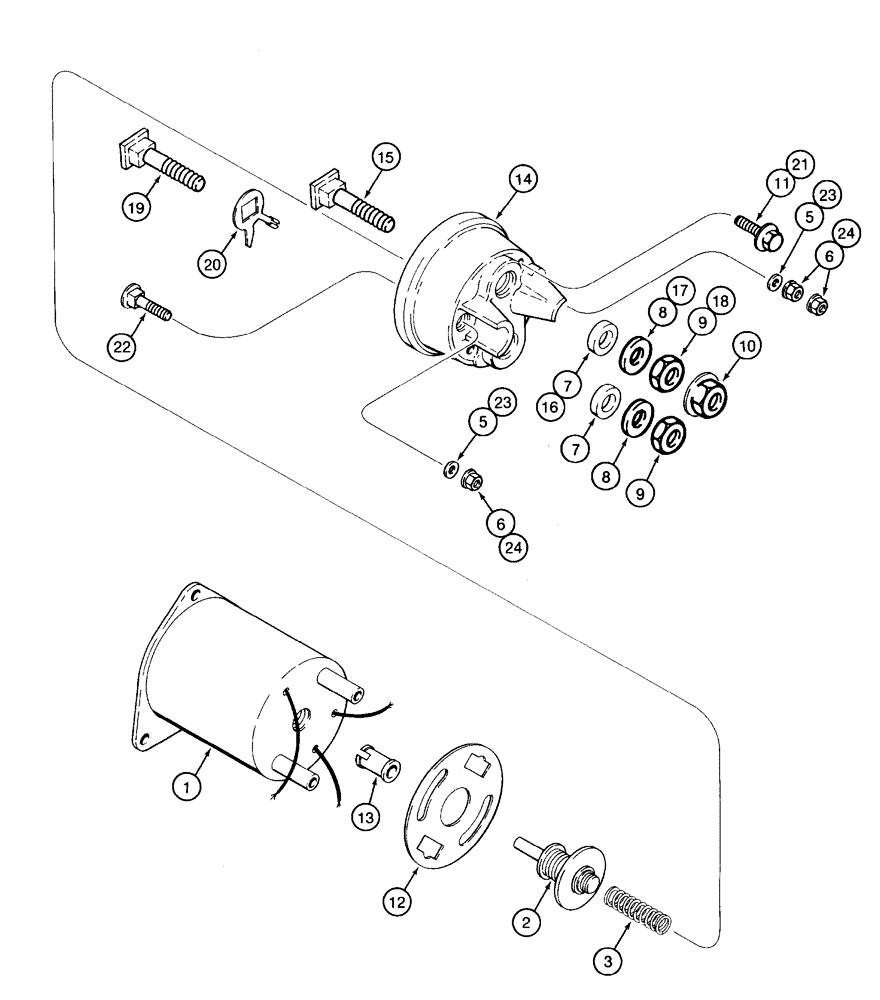

Запчасти Case 9040 (4-08) - STARTER SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS

1546546C1

SOLENOID

ASSEMBLY - starter, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - solenoid

1шт.

2

A49566

CONTACTOR

- solenoid

1шт.

3

A42411

VALVE SPRING

SPRING - return, contact disc

1шт.

5

A42084

INSULATOR

- terminal, rubber

2шт.

6

1546549C1

NUT

- hex flange, special, No. 10 - 32 NF

3шт.

7

116382A1

SEALING WASHER

WASHER - sealing

2шт.

8

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

- flat, 33/64 x 7/8 x 1/16 inch

2шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

10

A47890

NUT

NUT - flange type, special, 1/2 inch NC

1шт.

11

116381A1

SCREW

BOLT - flange, No. 10 NF x 21/32 inch, with washer and seal, cover retaining

2шт.

12

A49565

GASKET

- cover

1шт.

13

A49564

STUD

BUSHING - contact

1шт.

116684A1

COVER

ASSEMBLY - solenoid, Includes: Ref. 14 - 24

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

15

116686A1

BOLT

BOLT - special, 1/2 inch NC

1шт.

16

116382A1

SEALING WASHER

WASHER - sealing, upper bolt

1шт.

17

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

- flat, 33/64 x 7/8 x 1/16 inch

1шт.

18

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

19

A49563

STUD

- terminal, special

1шт.

20

116688A1

WASHER

- special, terminal

1шт.

21

A42090

TERMINAL CONNECTOR

STUD - terminal, No. 10

2шт.

22

A49870

BOLT

- special, solenoid cover

2шт.

23

A42084

INSULATOR

- terminal, rubber

2шт.

24

1546549C1

NUT

- hex flange, special, No. 10 - 32 NF

2шт.
