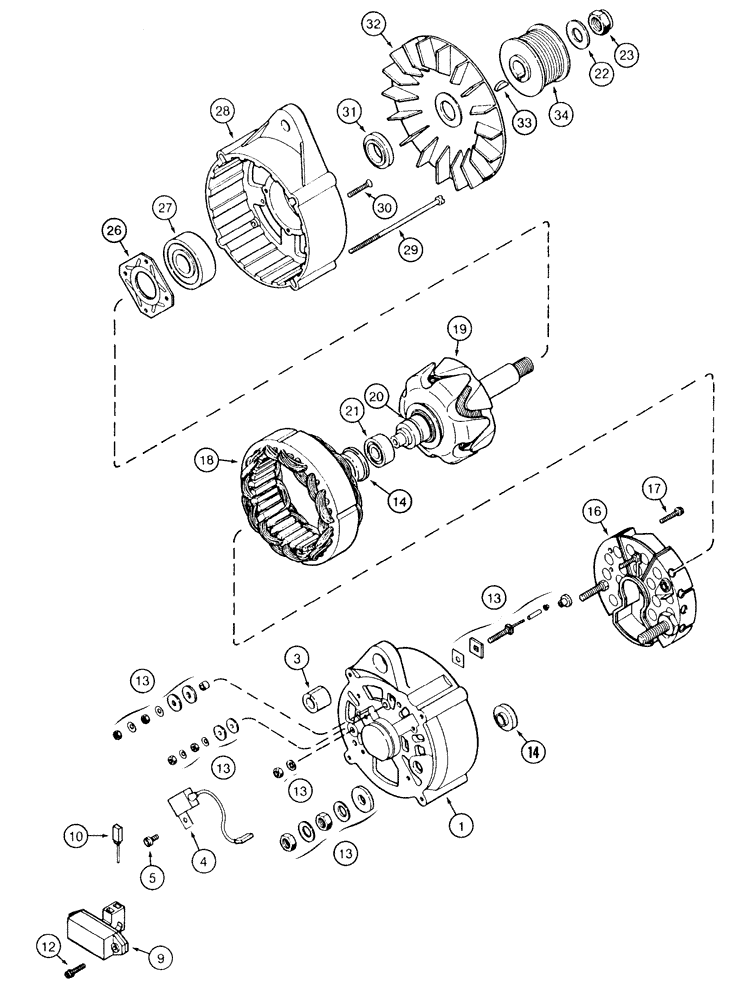

Запчасти Case 9040 (4-02) - ALTERNATOR ASSEMBLY, 65 AMPERE - 24 VOLT (04) - ELECTRICAL SYSTEMS

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ALTERNATOR ASSEMBLY - 24 volt, 65 ampere, Bosch No.0 120 468 054, type N128V 06/65A, see Figure 2-28 for mounting, Includes: Ref. 1 - 33

1шт.

1964860C1R

REMAN-ALTERNATOR

9040 CASE CRAWLER EXCAVATOR, ALTERNATOR ASSEMBLY, 24 volt, 65 ampere (2/93-)

1шт.

1964860C1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297240

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297241

CORE-ALTERNATOR

Return Part Number

1шт.

1

1964731C1

HOUSING

HOUSING - collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

BUSHING - expansion

1шт.

4

3079389R1

CAPACITOR

CAPACITOR - suppression, alternator

1шт.

5

1964969C1

SCREW

SCREW - special, capacitor retaining

1шт.

9

3079392R91

GOVERNOR

REGULATOR ASSEMBLY - voltage, Includes: Ref. 10

1шт.

10

1964968C1

COMMUTATOR BRUSH

BRUSH - alternator

1шт.

12

A186194

SCREW,M4 x 18mm

SCREW, hex flange, special, voltage regulator retaining

2шт.

13

1964738C1

REPAIR KIT

KIT, REPAIR, Terminal hardware

1шт.

14

1546477C1

SLEEVE

RING - rear bearing

1шт.

16

1964965C1

RECTIFIER

BRIDGE - rectifier

1шт.

17

A187504

SCREW

BOLT - hex flange, special, with washer, rectifier bridge retaining

2шт.

18

1964966C1

STATOR

STATOR - alternator

1шт.

19

1964964C1

ROTOR

ROTOR - alternator

1шт.

20

3079410R1

RING

RING - collector

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

BEARING - ball

1шт.

22

495-21063

WASHER,9/16"

WASHER - flat, 5/8 x 1-15/32 x 7/64 inch

1шт.

23

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF

1шт.

26

1964727C1

PLATE

PLATE - bearing retaining

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

BEARING - ball, drive end

1шт.

28

1964725C1

HOUSING

HOUSING - drive end

1шт.

29

1964748C1

SCREW

BOLT - fillister head, special, alternator, retaining

4шт.

30

1964750C1

SCREW

SCREW - machine, flat head, special, retaining

4шт.

31

1964729C1

SPACER

SPACER - ring

1шт.

32

1964736C1

FAN

FAN - alternator

1шт.

33

NSS

NOT SOLD SEPARAT

KEY - pulley retainer

1шт.

34

J919391

PULLEY

PULLEY - drive, alternator

1шт.

35

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Fan Drive, Not Shown

1шт.
