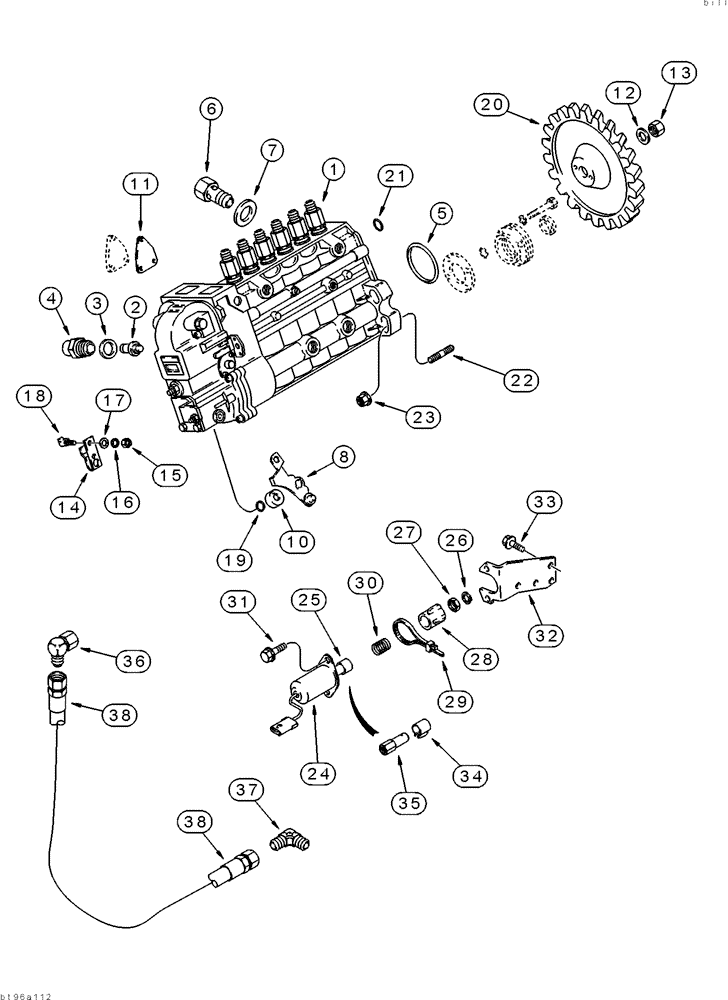

Запчасти Case 9040 (3-13A) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, ENGINE SERIAL NUMBER 44866361 AND AFTER (03) - FUEL SYSTEM

JR921106

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, for service order item 1, J921106 pump

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J921106

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 19

1шт.

If J924728 pump assembly is ordered for engines prior to Engine Serial Number 44866361, item 8, J910979 lever on Figure 3-12 must be retained for service.

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

6

J912886

VALVE

- overflow, bolt

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J923230

LEVER

- pump shutoff

1шт.

If J924728 pump assembly is ordered for engines prior to Engine Serial Number 44866361, item 8, J910979 lever on Figure 3-12 must be retained for service.

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

- mounting

1шт.

12

A77775

LOCK WASHER

- lock

1шт.

13

A41852

LOCK NUT

- hex, self-locking

1шт.

14

1808728C1

LEVER

- throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special

1шт.

20

J912614

GEAR

- fuel pump

1шт.

21

J916284

O-RING

- sealing, fuel injection pump, fuel pump to gear housing

1шт.

22

J915036

STUD

- pump mounting, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

24

J928161

SOLENOID

SOLENOID - fuel shutoff, 24 volt, Includes: Ref. 25 - 30, 34 and 35

1шт.

25

A77807

SET

KIT - plunger, ball socket and clip, no longer available, order items 34 and 35

1шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF, jam

1шт.

28

J925171

BOOT

- protective, plunger

1шт.

29

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

30

J923887

SPRING

- return, plunger

1шт.

31

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Special Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

32

J923254

SUPPORT

BRACKET - solenoid mounting

1шт.

33

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

34

J923885

SPRING

CLIP - spring

1шт.

35

J928173

BALL JOINT

SOCKET - ball joint

1шт.

36

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

37

J915172

FITTING

ELBOW - 90 degree, 7/16-20 straight thread x 1/8 inch PT

1шт.

38

J906747

HOSE,6.35mm ID x 508mm L

1шт.
