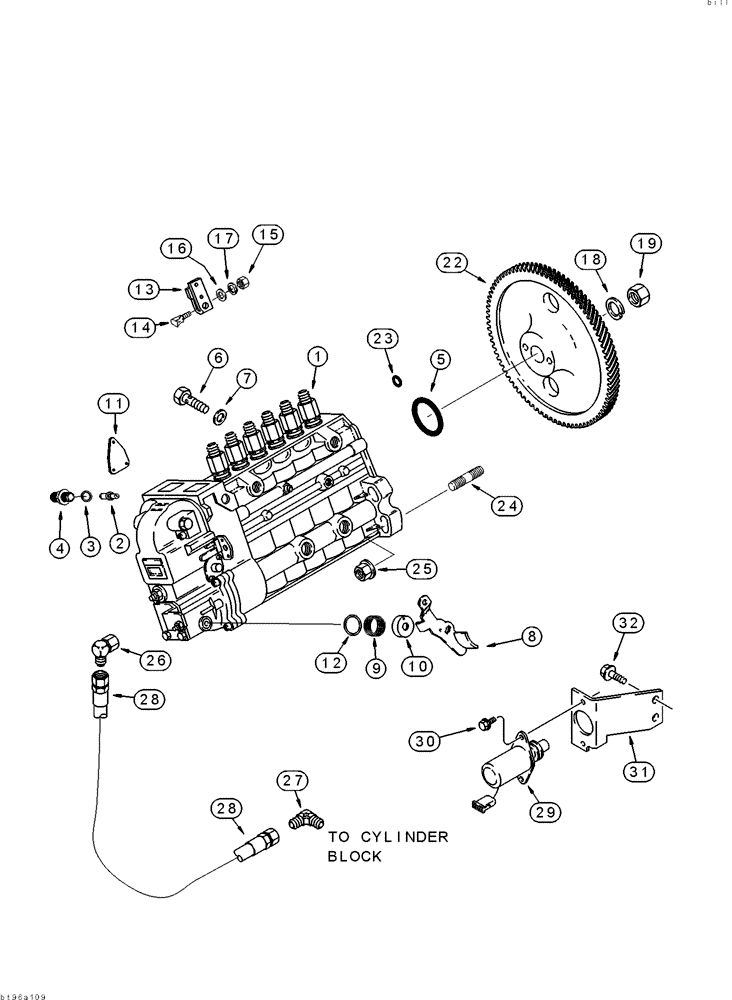

Запчасти Case 9040 (3-12) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44866361 (03) - FUEL SYSTEM

JR920813

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order item 1, J920813 pump assembly for service

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J920813

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 19

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Replaces 933222R1 washer M18 x 24 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

6

J912886

VALVE

- overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

- pump shutoff

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

- mounting, pump, replaces A46322 gasket

1шт.

12

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special, shut-off shaft

1шт.

13

1808728C1

LEVER

- throttle control

1шт.

14

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

15

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10, Replaces 1806312C1 nut

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

18

A77775

LOCK WASHER

- lock

1шт.

19

A41852

LOCK NUT

- hex, self-locking

1шт.

22

J912614

GEAR

- fuel pump

1шт.

23

J916284

O-RING

- sealing, fuel injection pump

1шт.

24

J915036

STUD

- pump mounting, 55 mm (2-5/32 in)

4шт.

25

J902662

FLANGE NUT

- hex flange, 10 mm, fuel pump to timing gear housing

4шт.

26

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

27

J915172

FITTING

ELBOW - 90 degree, 7/16-20 straight thread x 1/8 inch PT, pump lubrication

1шт.

28

J906747

HOSE,6.35mm ID x 508mm L

Lubrication 508.00 mm, SAE 45

1шт.

29

J921980

SOLENOID

SOLENOID - fuel shutoff, 24 volt, replaces J918601 solenoid

1шт.

30

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

31

J916142

SUPPORT

BRACKET - solenoid mounting

1шт.

32

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
