Запчасти Case 9040 (3-10) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE (03) - FUEL SYSTEM

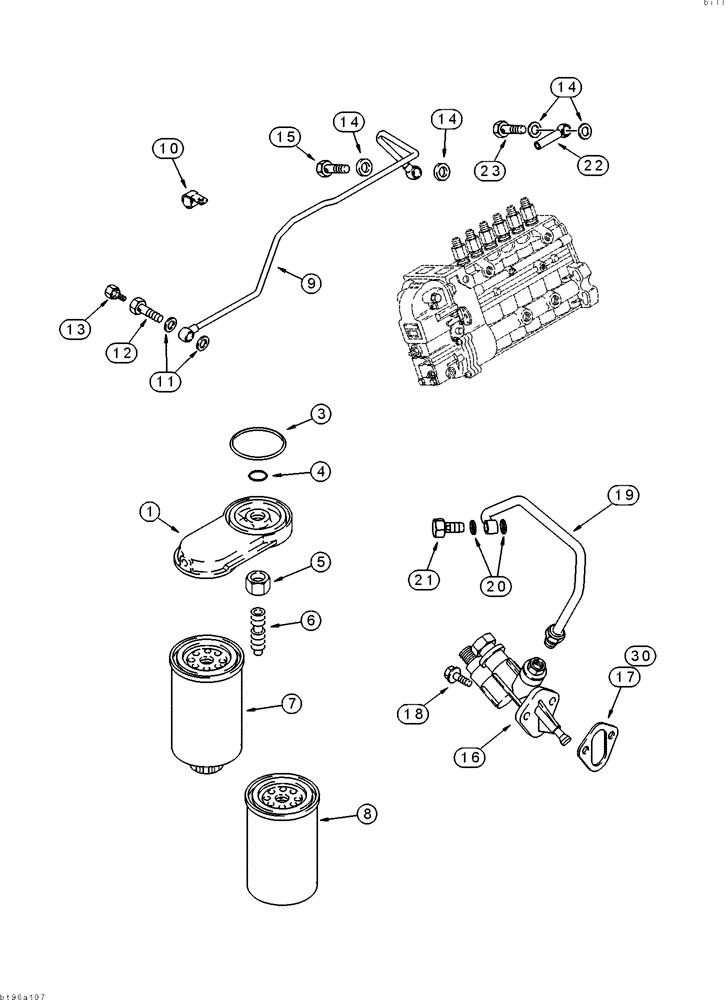

Схема запчастей Case 9040 - (3-10) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE (03) - FUEL SYSTEM
14
1
20
16
3
13
30
6
17
14
18
7
14
23
8
4
9
19
10
11
22
21
15
12
5

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, adapter

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, replaces J903845 adapter

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE - fuel supply

1шт.

10

J914711

CLIP

CLAMP - P-type

1шт.

11

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

15

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

16

J917998

PUMP

- fuel lift and transfer, see J926764 repair kit below

1шт.

17

J923054

GASKET

- mounting, fuel transfer pump, replaces J914304 gasket

1шт.

18

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

19

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

20

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

21

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm, special

1шт.

22

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

23

REF

INSTRUCTION

VALVE - bolt, overflow, see item 6, figure 3-13A

1шт.

24

J926764

GASKET KIT

KIT - transfer pump repair, replaces J920544 and J923615 kit, not shown, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

30

J923054

GASKET

- mounting, fuel transfer pump, replaces J914304 gasket

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.

Выбрано товаров: 31
