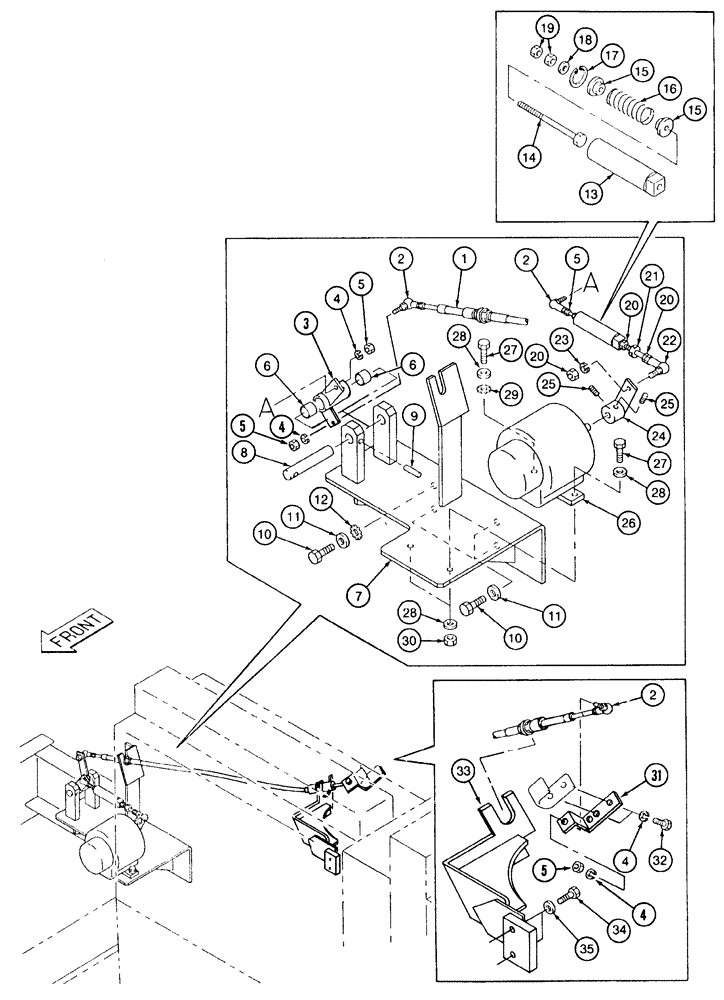

Запчасти Case 9040 (3-07A) - THROTTLE AND FUEL SHUTOFF CONTROLS, P.I.N. DAC0400004 AND AFTER (03) - FUEL SYSTEM

1

156926A1

CABLE PULLING GRIP

CABLE - throttle control

1шт.

2

157155A1

BALL JOINT

JOINT - ball, throttle cable

3шт.

3

158635A1

LINK

BELLCRANK - throttle control

1шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

5шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

6

151272A1

BUSHING

- bellcrank

2шт.

7

158253A1

BRACKET

- mounting, throttle motor

1шт.

8

158636A1

PIN

- pivot, bellcrank retaining

1шт.

9

738-1632

LOCK PIN,M6 x 32, Slotted

PIN - roll, 6 x 32 mm

1шт.

10

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

4шт.

11

150811A1

WASHER

- flat, special, 12 mm

4шт.

12

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER - internal tooth lock, 12 mm

1шт.

150535A1

SPRING

ASSEMBLY - cable return, Includes: Ref. 13 - 19

1шт.

13

150537A1

TUBE

HOUSING - spring

1шт.

14

150540A1

BOLT,Hex, M6 x 95mm, Spcl

BOLT - hex, special

1шт.

15

150453A1

COLLAR CLAMP

GUIDE - spring

2шт.

16

150543A1

SPRING

- cable return

1шт.

17

800-2122

SNAP RING,M22, Internal

RING, SNAP, M22, Int

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

3шт.

21

156925A1

ROD

- threaded, throttle compression spring

1шт.

22

151963A1

END

CONNECTOR - cable end

1шт.

23

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

24

158252A1

LEVER

BELLCRANK - throttle control, at motor

1шт.

25

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

2шт.

26

152920A1

MOTOR

- throttle

1шт.

152920A1R

REMAN-ELECTRIC MOTOR

9040 P.I.N. DAC0400004 AND AFTER (2/93-)

1шт.

152920A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

2шт.

28

150594A1

WASHER

WASHER - flat, 10.5 x 18 x 3.2 mm

4шт.

29

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

31

151518A1

CONTROL LEVER

LEVER - control

1шт.

32

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

33

158637A1

BRACKET

- mounting, throttle cable

1шт.

34

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

2шт.

35

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.
