(3-04) - FUEL LINES

Запчасти Case 9040 (3-04) - FUEL LINES (03) - FUEL SYSTEM

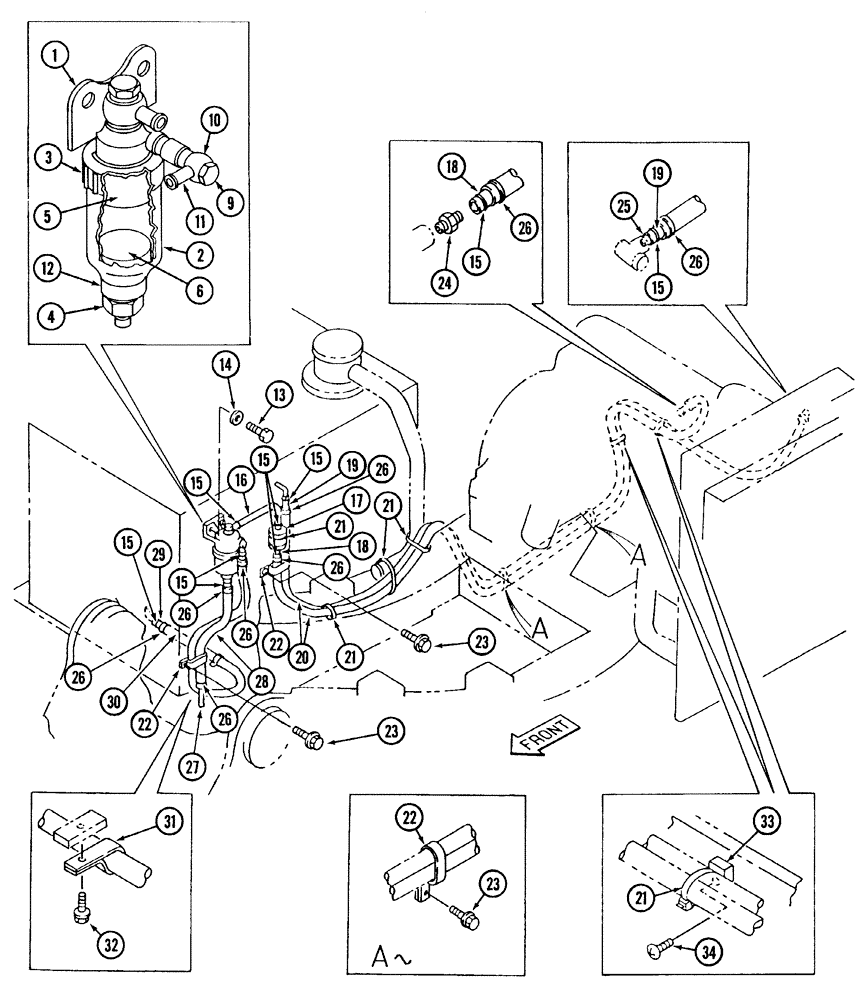

Схема запчастей Case 9040 - (3-04) - FUEL LINES (03) - FUEL SYSTEM
21
19
15
26
15
27
22
6
16
4
10
26
13
26
23
18
15
25
23
21
1
22
26
30
15
23
22
11
3
21
26
15
18
2
26
26
31
15
20
32
14
17
12
9
34
21
15
33
29
24
26
5
28
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

151071A1

WATER TRAP

SEPARATOR ASSEMBLY - water, from fuel, Includes: Ref. 1 - 12

1шт.

1

156289A1

FILTER HEAD

COVER - water separator

1шт.

2

156240A1

FILTER BOWL

HOUSING - water separator

1шт.

3

156184A1

RING NUT

NUT - ring-type

1шт.

4

155467A1

PLUG, DRAIN

PLUG - drain

1шт.

5

156291A1

PLATE

- baffle

1шт.

6

156290A1

FLOAT

INDICATOR - floating

1шт.

7

155175A1

O-RING

- separator

1шт.

8

155174A1

O-RING

- separator, not shown

1шт.

9

156185A1

BANJO BOLT

BOLT - special, fuel lines

2шт.

10

155297A1

GASKET

GASKET - banjo fitting

4шт.

11

156292A1

FITTING

- banjo-type

2шт.

12

155353A1

PLUG

CAP - drain

1шт.

13

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

14

153232A1

WASHER

- special

2шт.

15

153043A1

COLLAR

CLAMP - wire-type, hose

9шт.

16

157590A1

TUBE,9.5 mm ID, 14 mm OD, 300 mm Length

- vinyl, separator to inline fuel filter

1шт.

17

D139225

FILTER, FUEL

FILTER - fuel, in-line (replaces D145357)

1шт.

18

150614A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 4000 mm Length

TUBE - vinyl, 9.5 ID x 4000 mm, at in-line filter

1шт.

19

150618A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 4000 mm Length

TUBE - vinyl, 9.5 ID x 4000, return

1шт.

20

151563A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 149-5/8 inch (3800 mm) long

2шт.

21

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

7шт.

22

150585A1

CLAMP

- P-type, tube

4шт.

23

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special, flange

4шт.

24

151659A1

NIPPLE, LUBE

ADAPTER - straight, special, fuel line

1шт.

25

151470A1

SPACER

- rubber

1шт.

26

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

8шт.

27

150346A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 550 mm Length

TUBE - vinyl, 9.5 ID x 550 mm, drain

1шт.

28

150770A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 15-3/4 inch (400 mm) long

1шт.

29

150254A1

PLASTIC-RUBBER TUBE

TUBE - return

1шт.

30

150774A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 39-3/8 inch (1000 mm) long, return tube

1шт.

31

150578A1

CLAMP

- P-type, return tube

1шт.

32

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special, flange

1шт.

33

150860A1

COLLAR

BRACKET - support, hose

2шт.

34

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

2шт.
