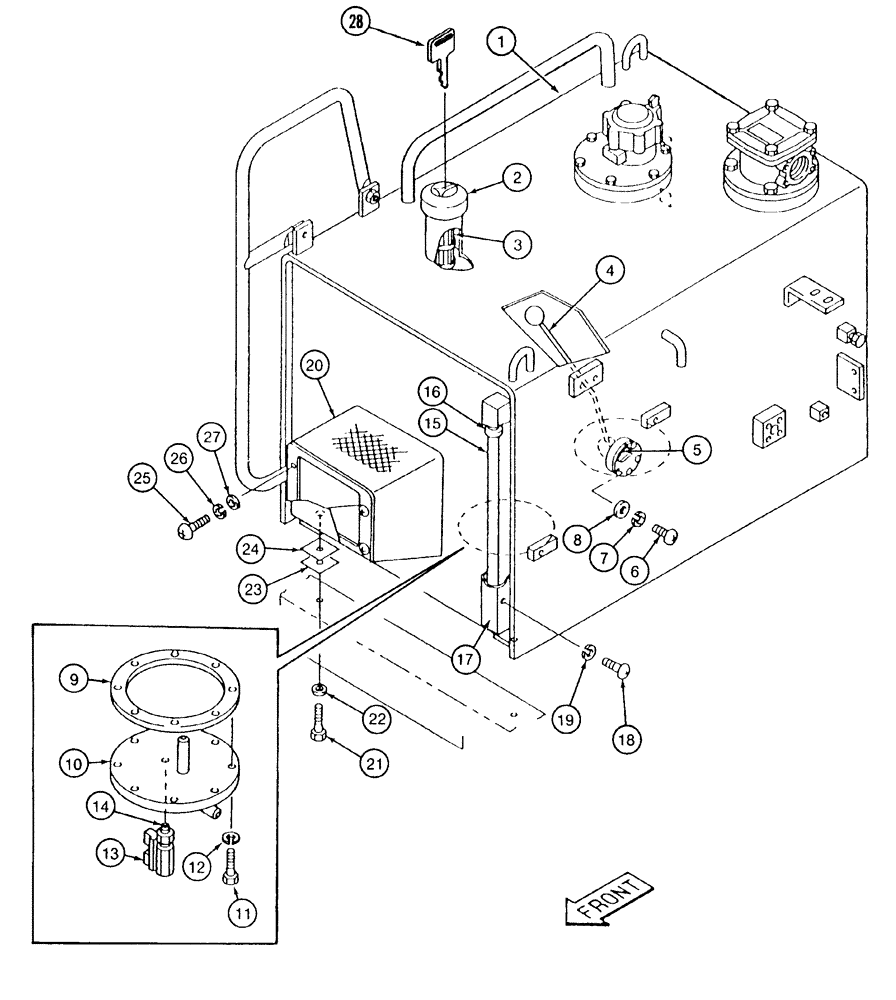

Запчасти Case 9040 (3-02) - FUEL TANK (03) - FUEL SYSTEM

1

158886A1

TANK

- combination fuel and hydraulic oil, see Figure 8-02 for hydraulic tank components, replaces 153377A1 reservoir

1шт.

Filler neck for fuel tank = 150605a1. 8/26/97

1шт.

2

150492A1

LOCKABLE FUEL CAP

CAP - fuel tank, Includes: Ref. 2A

1шт.

2a

163804A1

GASKET

- special, not shown

1шт.

3

150146A1

FILTER

- fuel tank

1шт.

4

152111A1

SENSOR

- fuel level

1шт.

5

152591A1

GASKET,2mm Thk

- fuel level sender

1шт.

6

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

- machine, pan Phillips, 5 - 0.8 x 12 mm

5шт.

7

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

5шт.

8

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

9

151322A1

GASKET,3mm Thk

- cover, drain

1шт.

10

151320A1

COVER

- access, fuel tank drain

1шт.

11

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

12

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

8шт.

13

158923A1

DRAIN VALVE

VALVE - fuel tank

1шт.

14

150847A1

HYD CONNECTOR

CONNECTOR - straight, fuel tank to drain valve

1шт.

15

150273A1

PLASTIC-RUBBER TUBE,10 mm ID, 15 mm OD, 595 mm Length

TUBE - vinyl, 10 ID x 595 mm, sight gauge

1шт.

16

153043A1

COLLAR

CLAMP - wire-type, tube

2шт.

17

152722A1

COVER

- tube end

1шт.

18

840-1812

SCREW,Pan, M8 x 12mm, Cl 4.8

- machine, pan Phillips, 8 - 1.25 x 12 mm

2шт.

19

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

20

153386A1

COVER

- tank

1шт.

21

626-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 40 mm, class 10.9

4шт.

22

150996A1

WASHER

- special

4шт.

23

153208A1

SHIM

- cover

1шт.

24

153208A1

SHIM

- cover

1шт.

25

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

6шт.

26

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

28

150979A1

IGNITION KEY

KEY - ignition switch, used with fuel cap lock

1шт.

REF. 28 (150979A1 KEY) COMES AS A SET OF 2 KEYS. IF YOU ORDER 1 PC YOU WILL GET A SET OF 2. NAPO TECH 7/1/99

1шт.
