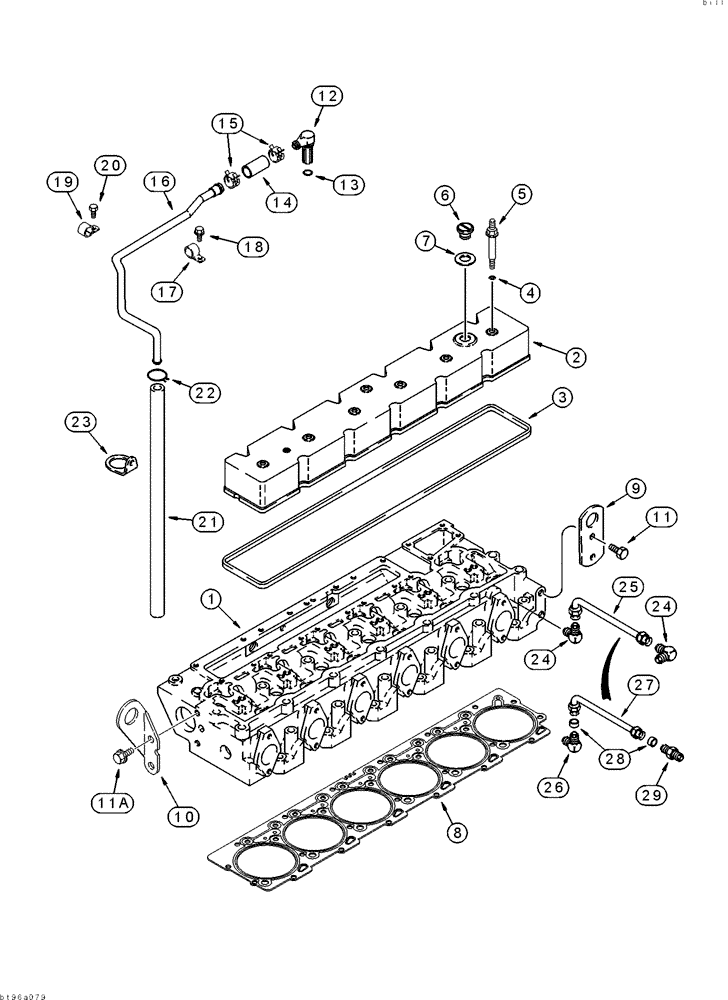

Запчасти Case 9040 (2-26) - CYLINDER HEAD COVER, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, parts list Figure 2-30

1шт.

2

J927907

VALVE COVER

COVER - valve, replaces J907734 cover

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, sealing

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex flange cap, special, valve cover to cylinder head

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

8

J928168

GASKET

- cylinder head, standard, replaces J921850 gasket

1шт.

8

J928180

GASKET

- cylinder head, 0.25 mm thicker, replaces J921852 gasket

1шт.

8

J928181

GASKET

- cylinder head, 0.50 mm thicker, replaces J921853 gasket

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, Front lifting bracket to cylinder head

2шт.

11a

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, rear lifting bracket to cylinder head

2шт.

12

J920497

ELBOW

CONNECTOR - 90 degree, breather vent, valve cover

1шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Connector to valve cover -115, 70 Duro, .674" ID x .103" Thk

1шт.

14

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector 19.05 mm ID x 51.00 mm

1шт.

15

J918163

CLIP

CLAMP - spring type, hose to breather tube and vent connection

2шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Breather tube to valve cover M15.88, M9.52 Bolt Hole

1шт.

18

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm, breather tube clip to valve cover

1шт.

19

A77538

CLIP

CLAMP - P-style, breather tube to cylinder head

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

21

1981644C1

HOSE

- 43-5/16 inch (1100 mm) long, breather tube end

1шт.

22

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP, HOSE, , Hose to Breather Tube #18, 1 1/8", Spring

1шт.

23

J909670

CLIP

- retaining, hose to flywheel housing, use one J902735 bolt, shown on Figure 2-40, item 8

1шт.

24

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT, vent tube to thermostat housing, prior to Engine Serial Number 44808257, see Figure 2-28

1шт.

25

J918167

TUBE,6.35 mm OD x 117.5 mm L

- vent, air, prior to Engine Serial Number 44808257

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT, Engine Serial Number 44808257 and after

1шт.

27

J924589

TUBE,6.35 mm OD x 112.6 mm L

- vent, air, Engine Serial Number 44808257 and after

1шт.

28

222-153

SLEEVE,1/4" Tube

2шт.

29

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/8 inch PT, Engine Serial Number 44808257 and after

1шт.
