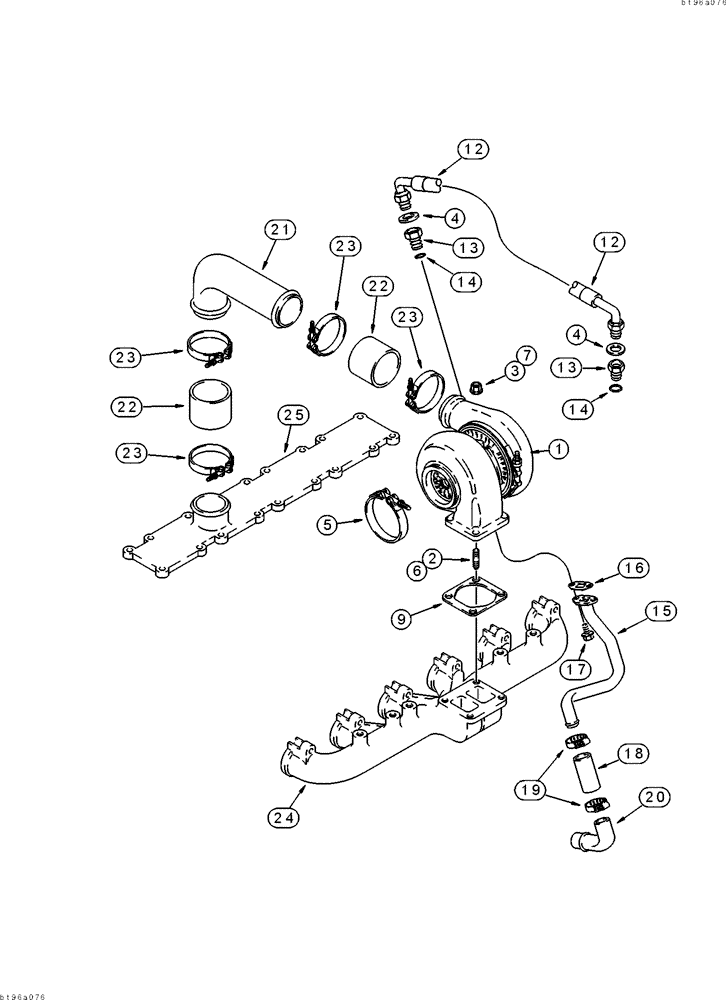

Запчасти Case 9040 (2-18) - TURBOCHARGER SYSTEM, 6T-830 ENGINE (02) - ENGINE

1

J919199

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, parts list Figure 2-20

1шт.

1

JR802303

REMAN-TURBOCHARGER

9040, Reman For New P/N J919199

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J905417

STUD

STUD - turbocharger mounting, used with Ref. 3 nut only

4шт.

3

J901961

NUT

NUT - hex, special, 10 mm - 1.25, used with Ref. 2 stud only

4шт.

4

222-993

GASKET,3/8 Tube, Fl, Copper

GASKET, 3/8 Tube, Fl, Copper

2шт.

5

A170807

CLAMP,102mm ID

CLAMP, retaining, special, turbocharger to exhaust system

1шт.

6

J818823

STUD

STUD - turbocharger mounting, used with Ref. 7 nut only

4шт.

7

J818824

FLANGE NUT

NUT - hex flange, special, 10 mm - 1.5, used with Ref. 6 stud only

4шт.

9

J911941

GASKET

GASKET - mounting, turbocharger

1шт.

12

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply

1шт.

13

J919687

HYD CONNECTOR

ADAPTER - female hex, special, supply hose

2шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

15

J917417

TUBE,22.23 mm OD x 281, 141.1 mm L

TUBE - drain, oil, upper

1шт.

16

J914388

GASKET

GASKET - turbo oil drain tube

1шт.

17

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

2шт.

18

J903745

LARGE HOSE

HOSE,LARGE HOSE - 3 inch (76 mm) long, drain, tube

1шт.

19

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, lower

1шт.

21

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

TUBE - air, crossover

1шт.

22

J916529

TRANSMISSION SLEEVE

HOSE - 3 inch (76 mm) long, crossover tube

2шт.

23

J924386

COLLAR CLAMP

CLAMP - adjustable, special

4шт.

24

J929779

MANIFOLD

MANIFOLD - exhaust, see Figure 2-16 for mounting parts

1шт.

25

J906737

COVER ASSY

COVER - intake manifold, see Figure 2-16 for mounting parts

1шт.
