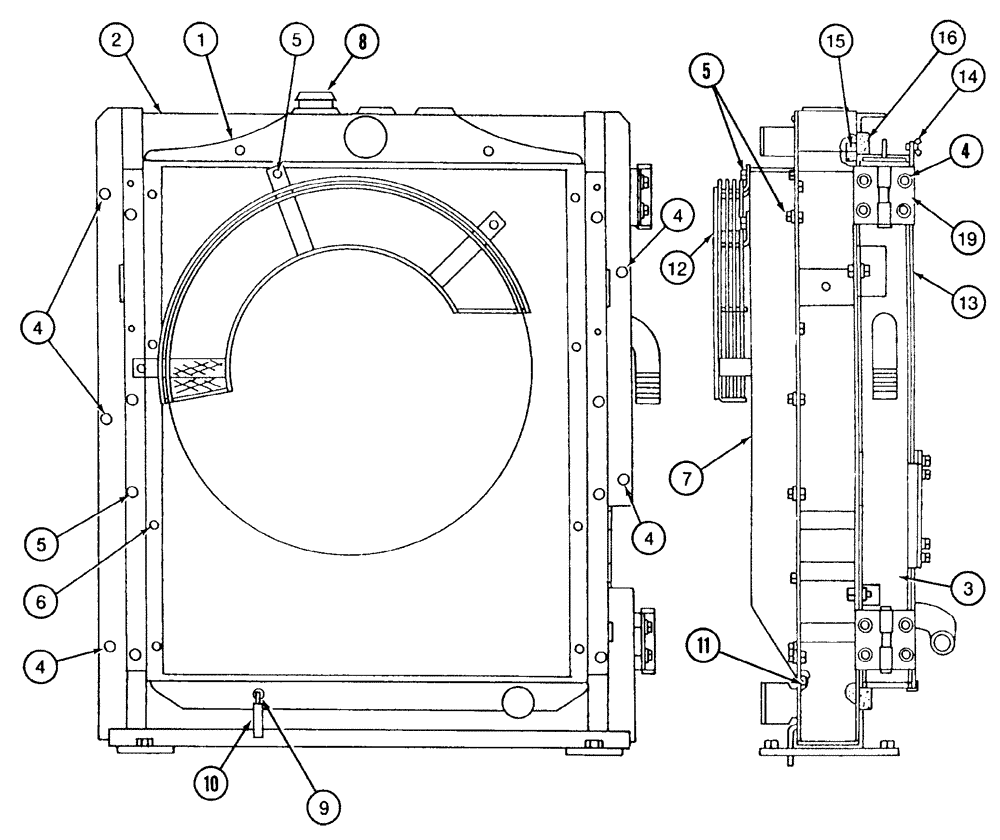

Запчасти Case 9040 (2-11A) - RADIATOR ASSEMBLY, P.I.N. DAC0400004 AND AFTER (02) - ENGINE

158622A1

RADIATOR

ASSEMBLY - engine and transmission oil cooling, Includes: Ref. 1 - 19

1шт.

1

158866A1

RADIATOR

CORE - engine cooling

1шт.

2

158867A1

FRAME - radiator

1шт.

3

158865A1

OIL

CORE - transmission oil cooling

1шт.

4

158869A1

BOLT

- special

13шт.

5

158870A1

BOLT

BOLT - special, with shakeproof washer

11шт.

6

156599A1

BOLT

BOLT - special, with shakeproof washer

8шт.

7

158868A1

COVER

SHROUD - radiator

1шт.

8

156601A1

PLUG

CAP - radiator

1шт.

9

156602A1

COCK

VALVE - drain, radiator

1шт.

10

156603A1

HOSE

- radiator drain

1шт.

11

156604A1

PACKING

PAD - insulation

2шт.

12

158155A1

GUARD

- fan

1шт.

13

151399A1

PROTECTOR

SCREEN - radiator

1шт.

14

156606A1

BOLT,Wing, M6

BOLT - wing type, special, screen retaining

2шт.

15

156607A1

GASKET

PAD - insulation

2шт.

16

156420A1

PACKING

PAD - insulation

4шт.

19

156419A1

HINGE

- radiator

2шт.
