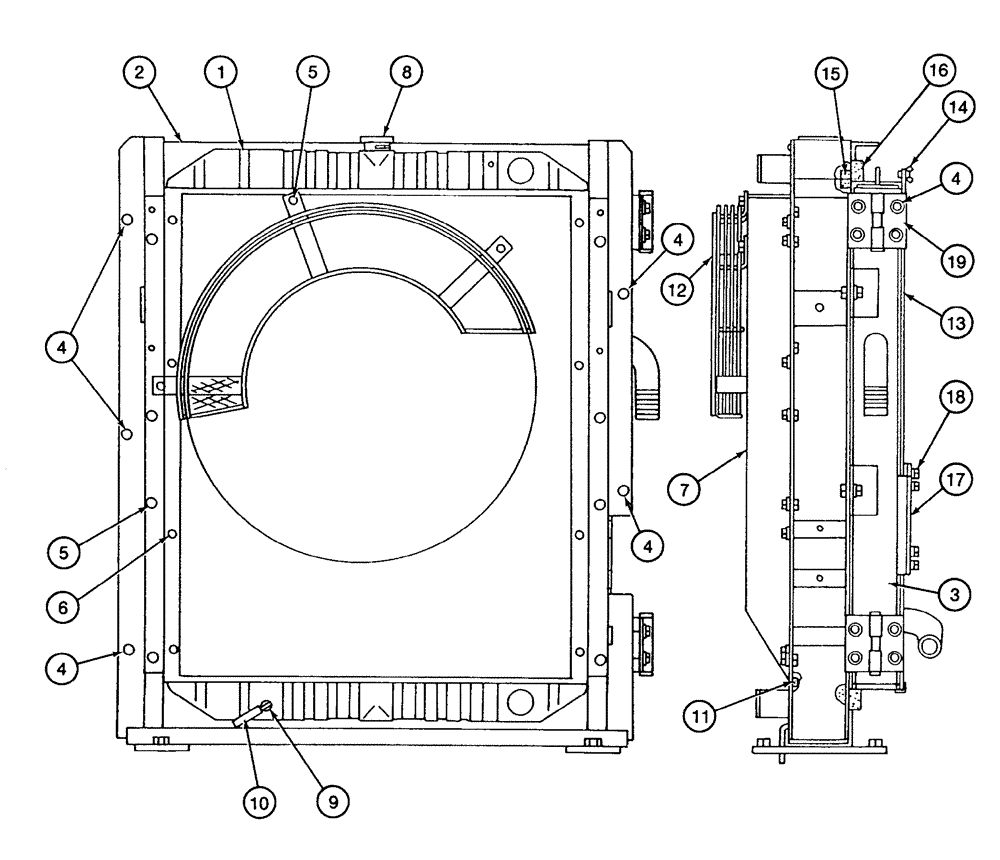

Запчасти Case 9040 (2-10) - RADIATOR ASSEMBLY, PRIOR TO P.I.N. DAC0400004 (02) - ENGINE

151395A1

RADIATOR

ASSEMBLY - engine, transmission oil cooling, Includes: Ref. 1 - 19

1шт.

1

156433A1

RADIATOR

CORE - engine cooling

1шт.

2

156434A1

FRAME

- radiator

1шт.

3

156435A1

OIL

CORE - transmission oil cooling

1шт.

4

156416A1

BOLT (MACHINE)

BOLT - special

13шт.

5

158870A1

BOLT

BOLT - special, with shakeproof washer

11шт.

6

156599A1

BOLT

BOLT - special, with shakeproof washer

8шт.

7

156431A1

SHROUD

- radiator

1шт.

8

156601A1

PLUG

CAP - radiator

1шт.

9

156602A1

COCK

VALVE - drain, radiator

1шт.

10

156603A1

HOSE

- radiator drain

1шт.

11

156604A1

PACKING

PAD - insulation

2шт.

12

151210A1

ELECTRICAL WIRE

GUARD - fan

1шт.

13

151399A1

PROTECTOR

SCREEN - radiator

1шт.

14

156606A1

BOLT,Wing, M6

BOLT - wing type, special, screen retaining

2шт.

15

156607A1

GASKET

PAD - insulation

2шт.

16

156420A1

PACKING

PAD - insulation

4шт.

17

156726A1

PLATE

- panel

2шт.

18

156437A1

SPECIAL BOLT

BOLT - special, with shakeproof washer

4шт.

19

156419A1

HINGE

- radiator

2шт.
