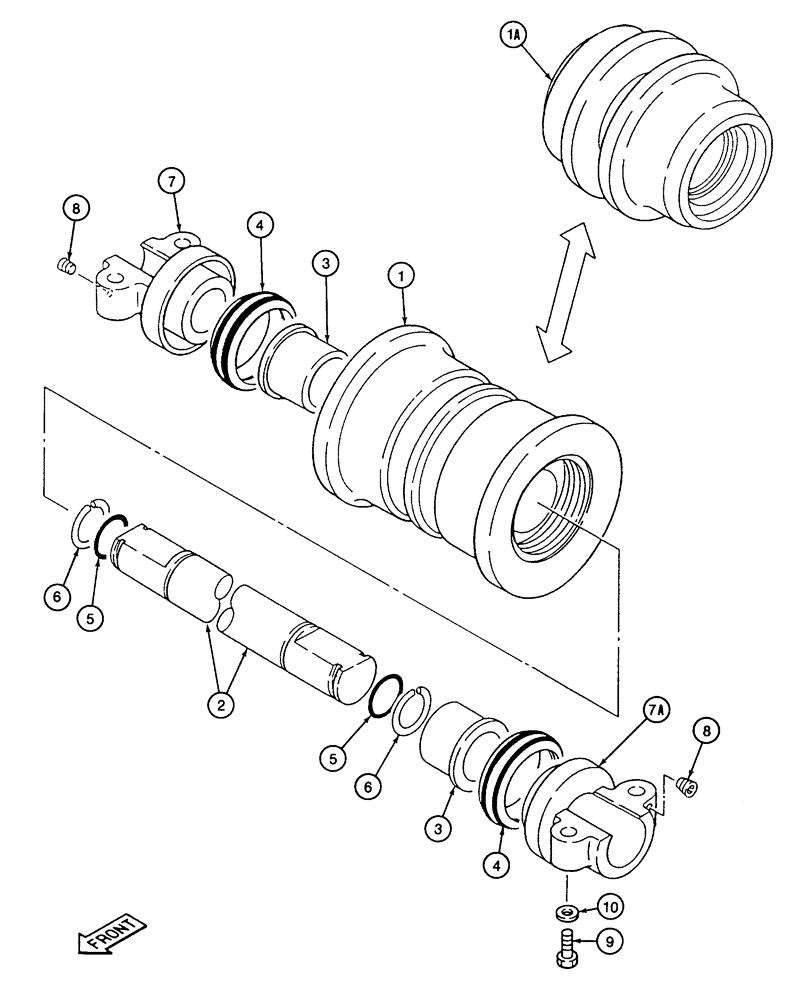

Запчасти Case 9040 (5-12) - TRACK ROLLERS (11) - TRACKS/STEERING

151131A1

TRACK ROLLER

ROLLER ASSEMBLY - with outer flanges, Includes: Ref. 1 - 8

10шт.

151137A1

TRACK ROLLER

ROLLER ASSEMBLY - with inner flanges, Includes: Ref. 1 - 8

8шт.

1

151138A1

ROLLER, TRACK

HUB - track roller, outer flanges

1шт.

1a

151139A1

ROLLER, TRACK

HUB - track roller, inner flanges

1шт.

2

151149A1

SHAFT

- roller

1шт.

3

151122A1

BUSHING

- roller

2шт.

4

151126A1

SEAL

- face, track roller, includes two rings and two seals

2шт.

5

154657A1

O-RING

- shaft

2шт.

6

151152A1

LOCKING RING

RING - retaining, shaft

2шт.

7

151142A1

COLLAR

BRACKET - mounting, track roller, right-hand

1шт.

7a

151146A1

COLLAR

BRACKET - mounting, track roller, left-hand

1шт.

8

150821A1

PLUG

- port

2шт.

9

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

72шт.

10

150991A1

WASHER

- flat, special, 16 mm

72шт.
