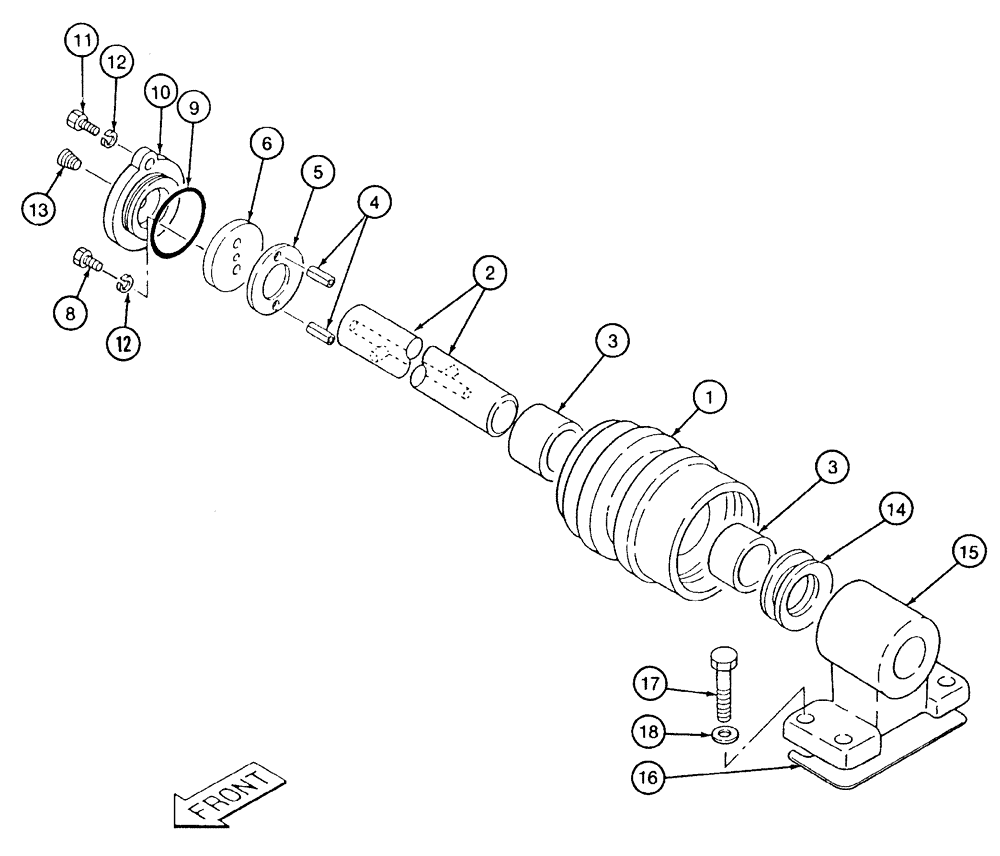

Запчасти Case 9040 (5-10) - TRACK CARRIER ROLLER (11) - TRACKS/STEERING

151264A1

ROLLER

ASSEMBLY - carrier, Includes: Ref. 1 - 15

4шт.

1

151265A1

ROLLER

- carrier, track

1шт.

2

151277A1

SHAFT

- carrier roller

1шт.

3

151292A1

BUSHING

- roller

2шт.

4

738-5514

LOCK PIN,M5 x 14, Slotted

PIN roll, 5 x 14 mm

2шт.

5

151296A1

THRUST WASHER

WASHER - thrust

1шт.

6

151299A1

PLATE

- thrust

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

9

154655A1

O-RING

- cover

1шт.

10

151287A1

COVER

- end, carrier roller

1шт.

11

150727A1

BOLT,Hex, M10 x 30mm

- special

3шт.

12

892-11010

LOCK WASHER,M10

5шт.

13

152654A1

PLUG

- oil, end cover

1шт.

14

150359A1

SEAL

- face, carrier roller

1шт.

15

151281A1

BRACKET

- mounting, carrier roller

1шт.

16

150003A1

HUB

SHIM - bracket height, 0.03 inch (0.8 mm) thick

4шт.

17

626-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

16шт.

18

150991A1

WASHER

- flat, special, 16 mm

16шт.
