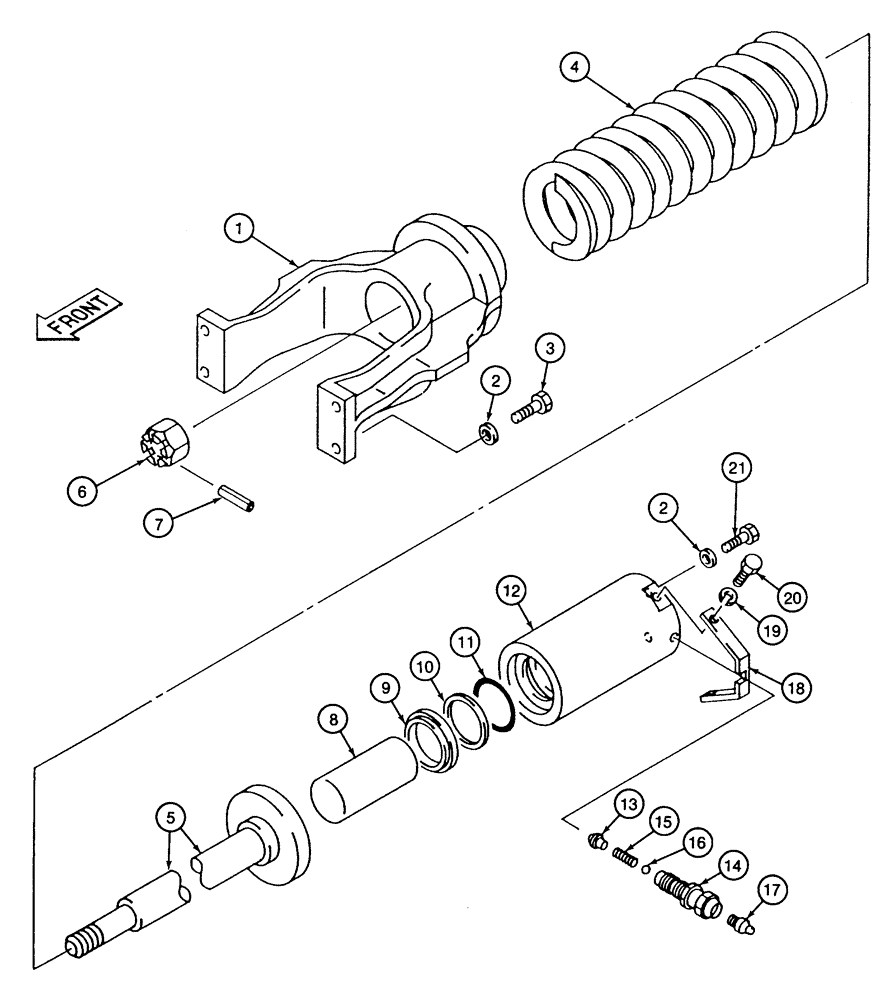

Запчасти Case 9040 (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

151806A1

YOKE

- track adjuster

2шт.

2

150991A1

WASHER

- flat, special, 16 mm

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

4

150679A1

SPRING

- track tension

2шт.

5

151810A1

ROD

GUIDE - tension spring

2шт.

6

825-3056

SLOTTED NUT,M56 x 5.5, Cl 8

NUT - hex slotted, 56 mm - 5.5

2шт.

7

738-1895

LOCK PIN,M8 x 95, Slotted

PIN - roll, 12 x 60 mm

2шт.

151812A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - track adjuster, Includes: Ref. 8 - 20

2шт.

8

151817A1

PISTON ROD

ROD - piston

1шт.

9

151823A1

SEAL

WIPER - rod

1шт.

10

151828A1

BACK-UP RING

RING - backup, rod seal

1шт.

11

154696A1

O-RING

-

1шт.

12

151821A1

CYLINDER

TUBE - cylinder, track adjuster

1шт.

150107A1

LUBE NIPPLE

VALVE ASSEMBLY - check, track adjuster cylinder, Includes: Ref. 13 - 17

1шт.

13

150120A1

CAP

POPPET - check valve

1шт.

14

150112A1

VALVE SEAT

BODY - check valve

1шт.

15

150115A1

SPRING

- check valve

1шт.

16

150897A1

BALL

- check

1шт.

17

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

18

152171A1

BRACKET

- mounting, check valve

1шт.

19

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

20

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

21

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.
