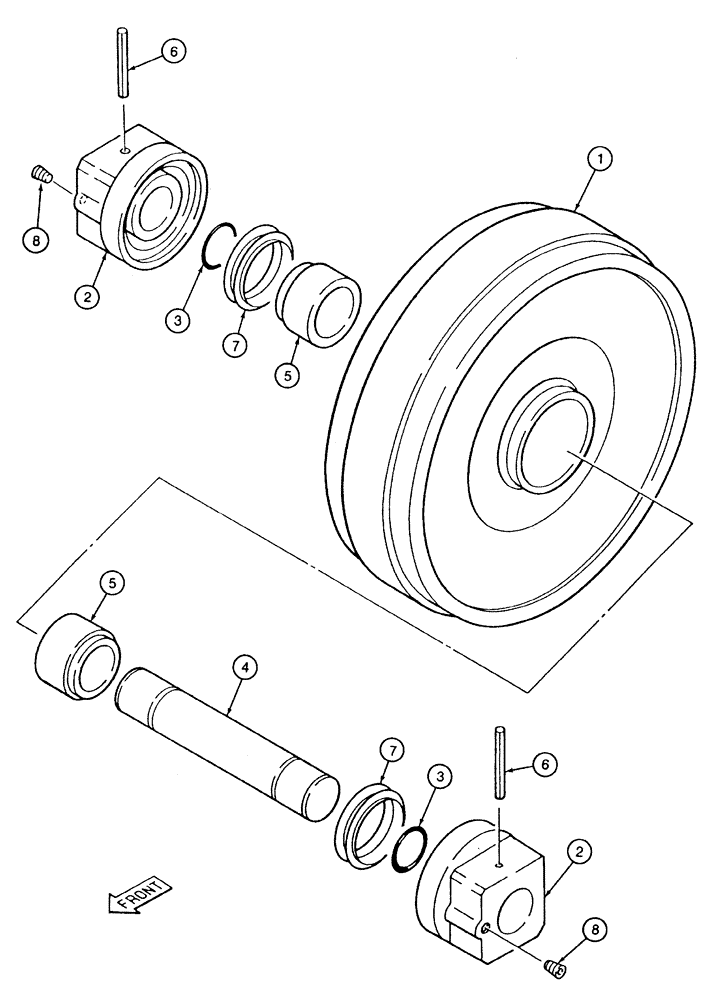

Запчасти Case 9040 (5-06) - TAKE UP ROLLER (11) - TRACKS/STEERING

151838A1

ROLLER ASSY.

ROLLER ASSEMBLY - roller, take up, Includes: Ref. 1 - 8

2шт.

1

151842A1

ROLLER

- take up

1шт.

2

151117A1

HUB

- roller

2шт.

3

154657A1

O-RING

- roller, take up

2шт.

4

151119A1

SHAFT

- roller

1шт.

5

151122A1

BUSHING

- roller

2шт.

6

112538A1

PIN, ROLL

PIN - roll

2шт.

7

151126A1

SEAL

- face

2шт.

8

150821A1

PLUG

- port

2шт.
