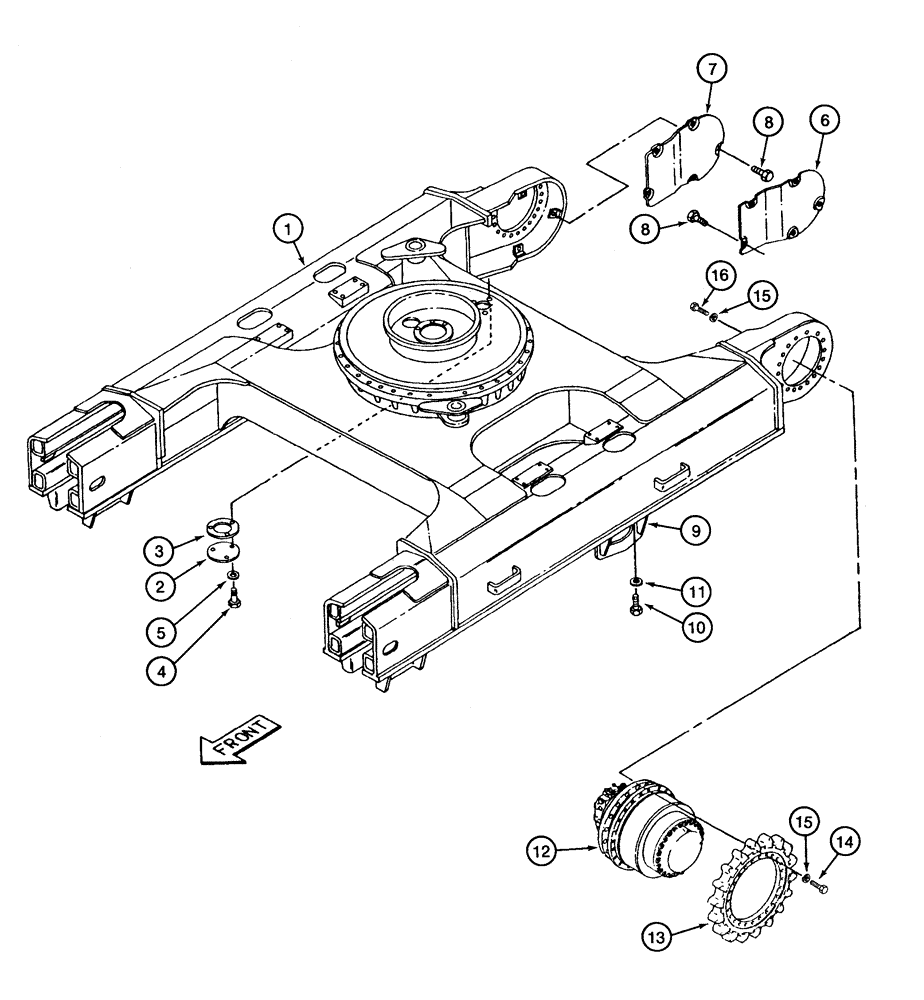

Запчасти Case 9040 (5-03A) - LOWER FRAME AND SPROCKET, TIMBER KING MODELS (11) - TRACKS/STEERING

1

158603A1

FRAME

- track, lower

1шт.

2

150899A1

PLATE

COVER - access

1шт.

3

150896A1

PACKING

GASKET - access cover

1шт.

4

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

3шт.

5

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

3шт.

6

151749A1

COVER

- access

1шт.

7

151745A1

COVER

- access

1шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

10шт.

9

151617A1

GUARD

GUIDE - track

1шт.

10

626-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

11

150991A1

WASHER

- flat, special, 16 mm

66шт.

12

151890A1

MOTOR

ASSEMBLY - track drive

2шт.

13

151112A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

14

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

60шт.

15

150991A1

WASHER

- flat, special, 16 mm

104шт.

16

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

44шт.
