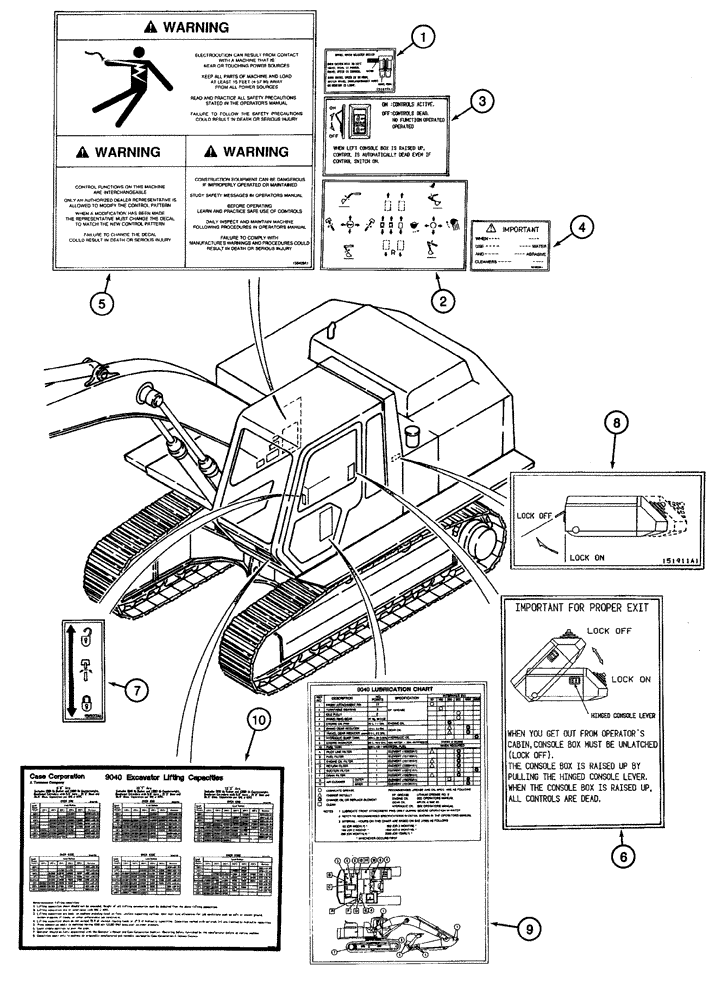

Запчасти Case 9040 (9-82) - DECALS - ENGLISH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

158536A1

DECAL

- travel speed selector switch

1шт.

2

151975A1

DECAL

- control pattern

1шт.

3

151906A1

LABEL

DECAL - control, on - off

1шт.

4

158411A1

DECAL

- Important, when cleaning cab windows

8шт.

5

158410A1

DECAL

- Warning, electrocution can result from contact

1шт.

6

151921A1

LABEL

DECAL - Important for proper exit, lock on/lock off

1шт.

7

151927A1

DECAL

- swing lock

1шт.

8

151911A1

LABEL

DECAL - slide lever, lock on/lock off

1шт.

9

158535A1

DECAL

- lubrication

1шт.

10

156446A1

LABEL

DECAL - lifting capacities, for models with 10 or 11-1/2 ft arm

1шт.

10

158008A1

DECAL

- lifting capacities, Long Reach only, for models with 26 ft arm, not as shown

1шт.
