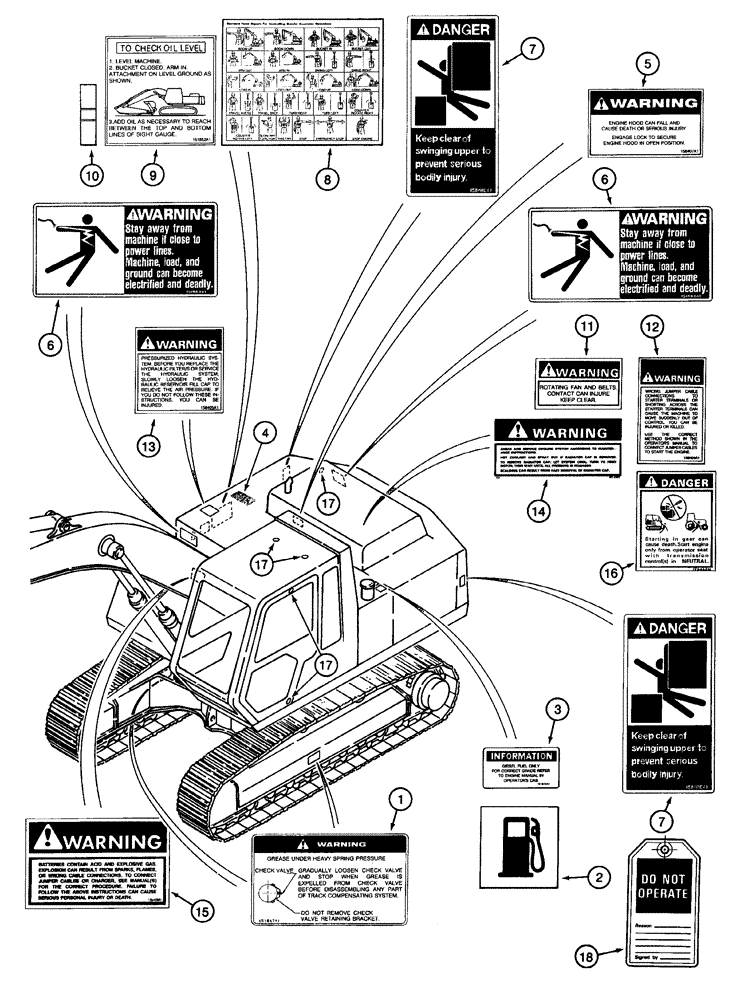

Запчасти Case 9040 (9-80) - DECALS - FRENCH LANGUAGE, WARNING AND DANGER (09) - CHASSIS

1

158283A1

DECAL

- Warning, grease under heavy spring pressure (French)

2шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

2

150104A1

DECAL

- fuel tank

1шт.

3

158274A1

DECAL

- Information, diesel fuel only (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

4

150108A1

ANTI-SKID STRIP

STRIP - adhesive, anti-skid

9шт.

5

158288A1

DECAL

- Warning, engine hood can fall (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

6

158284A1

DECAL

- Warning, stay away from machine if close to power line (French)

2шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

7

158285A1

DECAL

- Danger, keep clear of swinging upper (French)

2шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

8

158270A1

DECAL

- hand signal chart (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

9

158272A1

DECAL

- to check oil level (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

10

156410A1

DECAL

- oil level gauge

1шт.

11

321-4324

DECAL

- Warning, rotating fan and belts (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

12

321-6720

DECAL

- Warning, wrong jumper cable connections to starter terminals (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

13

158290A1

DECAL

- Warning, pressurized hydraulic system (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

14

321-6701

DECAL

- Warning, check and service cooling system (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

15

321-6719

DECAL

- Warning, batteries contain acid and explosive gas (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

16

158287A1

DECAL

- Danger, starting in gear can cause death (French)

1шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

17

151756A1

PLATE WASHER

PLATE - bumper, 2 inch circle

5шт.

This part is included in French language decal kits 158298A1, for models with 10 or 11-1/2 arm, or 132321A1, for Long Reach models with 26 ft arm. See Figure 9-84 for additional French language decals in these kits.

1шт.

18

321-5675

TAG

- do not operate (French)

1шт.
