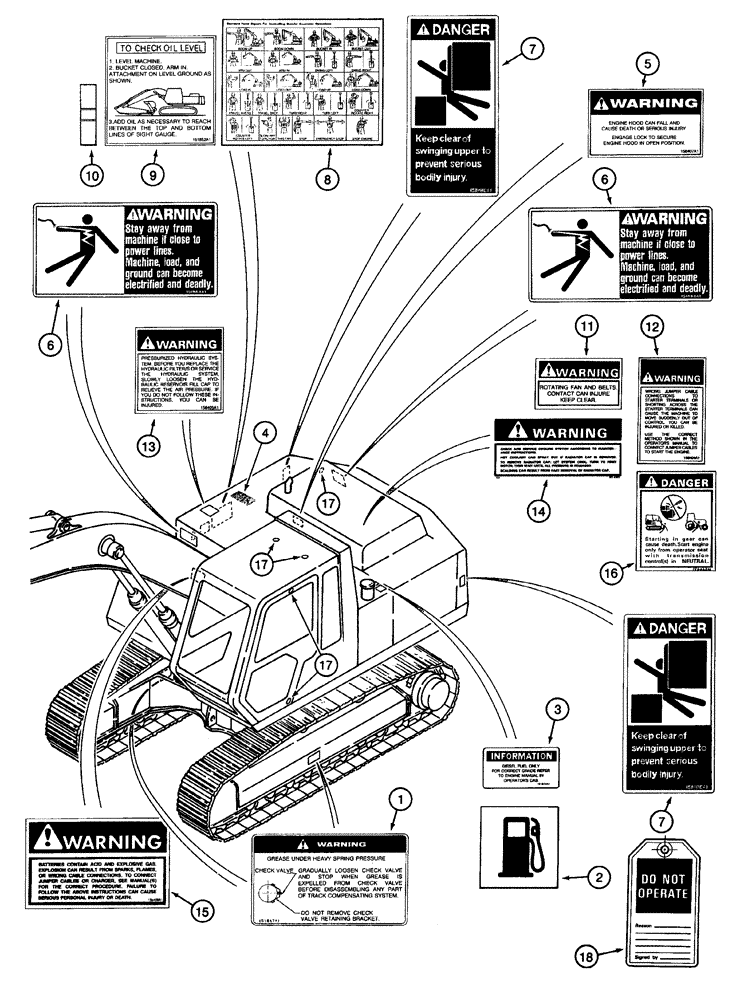

Запчасти Case 9040 (9-78) - DECALS - ENGLISH LANGUAGE, WARNING AND DANGER (09) - CHASSIS

1

158164A1

DECAL

- Warning, grease under heavy spring pressure

2шт.

2

150104A1

DECAL

- fuel tank

1шт.

3

151874A1

DECAL

- Information, diesel fuel only

1шт.

4

150108A1

ANTI-SKID STRIP

STRIP - adhesive, anti-skid

9шт.

5

156407A1

DECAL

- Warning, engine hood can fall

1шт.

6

151864A1

LABEL

DECAL - Warning, stay away from machine if close to power line

2шт.

7

151880A1

DECAL

- Danger, keep clear of swinging upper

2шт.

8

151869A1

LABEL

DECAL - hand signal chart

1шт.

9

151852A1

LABEL

DECAL - to check oil level

1шт.

10

156410A1

DECAL

- oil level gauge

1шт.

11

321-3596

DECAL

- Warning, rotating fan and belts

1шт.

12

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

13

321-6666

DECAL

- Warning, pressurized hydraulic system

1шт.

14

321-6672

DECAL

- Warning, check and service cooling system

1шт.

15

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

16

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

17

151756A1

PLATE WASHER

PLATE - bumper, 2 inch circle

5шт.

18

321-4614

TAG

- do not operate

1шт.
