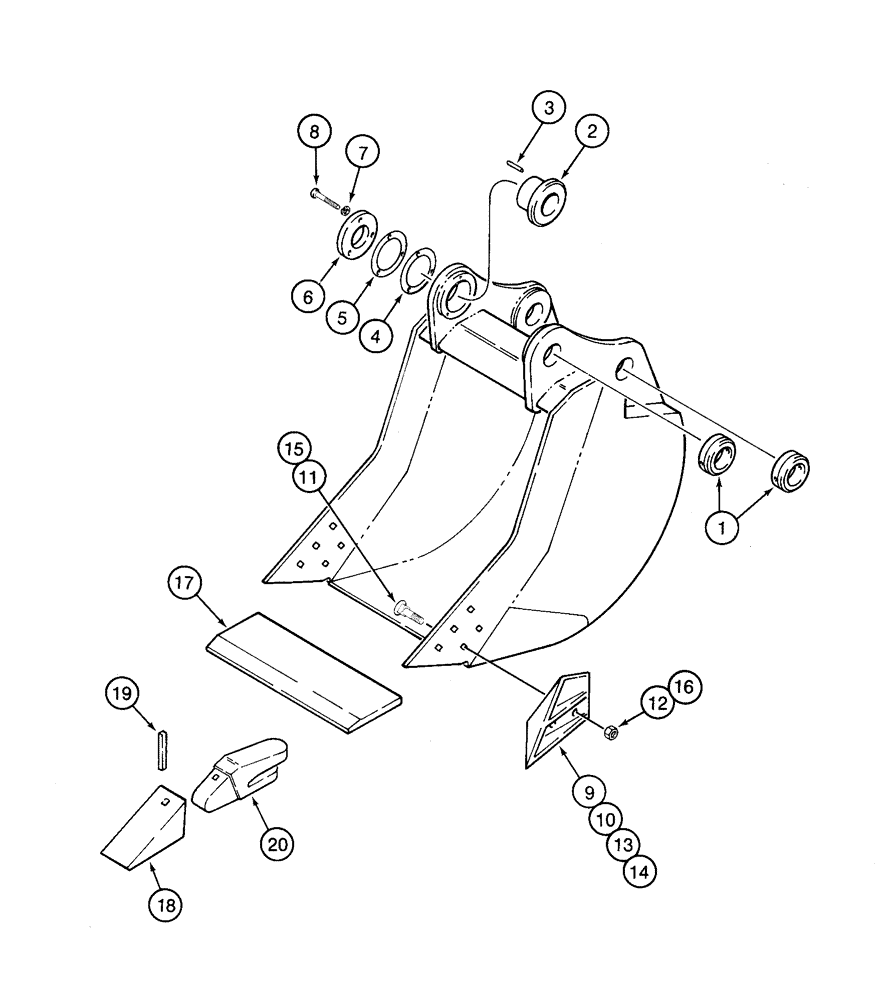

Запчасти Case 9040 (9-72) - H & H BUCKETS, SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - 30 inch (762 mm), with 4 teeth, 0.92 cu. yd, Includes: Ref. 1 - 20

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 36 inch (914 mm), with 4 teeth, 1.15 cu. yd, Includes: Ref. 1 - 20

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 42 inch (1067 mm), with 5 teeth, 1.38 cu. yd, Includes: Ref. 1 - 20

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125671A1

BUSHING

- bucket, with locking collar, Includes: Ref. 3

2шт.

2

125667A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN - dowel, special

1шт.

4

125668A1

SHIM

- plate mounting

1шт.

5

125669A1

SHIM

- plate mounting

1шт.

6

125670A1

RETAINER

PLATE - bushing

1шт.

7

429-11062

LOCK WASHER

WASHER - lock, 5/8 inch

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

112780A1

EDGE, CUTTING

KIT - side cutting edge, 4 inch, Includes: Ref. 9 - 12

1шт.

9

125930A1

CUTTER

EDGE - side cutting, left-hand, 4 inch

1шт.

10

125932A1

CUTTER

EDGE - side cutting, right-hand, 4 inch

1шт.

11

320-21648

CARRIAGE BOLT,#3, 1" - 8 x 3", Gr 8

BOLT - plow, #3 head, 1 NC x 3 inch, grade 8, side cutting edges

10шт.

12

232-41316

NUT,1"-8, GC

NUT, LOCK, , Side cutting edges 1"-8, GC

10шт.

128170A1

HALF BLADE

KIT - edge, side cutting, 5 inch, Includes: Ref. 13 - 16

1шт.

13

125934A1

EDGE, CUTTING

EDGE - side cutting, left-hand, 5 inch

1шт.

14

125936A1

EDGE, CUTTING

EDGE - side cutting, right-hand, 5 inch

1шт.

15

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT - plow, #3 head, 1 NC x 3-1/2 inch, grade 8, side cutting edges

10шт.

16

232-41316

NUT,1"-8, GC

NUT, LOCK, , Side cutting edges 1"-8, GC

10шт.

17

125726A1

EDGE, CUTTING

EDGE - cutting, center, 30 inch (762 mm) bucket

1шт.

17

125727A1

EDGE, CUTTING

EDGE - cutting, center, 36 inch (914 mm) bucket

1шт.

17

125728A1

EDGE, CUTTING

EDGE - cutting, center, 42 inch (1067 mm) bucket

1шт.

18

122671A1

TOOTH

- standard point, severe duty bucket

1шт.

See Figures 9-74 and 9-76 for point, pin and shank options.

1шт.

19

122672A1

FASTENER

PIN - flex, point to shank, standard, severe duty bucket tooth

1шт.

See Figures 9-74 and 9-76 for point, pin and shank options.

1шт.

20

122673A1

BUCKET TOOTH SHANK

- tooth, 2 inch, tooth, standard, severe duty bucket

1шт.

See Figures 9-74 and 9-76 for point, pin and shank options.

1шт.
