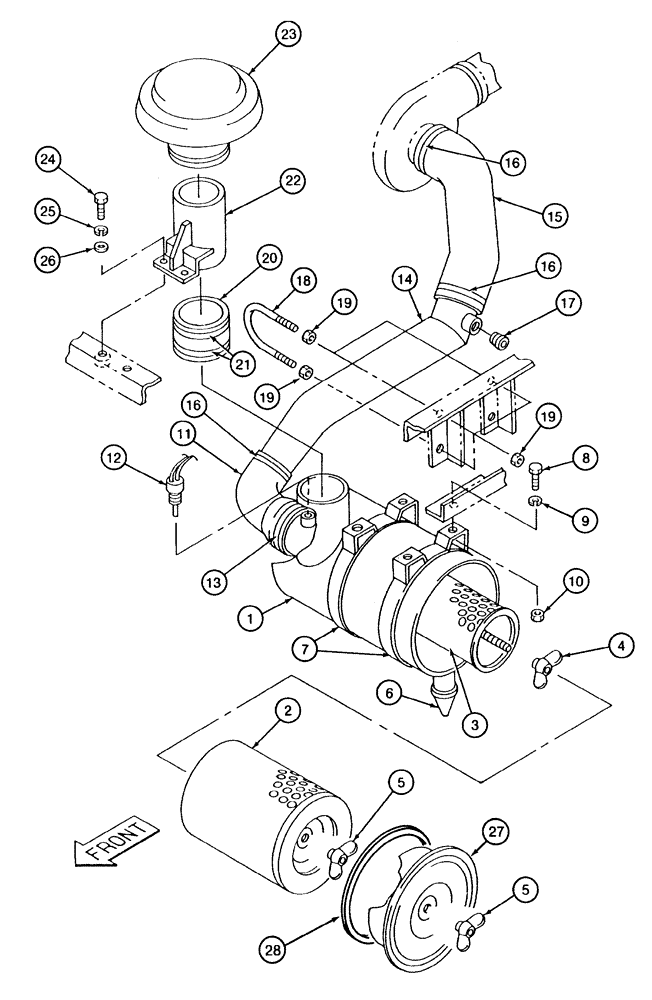

Запчасти Case 9040 (2-06) - AIR CLEANER SYSTEM (02) - ENGINE

151866A1

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 7

1шт.

1

151393A1

AIR CLEANER

HOUSING - air cleaner

1шт.

2

150783A1

ELEMENT

- outer, air cleaner, primary

1шт.

3

151397A1

AIR FILTER

ELEMENT - inner, air cleaner, secondary

1шт.

4

156696A1

NUT, WING

NUT - wing, secondary element

1шт.

5

156555A1

NUT, WING

NUT - wing, primary element

2шт.

6

156698A1

VALVE

- dust, air cleaner

1шт.

7

150791A1

COLLAR CLAMP

BRACKET - air cleaner mounting

2шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

11

151463A1

INTAKE AIR HOSE,101.60 mm ID, 127.00 mm ID x 280.00 mm

- At air cleaner 101.60 mm ID, 127.00 mm ID x 280.00 mm

1шт.

12

150675A1

SENSOR

SWITCH - air restriction indicator

1шт.

13

150855A1

HOSE CLAMP,127mm - 146mm

CLAMP - at air cleaner

1шт.

14

151462A1

AIR INTAKE TUBE

TUBE - air cleaner inlet

1шт.

15

151459A1

INTAKE AIR HOSE,101.60 mm ID x 336.50 mm

- At engine 101.60 mm ID x 336.50 mm

1шт.

16

150294A1

CLAMP,95mm - 115mm

CLAMP - adjustable, hose

3шт.

17

150990A1

PLUG

- air cleaner tube

1шт.

18

152078A1

U-BOLT,M12 x 116mm W x 133mm L

- mounting, tube

2шт.

19

150475A1

FLANGE NUT

- flanged, 12 mm - 1.75

8шт.

20

151464A1

INTAKE AIR HOSE,152.40 mm ID x 100.00 mm

152.40 mm ID x 100.00 mm

1шт.

21

150969A1

CLAMP

- air inlet tube

2шт.

22

151466A1

AIR INTAKE TUBE,152.4 mm OD, 190 mm Length

TUBE - air inlet

1шт.

23

151415A1

CAP

COVER - air inlet

1шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

25

892-11010

LOCK WASHER,M10

2шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

27

164582A1

COVER ASSY

COVER - element, air cleaner

1шт.

28

157236A1

GASKET

- cover

1шт.
