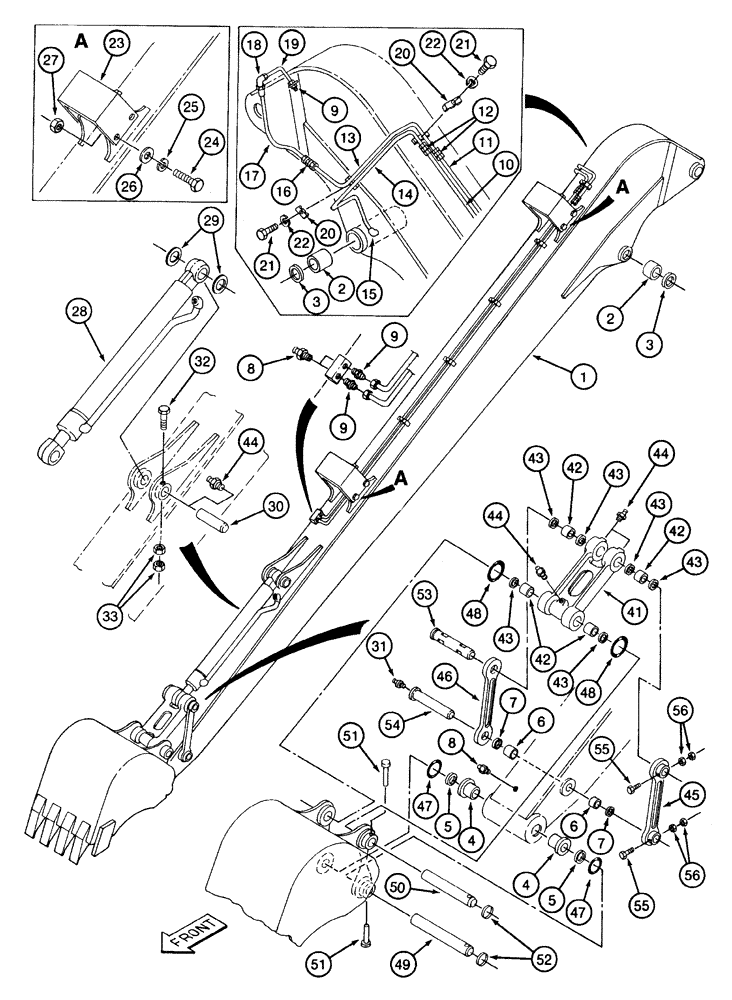

Запчасти Case 9040 (9-60) - ARM AND LINKAGE, LONG REACH MODELS (09) - CHASSIS

1

158546A1

ARM

- long reach

1шт.

2

151127A1

BUSHING

- arm and linkage

2шт.

3

150086A1

SEAL

SEAL - dust

2шт.

4

153722A1

BUSHING

- Arm and linkage

2шт.

5

150014A1

SEAL

SEAL - dust

2шт.

6

150577A1

BUSHING

- Arm and linkage

2шт.

7

150011A1

SEAL

SEAL - dust

2шт.

8

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

9

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

3шт.

10

158551A1

TUBE ASSY.,3653 mm Length

TUBE - long reach

1шт.

11

158552A1

TUBE,3673 mm Length

- long reach

1шт.

12

153694A1

UNION

CONNECTOR - straight, special

2шт.

13

158553A1

TUBE

- long reach

1шт.

14

158554A1

TUBE

- long reach

1шт.

15

152627A1

ELBOW

- 90 degree, special

1шт.

16

152032A1

UNION

CONNECTOR - straight

1шт.

17

151508A1

HOSE,700.00 mm

Arm and linkage 700.00 mm

1шт.

18

153696A1

ELBOW

- 45 degree

1шт.

19

158555A1

TUBE

- long reach

1шт.

20

153774A1

CLAMP

- double lubrication line

7шт.

21

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 30 mm, class 10.9

7шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

7шт.

23

158556A1

COVER

- tubes

2шт.

24

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

25

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

8шт.

26

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

8шт.

27

829-1416

NUT,M16, Cl 10

8шт.

28

150661A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/8 (105) ID x 35 inch (890 mm) stroke, bucket, parts list figure 8-95A

1шт.

29

150696A1

BLOCK

SHIM - bucket cylinder mounting

1шт.

30

158353A1

PIN

- bucket cylinder mounting, closed end

1шт.

31

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

32

514-857

BOLT,Hex, M12 x 1.25 x 120mm, Cl 10.9

BOLT - hex, 12 - 1.25 x 120 mm, class 10.9

1шт.

33

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm - 1.25

2шт.

41

156909A1

LINK ASSY.

LINK - center, bucket

1шт.

42

150572A1

RING

BUSHING - arm and linkage

4шт.

43

150014A1

SEAL

SEAL - dust

6шт.

44

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

45

153720A1

LINKAGE YOKE

LINK - arm and linkage

1шт.

46

153721A1

LINKAGE YOKE

LINK - arm and linkage

1шт.

47

153688A1

O-RING,112mm ID x 8mm Width

O-RING - arm and linkage

2шт.

48

153687A1

O-RING,95mm ID x 7mm OD

- arm and linkage

2шт.

49

153704A1

PIN

WASHER - special (replaces 153370A1)

1шт.

50

153705A1

PIN

- attaching

1шт.

51

153703A1

HEADED PIN,16mm OD x 102mm L

PIN - clevis

2шт.

52

153639A1

RING

- wire

2шт.

53

150699A1

PIN

- attaching

1шт.

54

150700A1

PIN ASSY.

PIN - attaching

1шт.

55

514-857

BOLT,Hex, M12 x 1.25 x 120mm, Cl 10.9

BOLT - hex, 12 - 1.25 x 120 mm, class 10.9

2шт.

56

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm - 1.25

4шт.
