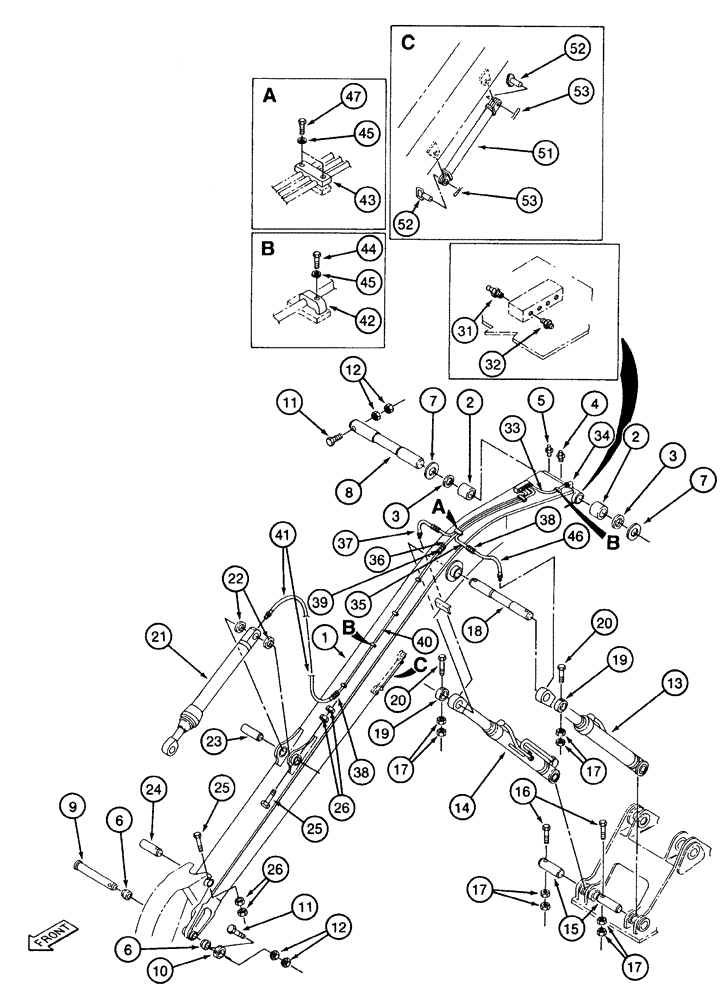

Запчасти Case 9040 (9-55A) - BOOM AND GREASE LINES, LONG REACH MODELS ONLY (09) - CHASSIS

1

158543A1

BOOM

- excavator, long reach

1шт.

2

158744A1

BUSHING

- boom

2шт.

3

150090A1

SEAL

- dust

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

5

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

1шт.

6

151648A1

BUSHING

- boom

2шт.

7

151231A1

SHIM

- 101 ID x 219 OD x 1.2 mm

1шт.

8

158743A1

PIN

- attaching, boom

1шт.

9

151592A1

PIN ASSY.

PIN - attaching, arm

1шт.

10

152024A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

11

514-1401

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

- hex, 24 - 2.0 x 190 mm, class 10.9

2шт.

12

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

4шт.

13

151445A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, parts list figure 8-90

1шт.

14

151439A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, parts list figure 8-90

1шт.

15

151270A1

PIN ASSY.

PIN - 90 x 291 mm

2шт.

16

150862A1

SPECIAL BOLT,Spcl, M16 x 1.5 x 160mm

BOLT - special

2шт.

17

825-11416

NUT,M16 x 1.5, Cl 8

- hex, 16 mm - 1.5

8шт.

18

151171A1

PIN ASSY.

PIN - boom

1шт.

19

150554A1

COLLAR

- pin retaining

2шт.

20

150863A1

SPECIAL BOLT,Spcl, M16 x 1.5 x 170mm

BOLT - special

2шт.

21

151155A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6-1/4 (160) ID x 68-1/4 inch (1733 mm) stroke, parts list figure 8-93A

1шт.

22

151247A1

ADJUSTING PLATE

SHIM - boom

1шт.

23

151194A1

PIN

- arm cylinder

1шт.

24

158557A1

PIN

- attaching

1шт.

25

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

- hex, 24 - 1.5 x 180 mm, class 10.9

2шт.

26

825-11420

NUT,M20 x 1.5, Cl 8

- hex, 20 mm - 1.5

4шт.

31

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

32

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

4шт.

33

151653A1

TUBE,574, 117.2 mm Length

- lubrication

1шт.

34

152627A1

ELBOW

- 90 degree, special

1шт.

35

151301A1

TUBE

- lubrication, boom cylinder pin

1шт.

36

158570A1

TUBE

- lubrication, arm cylinder pin

1шт.

37

151294A1

TUBE,8 mm Diameter,

- lubrication, boom cylinder pin

1шт.

38

152032A1

UNION

CONNECTOR - straight

3шт.

39

153694A1

UNION

CONNECTOR - straight, special

1шт.

40

158571A1

TUBE,3600 mm Length

- lubrication

1шт.

41

151508A1

HOSE,700.00 mm

Boom 700.00 mm

1шт.

42

151504A1

CLAMP

- lubrication line, single type

5шт.

43

151497A1

CLAMP

- lubrication line, triple type

3шт.

44

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 30 mm, class 10.9

5шт.

45

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

11шт.

46

152362A1

HOSE,530.00 mm

530.00 mm

2шт.

47

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

6шт.

51

158587A1

PIN

STAY - long reach

1шт.

52

158350A1

PIN

- boom

2шт.

53

150085A1

COTTER PIN

- clip

2шт.
