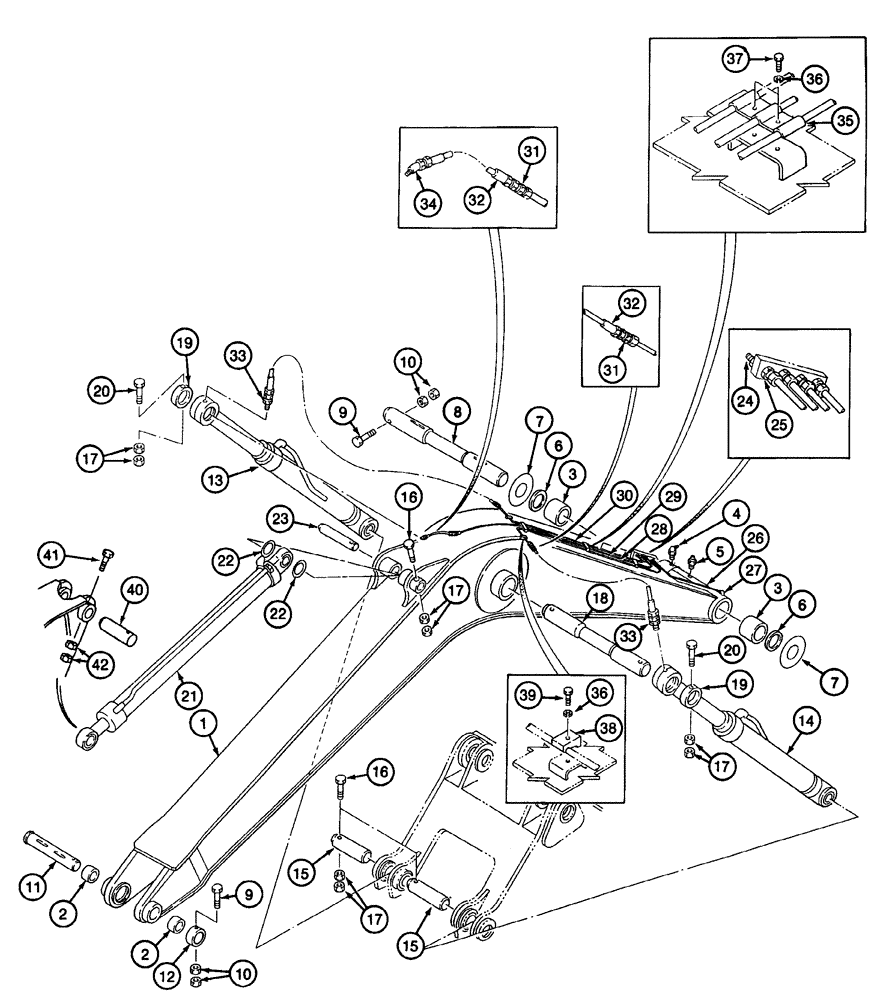

Запчасти Case 9040 (9-54) - BOOM, MOUNTING PINS AND LUBRICATION LINES (09) - CHASSIS

1

151644A1

BOOM

- excavator

1шт.

2

151648A1

BUSHING

- to arm boom

2шт.

3

158744A1

BUSHING

- to frame boom

2шт.

4

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree, 90 degree

1шт.

5

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

6

150090A1

SEAL

- dust, Serial Range: boom-frame

2шт.

7

151231A1

SHIM

- 101 ID x 219 OD x 1.2 mm, Serial Range: boom-frame

1шт.

8

158743A1

PIN

-, Serial Range: attaching,-frame

1шт.

9

514-1401

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

- hex, 24 - 2.0 x 190 mm, class 10.9

2шт.

10

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

4шт.

11

151592A1

PIN ASSY.

PIN -, Serial Range: attaching,-arm

1шт.

12

152024A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

13

151439A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, right-hand, parts list figure 8-90

1шт.

14

151445A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, left-hand, parts list figure 8-90

1шт.

15

151270A1

PIN ASSY.

PIN - 90 x 291 mm, boom, Serial Range: cylinder-frame

2шт.

16

150862A1

SPECIAL BOLT,Spcl, M16 x 1.5 x 160mm

BOLT - special

3шт.

17

825-11416

NUT,M16 x 1.5, Cl 8

- hex, 16 mm - 1.5

10шт.

18

151171A1

PIN ASSY.

PIN - to boom cylinder

1шт.

19

150554A1

COLLAR

- pin retaining, boom cylinder

2шт.

20

150863A1

SPECIAL BOLT,Spcl, M16 x 1.5 x 170mm

BOLT - special

2шт.

21

151243A1

CYLINDER

ASSEMBLY - arm, parts list figure 8-92

1шт.

22

152855A1

SHIM

- arm, Serial Range: cylinder-boom

1шт.

23

151174A1

PIN ASSY.

PIN - arm, Serial Range: cylinder-boom

1шт.

24

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

25

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special, lubrication line

4шт.

26

151653A1

TUBE,574, 117.2 mm Length

- lubrication, boom pin

1шт.

27

152627A1

ELBOW

- 90 degree, special

1шт.

28

151301A1

TUBE

- lubrication, boom cylinder pin

1шт.

29

151298A1

TUBE

- lubrication, arm cylinder pin

1шт.

30

151294A1

TUBE,8 mm Diameter,

- lubrication, boom cylinder pin

1шт.

31

152032A1

UNION

CONNECTOR - straight, lubrication line

3шт.

32

150937A1

HOSE,6.30 mm ID x 490.00 mm

- lubrication line 6.30 mm ID x 490.00 mm

3шт.

33

153603A1

ADAPTER

- straight, boom cylinder rod end

2шт.

34

153599A1

ADAPTER

ELBOW - 45 degree, arm cylinder closed end

1шт.

35

150452A1

SPECIAL CLAMP

CLAMP - tube, triple, 8 mm OD tube, at boom

3шт.

36

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

10шт.

37

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

6шт.

38

150735A1

SPECIAL CLAMP

CLAMP - tube, at boom

4шт.

39

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

4шт.

40

151269A1

PIN

- 90 x 363 mm, arm cylinder rod, Serial Range: end-boom

1шт.

41

150862A1

SPECIAL BOLT,Spcl, M16 x 1.5 x 160mm

BOLT - special

1шт.

42

825-11416

NUT,M16 x 1.5, Cl 8

- hex, 16 mm - 1.5

2шт.
