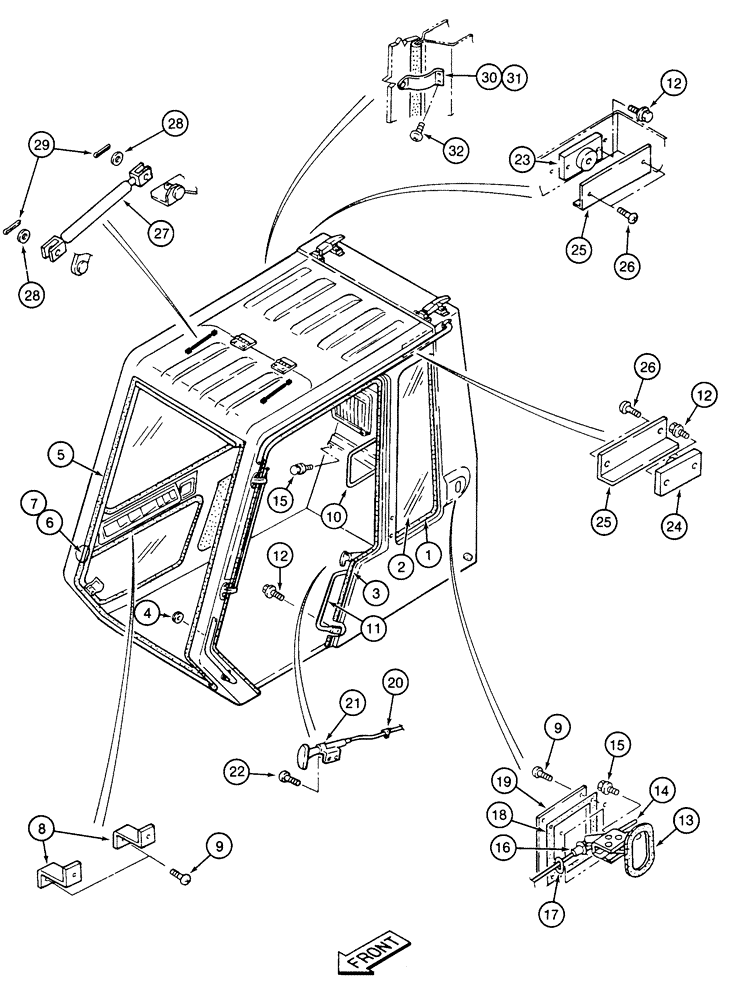

Запчасти Case 9040 (9-50) - CAB DOOR RELEASE AND OVERHEAD DOOR CYLINDER (09) - CHASSIS

1

KHN0773

FIXING STRIP

SEAL - left-hand window, Replaces152562A1

1шт.

2

KHN1294

CAB GLASS

GLASS - window, left-hand side, Replaces 152553A1

1шт.

3

152150A1

GASKET

TRIM - doorway edge

1шт.

4

152518A1

GROMMET

- rubber

1шт.

5

152568A1

GASKET

TRIM - edge, front window

1шт.

6

152699A1

GASKET

TRIM - edge, front window

1шт.

7

152701A1

GASKET

TRIM - edge, front window

1шт.

8

152302A1

BRACKET

- mounting, console

4шт.

9

152455A1

SPECIAL BOLT

SCREW - special, bracket mounting

8шт.

10

152923A1

SUPPORT

HANDLE - grab, upper

1шт.

11

152724A1

SUPPORT

HANDLE - grab, lower

1шт.

12

152438A1

BOLT

BOLT - special, coil spring mounting

12шт.

13

152401A1

GROMMET

- rubber

1шт.

14

KAN2772

LOCK

LATCH cab door, Replaces 152942A1, KHN1321

1шт.

15

152053A1

BOLT

BOLT - hex, special, Replaces KHN0714

10шт.

16

152508A1

CLAMP

RING - lock

1шт.

17

152491A1

GROMMET

- rubber

1шт.

18

152409A1

GASKET

- door latch cover

1шт.

19

152323A1

COVER

- cab door latch

1шт.

20

152489A1

CLAMP

CLIP - wire

2шт.

21

152350A1

BOWDEN CONTROL

CABLE - door latch

1шт.

22

152443A1

SPECIAL BOLT

SCREW - special, cable mounting

2шт.

23

152267A1

SUPPORT

BRACKET - right-hand, coil spring mounting

1шт.

24

152273A1

SUPPORT

BRACKET - left-hand, coil spring mounting

1шт.

25

152255A1

COVER

- access, coil spring mounting

2шт.

26

152482A1

SPECIAL BOLT,Spcl

SCREW - special, coil spring mounting

4шт.

27

152694A1

CYLINDER

- overhead door

2шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

29

152665A1

COTTER PIN

PIN - cotter

4шт.

30

152337A1

BRACKET

PLATE - mounting

1шт.

31

152332A1

PLATE

- mounting

1шт.

32

152446A1

SPECIAL BOLT,Spcl

SCREW - special

6шт.
