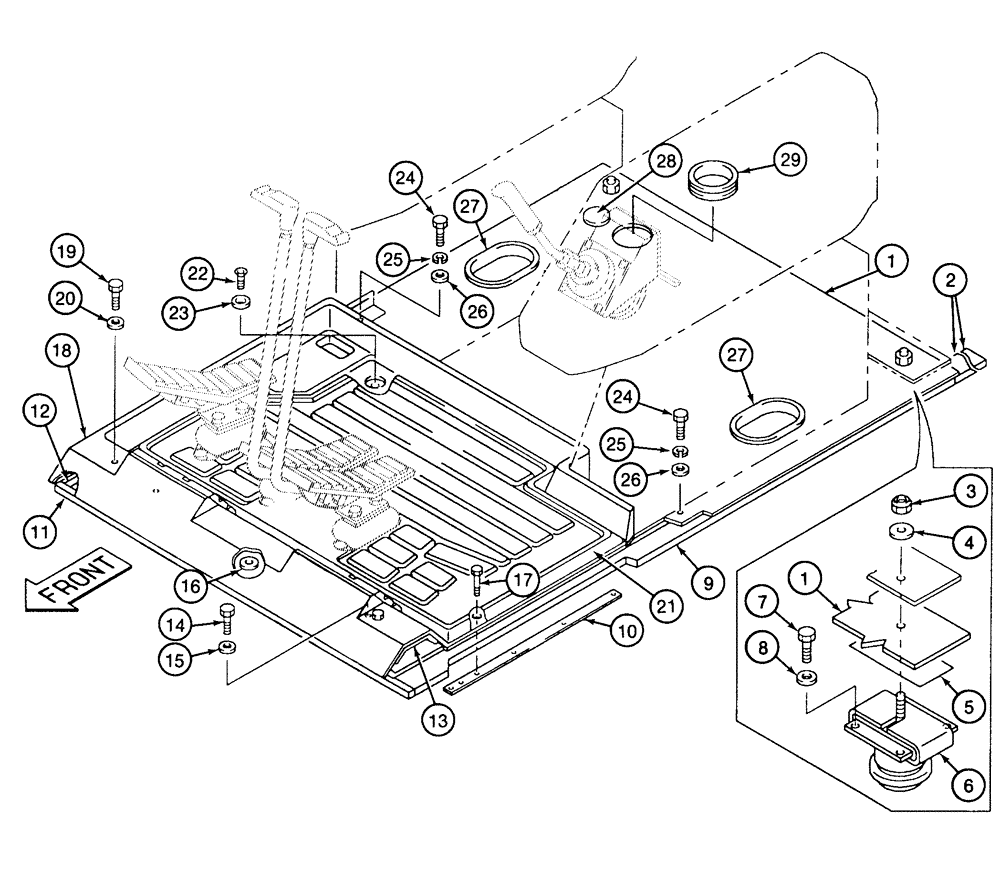

Запчасти Case 9040 (9-42) - CAB FLOOR AND MOUNTING (09) - CHASSIS

1

153400A1

FLOOR

PLATE - floor, cab

1шт.

2

151530A1

CUSHION ASSY.

CUSHION - sponge

1шт.

3

150760A1

NUT

- hex

4шт.

4

150714A1

WASHER

- special

4шт.

5

151092A1

SPACER

- at shock mount

4шт.

6

151090A1

RUBBER MOUNTING

MOUNT - shock, rubber

4шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

16шт.

8

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

16шт.

9

151525A1

CUSHION ASSY.

CUSHION - sponge, left-hand

1шт.

10

151183A1

PLATE

- reinforcement

1шт.

11

151128A1

CUSHION ASSY.

CUSHION - sponge, front

1шт.

12

151135A1

CUSHION ASSY.

CUSHION - sponge, right-hand

1шт.

13

151168A1

BRACKET

- foot rest

1шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

15

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

16

150413A1

GROMMET

- rubber

1шт.

17

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm, class 10.9

6шт.

18

153525A1

FLOOR MAT

MAT - floor, outer

1шт.

19

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - hex, 10 - 1.5 x 20 mm, class 10.9

1шт.

20

150604A1

WASHER

- special

2шт.

21

153401A1

FLOOR MAT

MAT - floor, inner

1шт.

22

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

BOLT - special

2шт.

23

151590A1

WASHER

- special

2шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

25

892-11010

LOCK WASHER,M10

2шт.

26

150344A1

WASHER

WASHER - flat, special, 11 ID x 25 OD x 3.2 mm thick

2шт.

27

152644A1

GROMMET

- rubber

2шт.

28

152643A1

GROMMET

- rubber

1шт.

29

152424A1

GROMMET

- rubber

1шт.
