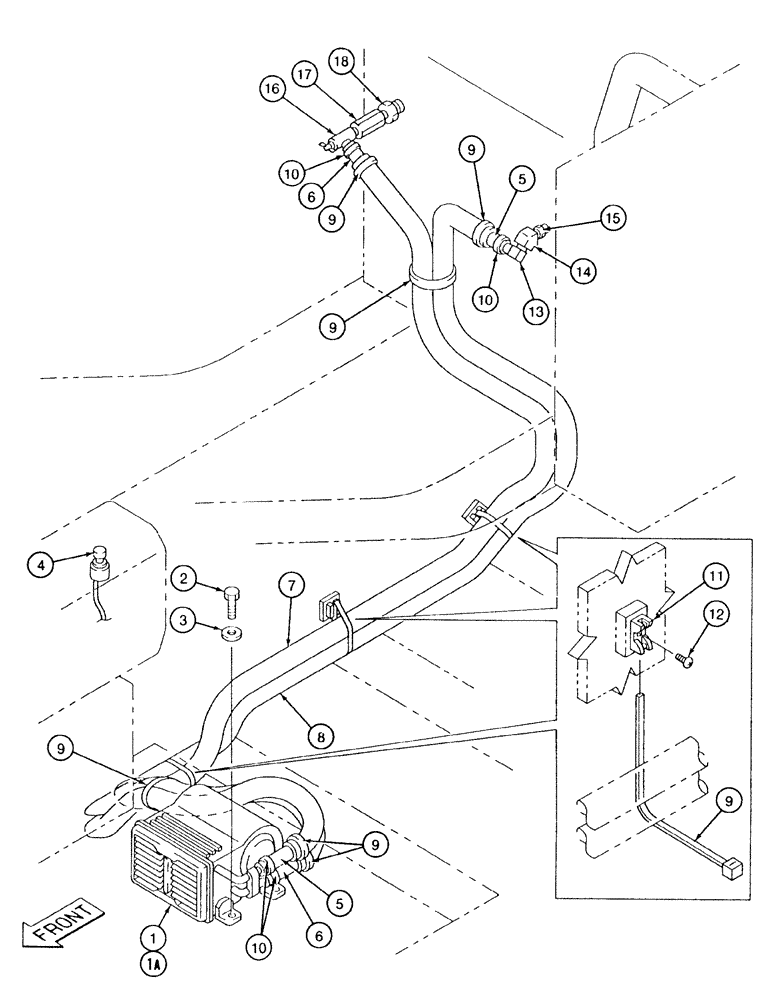

Запчасти Case 9040 (9-38) - HEATER AND HOSES (09) - CHASSIS

1

152815A1

HEATER,Assembly, Cab

HEATER - cab, Includes: Ref. 1A

1шт.

Ref#1 - for fan blower (squirrel cage) only order: 166058A1 (RH) and/or 166059A1 (LH). 1-05-98

1шт.

3 speed resistor located inside heater = 163618a1. 8/29/97

1шт.

1a

163619A1

MOTOR, ELECTRIC

MOTOR - electric, cab heater blower

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

4

151848A1

SWITCH

- rotary, heater fan

1шт.

5

151233A1

HOSE,13.00 mm ID x 3400.00 mm

- heater return 13.00 mm ID x 3400.00 mm

1шт.

6

158608A1

HOSE,13 mm ID x 4050.00 mm

- 159-13/32 inch (4050 mm) long, heater supply, replaces 150827A1 hose

1шт.

7

151544A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 450 mm Length

SLEEVE - corrugated, 149-5/8 inch (3800 mm) long

1шт.

8

151595A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 126 inch (3200 mm) long

1шт.

9

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

9шт.

10

150384A1

COLLAR

CLAMP - adjustable

4шт.

11

150860A1

COLLAR

BRACKET - support

3шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm, clamp bracket mounting

3шт.

13

150383A1

ELBOW

- 90 degree, special, heater return line at tank

1шт.

14

153587A1

HYDROMETER

ELBOW - 45 degree, special

1шт.

15

151697A1

NIPPLE, LUBE

NIPPLE - special, return

1шт.

16

152664A1

VALVE

- water, Serial Range: shut-off,-heater

1шт.

17

151110A1

BUSHING

- reducer

1шт.

18

151588A1

BUSHING

ADAPTER - straight, special, heater supply line at tank

1шт.
