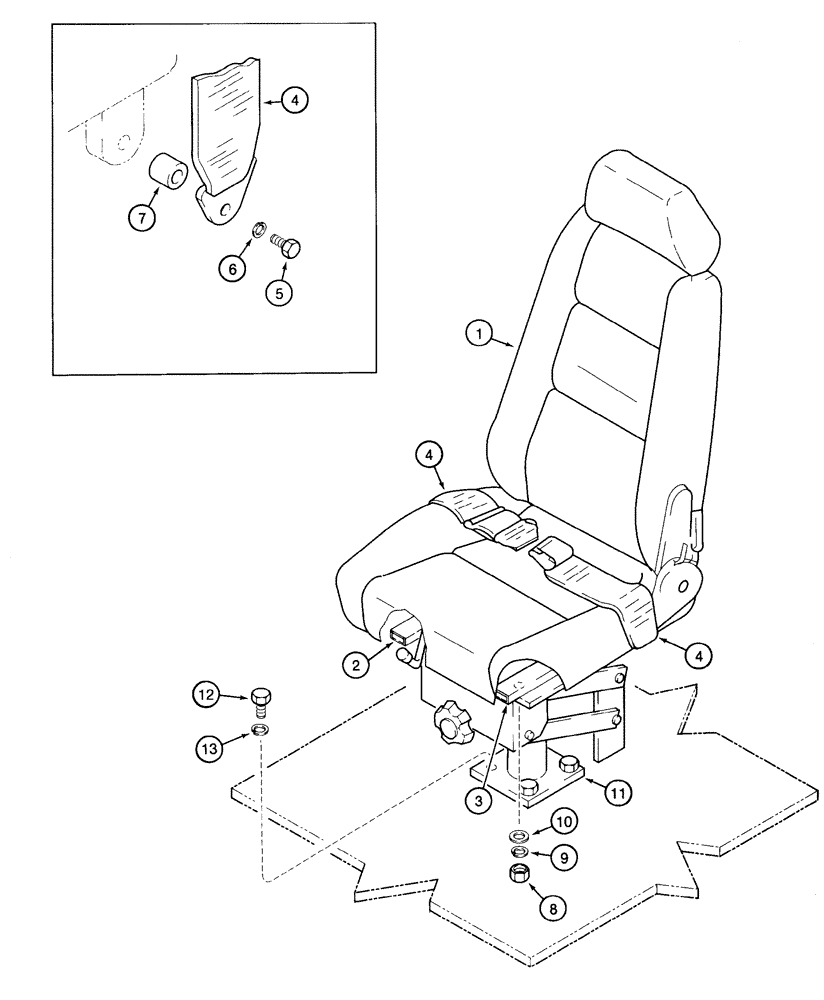

Запчасти Case 9040 (9-36) - SEAT, SEAT BELT AND MOUNTING (09) - CHASSIS

1

153002A1

SEAT ASSY.

SEAT - operators, Includes: Ref. 2 and 3

1шт.

2

156801A1

RAIL

- slide, right-hand

1шт.

3

156802A1

RAIL

- slide, left-hand

1шт.

4

151520A1

SAFETY BELT

SAFETY BELT, Includes Ref. 5 and 6

1шт.

5

151523A1

BOLT,High Strength, Hex

BOLT - hex, special, seat belt mounting

2шт.

6

151526A1

SPRING WASHER

WASHER - lock, special

2шт.

7

152755A1

SPACER

- 13.7 ID x 21.7 OD x 10 mm

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

11

152784A1

SUSPENSION

PEDESTAL - seat

1шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

13

892-11010

LOCK WASHER,M10

4шт.
