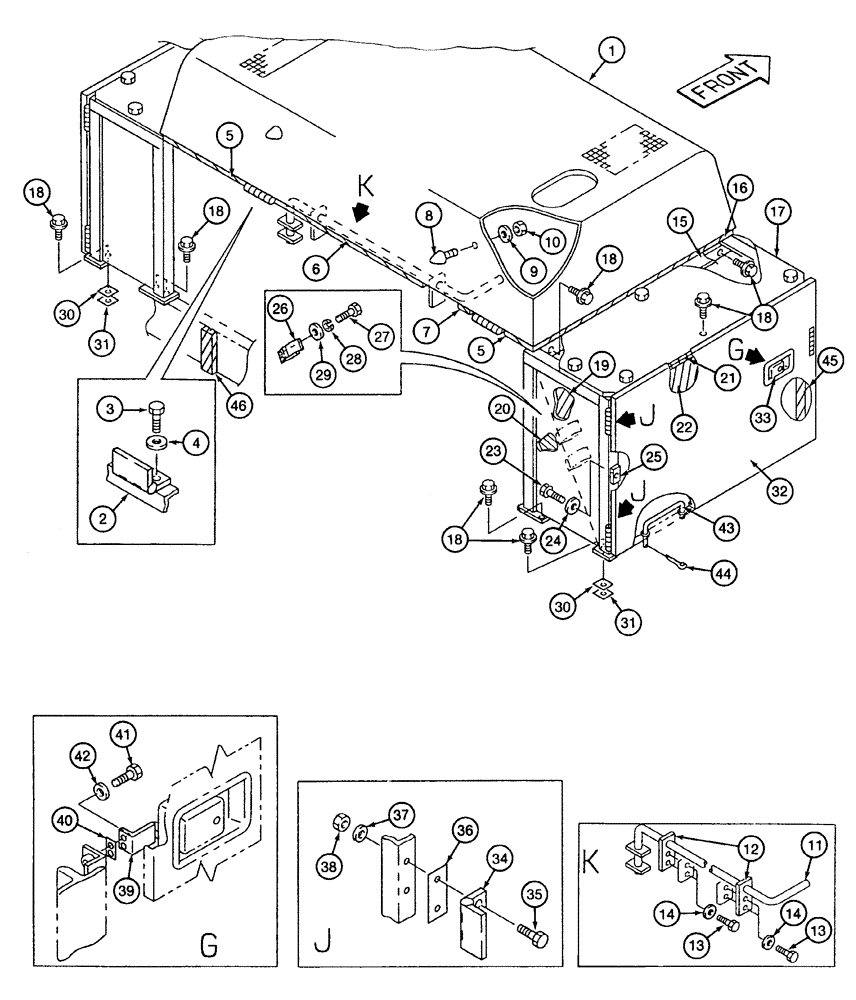

Запчасти Case 9040 (9-20) - UPPER STRUCTURE, FRAME, PANELS, AND INSULATION PADS (09) - CHASSIS

1

158614A1

HOOD

- engine, replaces 152278A1 hood, Includes: Ref. 2

1шт.

2

152819A1

HINGE

- hood

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

4

150811A1

WASHER

- flat, special, 12 mm

6шт.

5

152296A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

2шт.

6

152301A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

7

152315A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

8

151108A1

STOP

BUMPER - rubber

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

10

153604A1

NUT

- hex, special, bumper retaining

2шт.

11

152364A1

ROD

- torsion

1шт.

12

152319A1

BRACKET

- torsion bar

2шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

14

150811A1

WASHER

- flat, special, 12 mm

4шт.

15

152217A1

STAY

FRAME - right-hand rear

1шт.

16

152283A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

17

152250A1

COVER

- upper, right-hand top

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

30шт.

19

152349A1

INSULATOR

PAD - insulation

1шт.

20

152360A1

INSULATOR

PAD - insulation

1шт.

21

153000A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

22

151637A1

INSULATOR

PAD - insulation

1шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

24

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

1шт.

25

152642A1

STOP

BUMPER - rubber, stopper

1шт.

26

152772A1

HOLDER

- grease gun

2шт.

27

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

30

152658A1

SHIM

- mounting

1шт.

31

152659A1

SHIM

- mounting

1шт.

32

151822A1

DOOR

- access, right-hand, Includes: Ref. 33 and 34

1шт.

33

150939A1

LOCK

LATCH - recessed, door lock

1шт.

34

151104A1

HINGE

- door

2шт.

35

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

4шт.

36

152186A1

BLOCK

SHIM - 2.5 mm thick

1шт.

37

150811A1

WASHER

- flat, special, 12 mm

4шт.

38

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

39

152641A1

BRACKET

- door latch

1шт.

40

151418A1

SHIM

- door latch bracket

1шт.

41

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

42

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

43

151791A1

STAY

ROD - retaining, door

1шт.

44

156466A1

PIN

- cotter

1шт.

45

152996A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

46

158346A1

SEAL - insulation, cushion

1шт.
