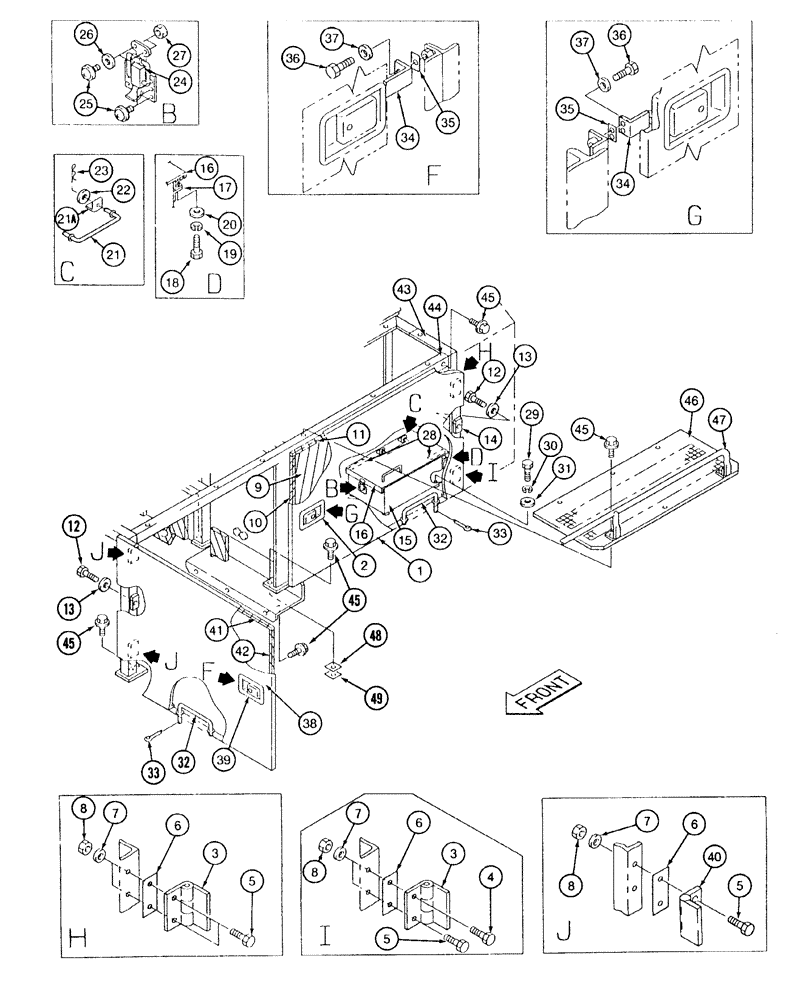

Запчасти Case 9040 (9-16) - UPPER STRUCTURE, LEFT-HAND SIDE COVERS AND RELATED PARTS (09) - CHASSIS

1

152369A1

DOOR

- access, left-hand rear, Includes: Ref. 2 and 3

1шт.

2

150938A1

LOCK

LATCH - recessed, door lock

1шт.

3

151104A1

HINGE

- door

2шт.

4

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 45 mm, class 10.9

1шт.

5

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

5шт.

6

152186A1

BLOCK

SHIM - 2.5 mm thick, access door

1шт.

7

150811A1

WASHER

- flat, special, 12 mm

8шт.

8

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

8шт.

9

152345A1

INSULATOR

PAD - insulation

1шт.

10

152996A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

11

152354A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

13

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

14

152642A1

STOP

BUMPER - rubber, stopper

2шт.

15

153130A1

BOX

- tool

1шт.

16

153135A1

COVER

- box, Includes: Ref. 17

1шт.

17

152633A1

HINGE

- cover

2шт.

18

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

4шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

153132A1

STAY

HANDLE - tool box, Includes: Ref. 21A

1шт.

21a

NSS

NOT SOLD SEPARAT

BRACKET - angle, tool box handle

2шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

23

733-1616

COTTER PIN,M1.6 x 16

PIN - cotter, 1.6 x 16 mm

1шт.

24

153133A1

CATCH

LATCH - tool box

1шт.

25

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

- pan head, catch retaining

5шт.

26

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

27

825-1405

NUT,M5, Cl 8

2шт.

28

150396A1

CUSHION ASSY.

CUSHION - rubber

2шт.

29

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

30

892-11010

LOCK WASHER,M10

4шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

32

151791A1

STAY

ROD - retaining, door

2шт.

33

156466A1

PIN

- cotter

2шт.

34

152641A1

BRACKET

- door latch

2шт.

35

151418A1

SHIM

- door latch bracket

1шт.

36

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

37

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

38

151813A1

DOOR

- access, left-hand front, Includes: Ref. 39 and 40

1шт.

39

150939A1

LOCK

LATCH - recessed

1шт.

40

151104A1

HINGE

- door

2шт.

41

152998A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

42

152996A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

43

152222A1

FRAME ASSY

FRAME - left-hand rear

1шт.

44

151660A1

STAY

FRAME - left-hand

1шт.

45

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

12шт.

46

152254A1

COVER

- upper, left-hand

1шт.

47

151884A1

STAY

ROD - cover support

1шт.

48

152658A1

SHIM

- mounting

1шт.

49

152659A1

SHIM

- mounting

1шт.
