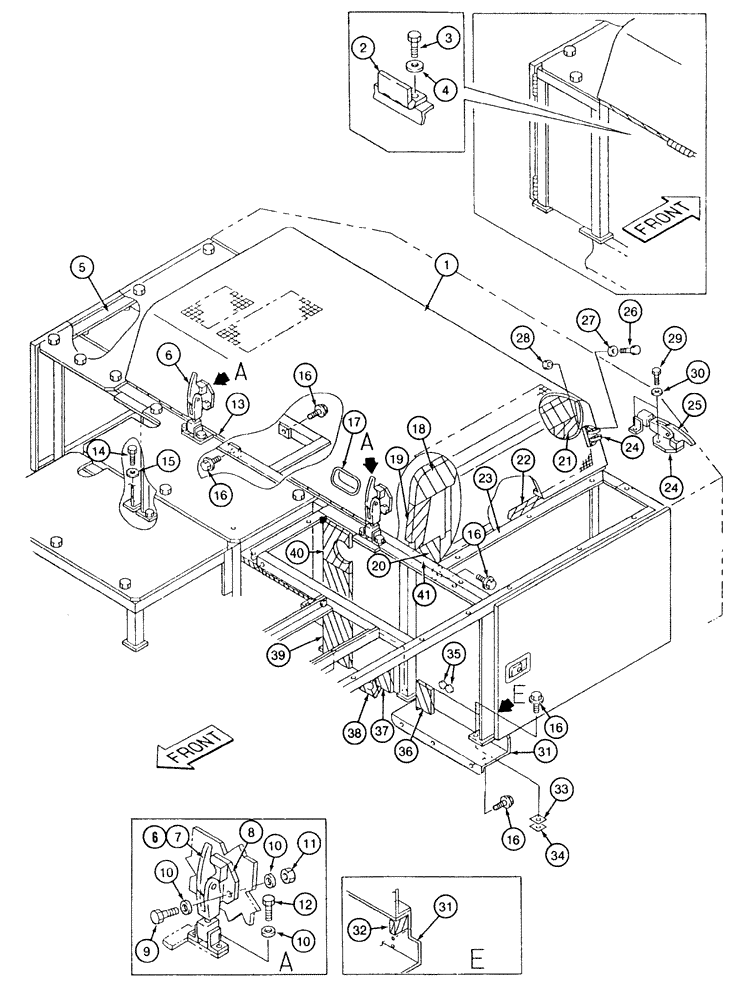

Запчасти Case 9040 (9-14) - UPPER STRUCTURE, HOOD AND INSULATION PADS (09) - CHASSIS

1

158614A1

HOOD

- engine, replaces 152278A1 hood, Includes: Ref. 2

1шт.

2

152819A1

HINGE

- hood

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

4

150811A1

WASHER

- flat, special, 12 mm

6шт.

5

152212A1

FRAME ASSY

FRAME - right-hand

1шт.

6

150790A1

LATCH

CATCH - right-hand, hood

1шт.

7

152423A1

LATCH

CATCH - left-hand, hood, locking

1шт.

7a

150979A1

IGNITION KEY

KEY - ignition switch, used with hood catch, not shown

1шт.

REF. 7A (150979A1 KEY) COMES AS A SET OF 2 KEYS. IF YOU ORDER 1 PC YOU WILL GET A SET OF 2. NAPO TECH 7/1/99

1шт.

8

150785A1

STOP LOCK

LATCH - door assembly

2шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

12шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

13

152291A1

CUSHION ASSY.

PAD - insulation, cushion

1шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

15

150900A1

WASHER

- flat, 12 mm

2шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

20шт.

17

150484A1

HANDLE

- recessed

1шт.

18

158539A1

SEAL

- insulation, cushion

1шт.

19

158538A1

SEAL

- cushion, cushion

1шт.

20

158612A1

SEAL - insulation, cushion

1шт.

21

158537A1

SEAL

- cushion, insulation

1шт.

22

152283A1

CUSHION ASSY.

PAD - insulation, cushion, foam strip

1шт.

23

152227A1

FRAME ASSY

FRAME - left-hand

1шт.

24

150856A1

STOP LOCK

CATCH - top cover

1шт.

25

150854A1

FASTENER

LATCH - top cover

1шт.

26

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

29

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

31

152272A1

COVER

PLATE - cover

1шт.

32

152340A1

SEAL

- insulation, cushion

1шт.

33

152658A1

SHIM

- mounting

1шт.

34

152659A1

SHIM

- mounting

1шт.

35

151409A1

GROMMET

- rubber

2шт.

36

158028A1

SEAL

- insulation, cushion

1шт.

37

152356A1

SEAL

- insulation, cushion

1шт.

38

151953A1

SEAL

- insulation, cushion

1шт.

39

152322A1

SEAL

- insulation, cushion

1шт.

40

152325A1

SEAL

- insulation, cushion

1шт.

41

158613A1

FRAME ASSY

FRAME - left-hand, left-hand

1шт.
