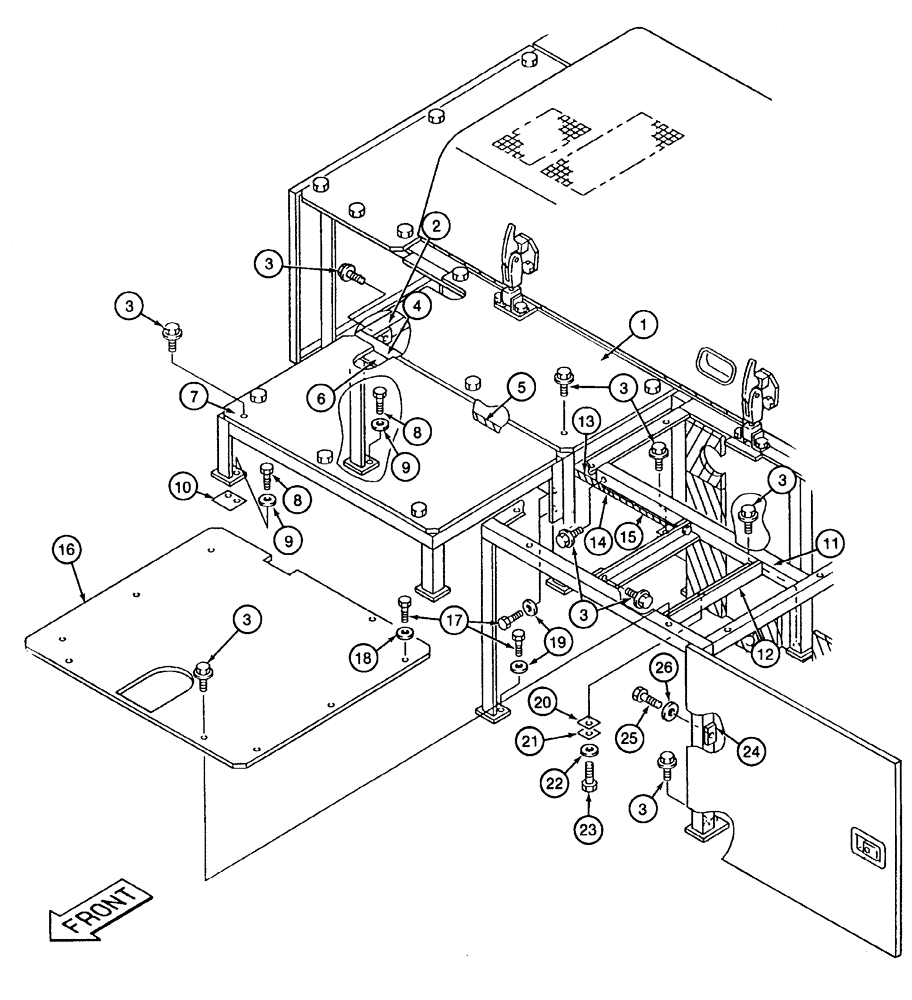

Запчасти Case 9040 (9-12) - UPPER STRUCTURE, TOP AND FRONT COVERS (09) - CHASSIS

1

152266A1

COVER

- center

1шт.

2

151721A1

STAY

FRAME - right-hand

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

20шт.

4

152246A1

FRAME ASSY

FRAME - center

1шт.

5

151732A1

SEAL

PAD - insulation

1шт.

6

151782A1

LARGE PIN

FRAME - center

1шт.

7

151879A1

COVER

- front

1шт.

8

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

12шт.

9

150900A1

WASHER

- flat, 12 mm

12шт.

10

151962A1

SHIM

- plate

1шт.

11

152239A1

SUPPORT

FRAME - left-hand front

1шт.

12

152242A1

STAY

FRAME - left-hand front

2шт.

13

151734A1

SEAL

PAD - insulation

1шт.

14

151730A1

SEAL

PAD - insulation

1шт.

15

151738A1

SEAL

PAD - insulation

1шт.

16

152259A1

SHEET

COVER - left-hand

1шт.

17

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

8шт.

18

151161A1

WASHER

- special

4шт.

19

150811A1

WASHER

- flat, special, 12 mm

4шт.

20

152658A1

SHIM

- mounting

1шт.

21

152659A1

SHIM

- mounting

1шт.

22

150900A1

WASHER

- flat, 12 mm

1шт.

23

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

1шт.

24

152642A1

STOP

BUMPER - rubber, stopper

1шт.

25

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

26

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

1шт.
