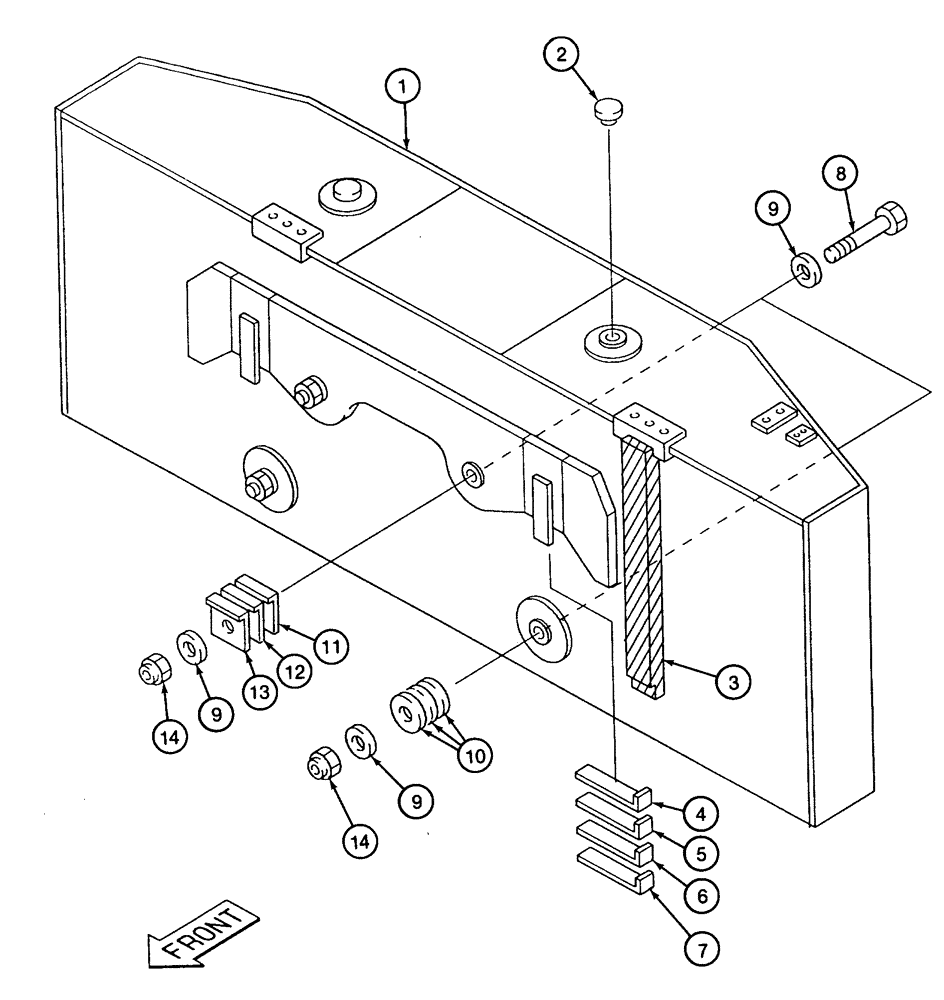

Запчасти Case 9040 (9-10) - COUNTERWEIGHT (09) - CHASSIS

1

151170A1

WEIGHT

COUNTERWEIGHT - rear, 9700 lbs, standard

1шт.

1

158619A1

WEIGHT

COUNTERWEIGHT - rear, 12,700 lbs, Long Reach and Timber King models, if used

1шт.

2

150129A1

PLUG

- special, rubber

2шт.

3

158618A1

SEAL

- cushion

1шт.

4

150746A1

ADJUSTING PLATE

SPACER - 0.08 inch thick, shim

1шт.

5

150747A1

ADJUSTING PLATE

SPACER - 0.13 inch thick, shim

1шт.

6

150750A1

ADJUSTING PLATE

SPACER - 0.18 inch thick, shim

1шт.

7

150936A1

ADJUSTING PLATE

SPACER - 0.03 inch thick, shim

1шт.

8

150901A1

SPECIAL BOLT,Spcl, M36 x 550mm

BOLT - special

4шт.

9

150573A1

WASHER

- flat, special

8шт.

10

150405A1

SHIM

SPACER - 0.08 inch thick, shim

1шт.

11

150745A1

SHIM

SPACER - 0.18 inch thick, shim

1шт.

12

150744A1

SHIM

SPACER - 0.13 inch thick, shim

1шт.

13

150742A1

SHIM

SPACER - 0.08 inch thick, shim

1шт.

14

832-41336

LOCK NUT,M36 x 4, Cl 10

NUT - hex, self-locking, 36 mm - 4.0, counter weight

4шт.
