(9-08) - TURNTABLE GUARDS

Запчасти Case 9040 (9-08) - TURNTABLE GUARDS (09) - CHASSIS

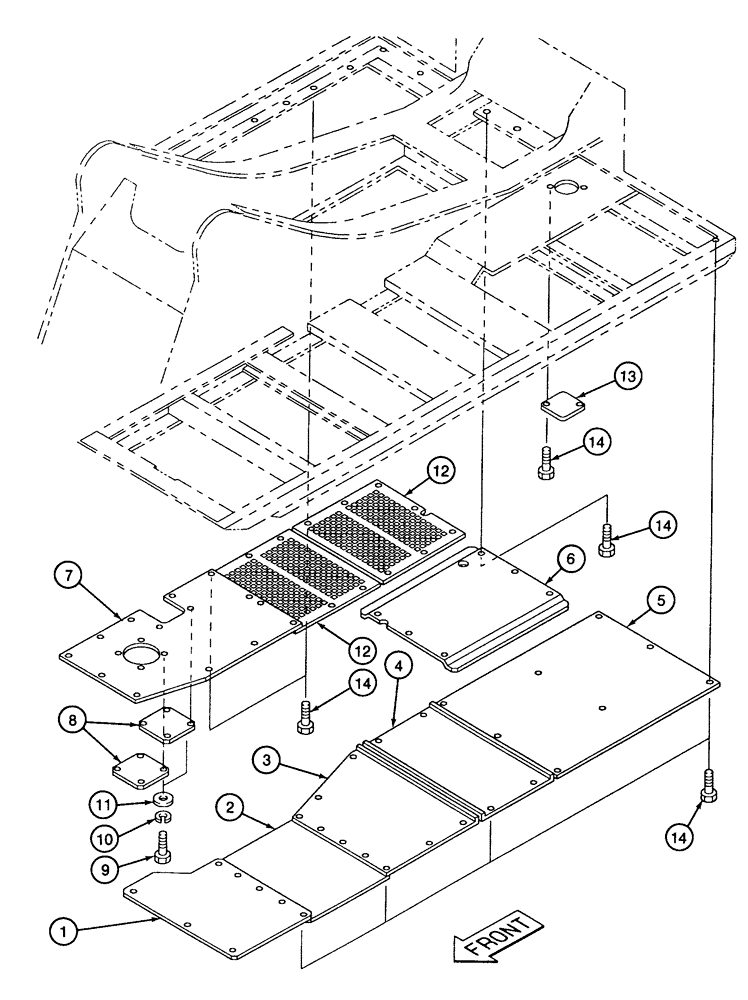

Схема запчастей Case 9040 - (9-08) - TURNTABLE GUARDS (09) - CHASSIS
7
9
13
12
14
11
12
3
14
14
2
6
1
8
10
14
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150869A1

GUARD

- turntable, left-hand front

1шт.

2

150871A1

COVER

GUARD - turntable, left-hand

1шт.

3

150868A1

GUARD

- turntable, left-hand

1шт.

4

150799A1

COVER

GUARD - turntable, left-hand

1шт.

5

150841A1

COVER

GUARD - turntable, left-hand rear

1шт.

6

151209A1

COVER

GUARD - turntable, rear center

1шт.

7

150845A1

COVER

GUARD - turntable, right-hand front

1шт.

8

150222A1

COVER

- access, turntable

2шт.

9

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

7шт.

10

892-11010

LOCK WASHER,M10

7шт.

11

150344A1

WASHER

WASHER - flat, special, 11 ID x 25 OD x 3.2 mm thick

7шт.

12

150787A1

COVER

GUARD - turntable, right-hand center and rear

2шт.

13

150804A1

COVER

- access

1шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, turntable guards

60шт.
