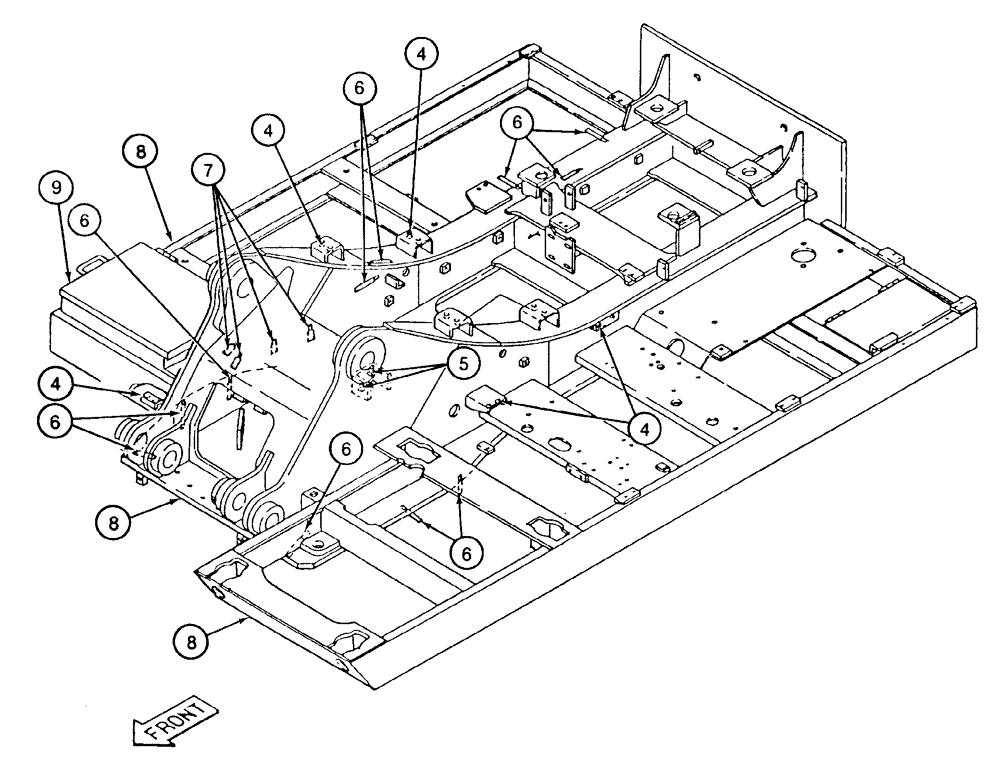

Запчасти Case 9040 (9-06) - TURNTABLE (09) - CHASSIS

1

151205A1

PLATFORM

- turntable, right-hand, no longer available, order 158617A1 frame item 8, not shown

1шт.

2

151201A1

FRAME

- boom mounting, no longer available, order 158617A1 frame item 8, not shown

1шт.

3

151203A1

PLATFORM

- turntable, left-hand, no longer available, order 158617A1 frame item 8, not shown

1шт.

4

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

14шт.

5

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

2шт.

6

150480A1

CLIP

- harness

11шт.

7

150486A1

CLIP

- harness

4шт.

8

158617A1

FRAME ASSY

FRAME - revolving, replaces items 1, 2 and 3

1шт.

9

160620A1

COVER

- battery

1шт.

Side frame section P/N 165183A1.

1шт.
