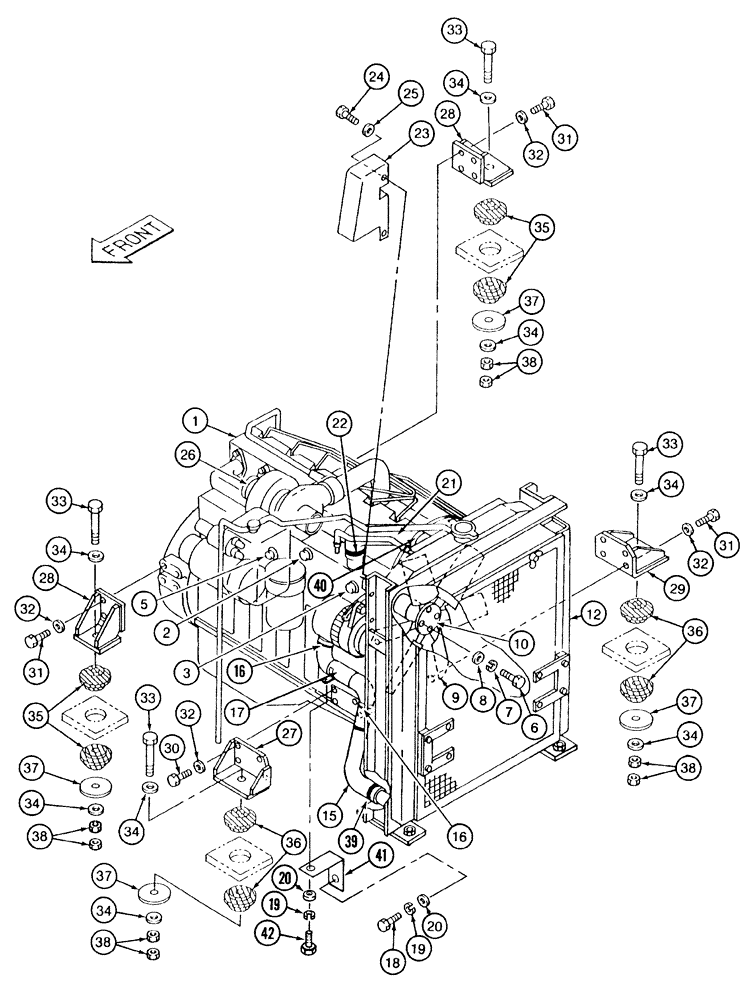

Запчасти Case 9040 (2-03A) - ENGINE MOUNTING, RADIATOR AND ADAPTING PARTS, P.I.N. DAC0400004 AND AFTER (02) - ENGINE

1

REF

INSTRUCTION

ENGINE ASSEMBLY - complete, 6T-830, parts list Figures 2-12 through 2-44 and 3-8 through 3-14

1шт.

2

1546461C2

SWITCH

- oil pressure, 10 psi, replaces 1546461C1 switch

1шт.

3

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, includes nut

1шт.

5

153493A1

BUSHING

- reducer

1шт.

6

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

- hex, 10 - 1.5 x 110 mm, class 10.9, Fan mounting

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

9

1998751C1

FAN

- engine cooling

1шт.

10

A184524

SPACER

- fan, outer

1шт.

12

158622A1

RADIATOR

ASSEMBLY - engine and transmission oil cooling, parts list Figure 2-11A

1шт.

15

163742A1

RADIATOR HOSE,49.80 mm ID, 74.00 mm ID x 334.50 mm

Lower 49.80 mm ID, 74.00 mm ID x 334.50 mm

1шт.

16

153054A1

SPECIAL CLAMP

CLAMP - radiator hose, replaces 150890A1 clamp

2шт.

17

158311A1

TUBE

- side of engine to bottom of radiator, water

1шт.

18

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

21

158623A1

RADIATOR HOSE

Upper

1шт.

22

153055A1

CLAMP

- upper radiator hose

1шт.

23

158312A1

BRACKET

- radiator

1шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

25

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

26

A170807

CLAMP,102mm ID

retaining, special, at turbocharger

1шт.

27

151798A1

ENGINE MOUNT

BRACKET - engine mounting, left-hand front

1шт.

28

151804A1

ENGINE MOUNT

BRACKET - engine mounting, right-hand front and rear

2шт.

29

158081A1

ENGINE MOUNT

BRACKET - engine mounting, left-hand rear

1шт.

30

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

31

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

12шт.

32

150811A1

WASHER

- flat, special, 12 mm

16шт.

33

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

- hex, 20 - 2.5 x 130 mm, class 10.9

4шт.

34

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

8шт.

35

151304A1

INSULATOR BLOCK

INSULATOR - rubber, engine mounting, right-hand front and rear

4шт.

36

151309A1

SUSPENSION BLOCK

INSULATOR - rubber, engine mounting, left-hand front and rear

4шт.

37

150874A1

WASHER

- special

4шт.

38

829-1420

NUT,M20, Cl 10

8шт.

39

157719A1

CLAMP

- wire

1шт.

40

157718A1

CLAMP

- wire-type

1шт.

41

158106A1

BRACKET

- support, water pipe

1шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

43

157916A1

CLAMP

- special, not shown

1шт.

44

1981644C1

HOSE

- 43-5/16 inch (1100 mm) long, not shown

1шт.
