Запчасти Case 9040 (8-96) - BUCKET CYLINDER ASSEMBLY, LONG REACH MODELS (08) - HYDRAULICS

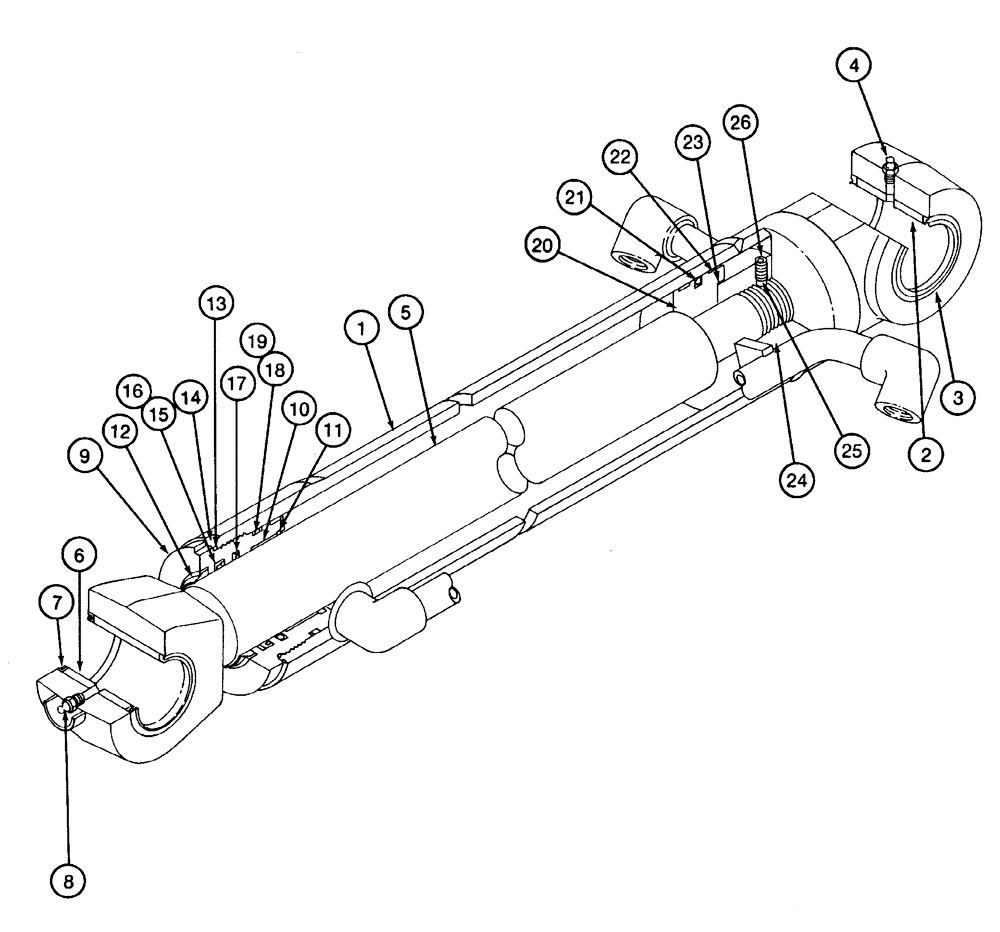

Схема запчастей Case 9040 - (8-96) - BUCKET CYLINDER ASSEMBLY, LONG REACH MODELS (08) - HYDRAULICS
8
3
2
14
12
6
21
7
16
15
26
18
25
24
19
10
20
11
23
13
5
4
17
22
9
1

Артикул

Название

Примечание

Количество

150661A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/8 (105) ID x 35 inch (890 mm) stroke, bucket, Includes: Ref. 1 - 26

1шт.

1

155862A1

HYD TUBE

TUBE ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

155401A1

PIN

BUSHING - mounting pin

1шт.

3

155119A1

BACK-UP RING

WIPER - mounting pin

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

5

155867A1

ROD ASSY.

ROD ASSEMBLY - cylinder

1шт.

6

155400A1

BUSHING

- mounting pin

1шт.

7

155113A1

SHAFT SEAL

WIPER - mounting pin

2шт.

8

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

9

155872A1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 10 and 11

1шт.

10

155415A1

BUSHING

- gland

1шт.

11

155698A1

RING, SNAP

RING - snap

1шт.

12

158035A1

WIPER SEAL

WIPER - rod

1шт.

Part of Seal Kit P/N 158171A1

1шт.

13

154731A1

O-RING

- cylinder

1шт.

Part of Seal Kit P/N 158171A1

1шт.

14

156224A1

LOCK WASHER

WASHER - lock

1шт.

Part of Seal Kit P/N 158171A1

1шт.

15

155230A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 158171A1

1шт.

16

155129A1

RING

SEAL - U-cup

1шт.

Part of Seal Kit P/N 158171A1

1шт.

17

155133A1

SEALING RING

RING - buffer

1шт.

Part of Seal Kit P/N 158171A1

1шт.

18

154139A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 158171A1

1шт.

19

154712A1

O-RING

- cylinder

1шт.

Part of Seal Kit P/N 158171A1

1шт.

20

155972A1

PISTON

- cylinder

1шт.

21

155330A1

SEALING RING

SEAL - piston

1шт.

Part of Seal Kit P/N 158171A1

1шт.

22

155329A1

BACK-UP RING

RING - wear

2шт.

Part of Seal Kit P/N 158171A1

1шт.

23

155718A1

SHIM

- special

1шт.

Part of Seal Kit P/N 158171A1

1шт.

24

156217A1

NUT

- special

1шт.

25

155976A1

BALL

- steel

1шт.

26

156222A1

SCREW

- set

1шт.

158171A1

SEAL KIT

KIT - seal, Includes: Ref. 12-19 and 21-23

1шт.
