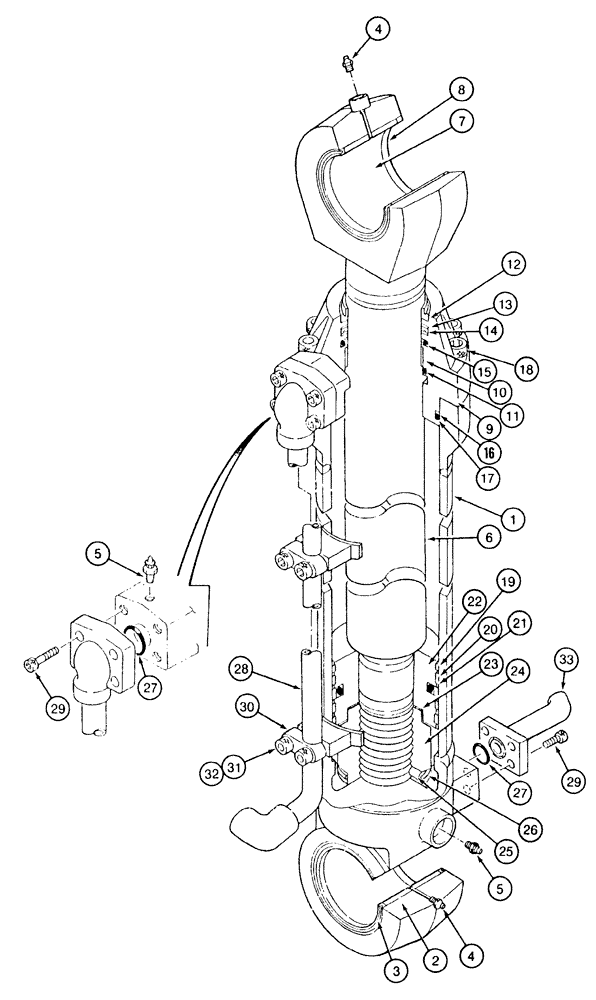

Запчасти Case 9040 (8-94) - BUCKET CYLINDER ASSEMBLY, STANDARD MODELS (08) - HYDRAULICS

151237A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, Includes: Ref. 1 - 33

1шт.

155852A1

HYD TUBE

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

153866A1

BUSHING

- tube

1шт.

3

155144A1

BACK-UP RING

WIPER - pin, cylinder mounting

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

5

155522A1

AIR CLEANER

BREATHER - air

2шт.

6

155854A1

ROD

- piston, Includes: Ref. 7

1шт.

7

155408A1

BUSHING

- cylinder rod

1шт.

8

155117A1

BACK-UP RING

WIPER - pin, cylinder mounting

2шт.

155857A1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

10

155405A1

BUSHING

- gland

1шт.

11

155713A1

RING, SNAP

RING - retaining

1шт.

12

155143A1

BACK-UP RING

WIPER - rod

1шт.

Part of Seal Kit P/N 155995A1

1шт.

13

155249A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 155995A1

1шт.

14

155145A1

RING,90mm ID x 105mm OD x 9mm Thk

SEAL - U-cup, gland

1шт.

Part of Seal Kit P/N 155995A1

1шт.

15

155146A1

SCRAPER RING

RING - buffer

1шт.

Part of Seal Kit P/N 155995A1

1шт.

16

155248A1

BACK-UP RING

RING - backup, gland seal

1шт.

Part of Seal Kit P/N 155995A1

1шт.

17

154760A1

O-RING,119.6mm ID x 5.7mm Width

- gland, to tube

1шт.

Part of Seal Kit P/N 155995A1

1шт.

18

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

BOLT - hex socket, 20 - 2.5 x 70 mm, class 12.9

8шт.

19

155319A1

RING

- wear, piston, outer

2шт.

Part of Seal Kit P/N 155995A1

1шт.

20

155320A1

RING

- wear, piston, inner

2шт.

Part of Seal Kit P/N 155995A1

1шт.

21

155323A1

SEALING RING

SEAL - piston

1шт.

Part of Seal Kit P/N 155995A1

1шт.

22

155969A1

PISTON

- cylinder

1шт.

23

155712A1

SHIM KIT

SPACER - shim set

1шт.

Part of Seal Kit P/N 155995A1

1шт.

24

156215A1

NUT

- special

1шт.

25

155703A1

PIN

- locking

1шт.

26

155707A1

RING, SNAP

RING - retaining

1шт.

27

154528A1

O-RING

- tube

2шт.

28

155521A1

HYD TUBE

TUBE - hydraulic

1шт.

29

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

8шт.

30

155700A1

CLAMP

- tube retaining

1шт.

31

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

2шт.

32

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10 - 1.5 x 50 mm, class 10.9

2шт.

33

155516A1

TUBE

TUBE - hydraulic

1шт.

155995A1

SEAL KIT

- seal, Includes: Ref. 12-17, 19-21 and 23

1шт.
