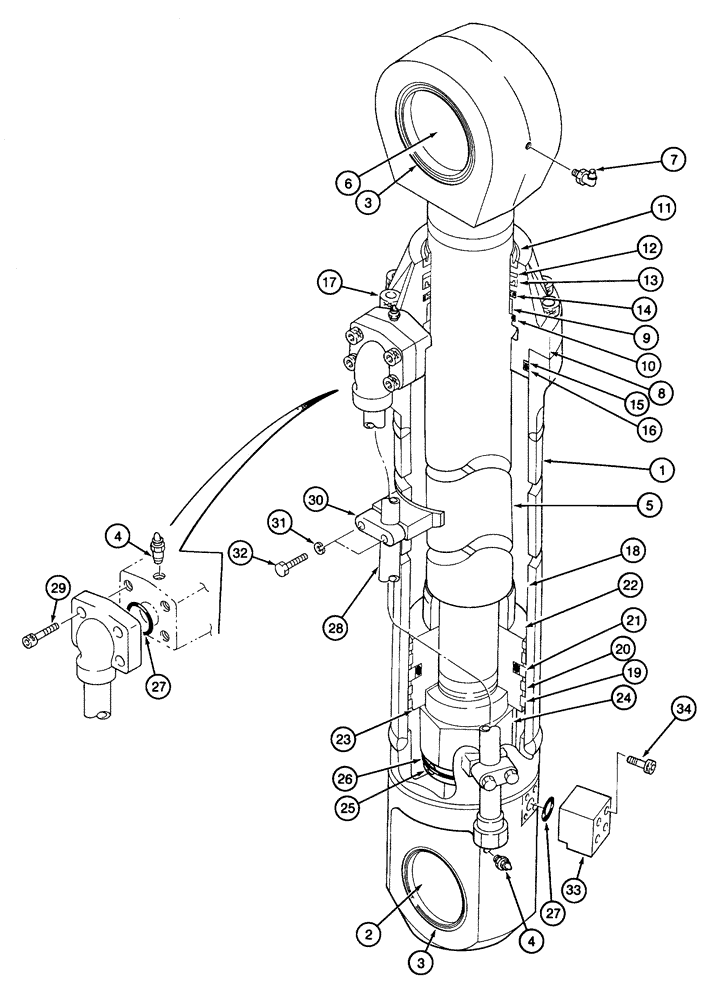

Запчасти Case 9040 (8-92) - ARM CYLINDER ASSEMBLY, STANDARD MODELS (08) - HYDRAULICS

151243A1

CYLINDER

ASSEMBLY - arm, Includes: Ref. 1 - 34

1шт.

155851A1

CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

155407A1

BUSHING

- rod

1шт.

3

155117A1

BACK-UP RING

WIPER - pin, cylinder mounting

4шт.

4

155522A1

AIR CLEANER

BREATHER - air

2шт.

5

155853A1

PISTON

ROD - piston, Includes: Ref. 6

1шт.

6

155407A1

BUSHING

- rod

1шт.

7

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

Rod end 90º, 1/8"-27 NPT x 21.5mm lg

1шт.

155856A1

CYLINDER

GLAND ASSEMBLY - cylinder, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

9

155406A1

BUSHING

- gland

1шт.

10

155711A1

RING, SNAP

RING - retaining

1шт.

11

155142A1

BACK-UP RING

WIPER - piston rod

1шт.

Part of Seal Kit P/N 155994A1

1шт.

12

155247A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 155994A1

1шт.

13

155118A1

RING

SEAL - U-cup, gland

1шт.

Part of Seal Kit P/N 155993A1

1шт.

14

155147A1

SCRAPER RING

RING - buffer

1шт.

Part of Seal Kit P/N 155993A1

1шт.

15

155235A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 155993A1

1шт.

16

154796A1

O-RING

- seal, gland

1шт.

Part of Seal Kit P/N 155993A1

1шт.

17

156211A1

BOLT,Hex Skt

- hex socket, special

8шт.

18

155715A1

BUSHING

BEARING - cushion

1шт.

19

155309A1

RING

- wear, outer

2шт.

Part of Seal Kit P/N 155993A1

1шт.

20

155322A1

BACK-UP RING

RING - wear, inner

2шт.

Part of Seal Kit P/N 155993A1

1шт.

21

155314A1

SEALING RING

SEAL - ring, piston

1шт.

Part of Seal Kit P/N 155993A1

1шт.

22

155968A1

PISTON

- cylinder

1шт.

23

155710A1

SHIM KIT

SPACER - shim set

1шт.

Part of Seal Kit P/N 155993A1

1шт.

24

156216A1

NUT

- special

1шт.

25

155702A1

PIN

- locking

1шт.

26

155705A1

RING, SNAP

RING - retaining

1шт.

27

154543A1

O-RING

- Tube

2шт.

28

155520A1

HYD TUBE

TUBE - hydraulic

1шт.

29

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

30

155708A1

HOLDER

BRACKET - tube retaining

2шт.

31

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

4шт.

32

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

33

155517A1

JOINT

BLOCK - coupling

1шт.

34

863-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 80 mm, class 12.9

4шт.

155994A1

SEAL KIT

KIT - seal, Includes: Ref. 11-16, 19-21 and 23

1шт.
