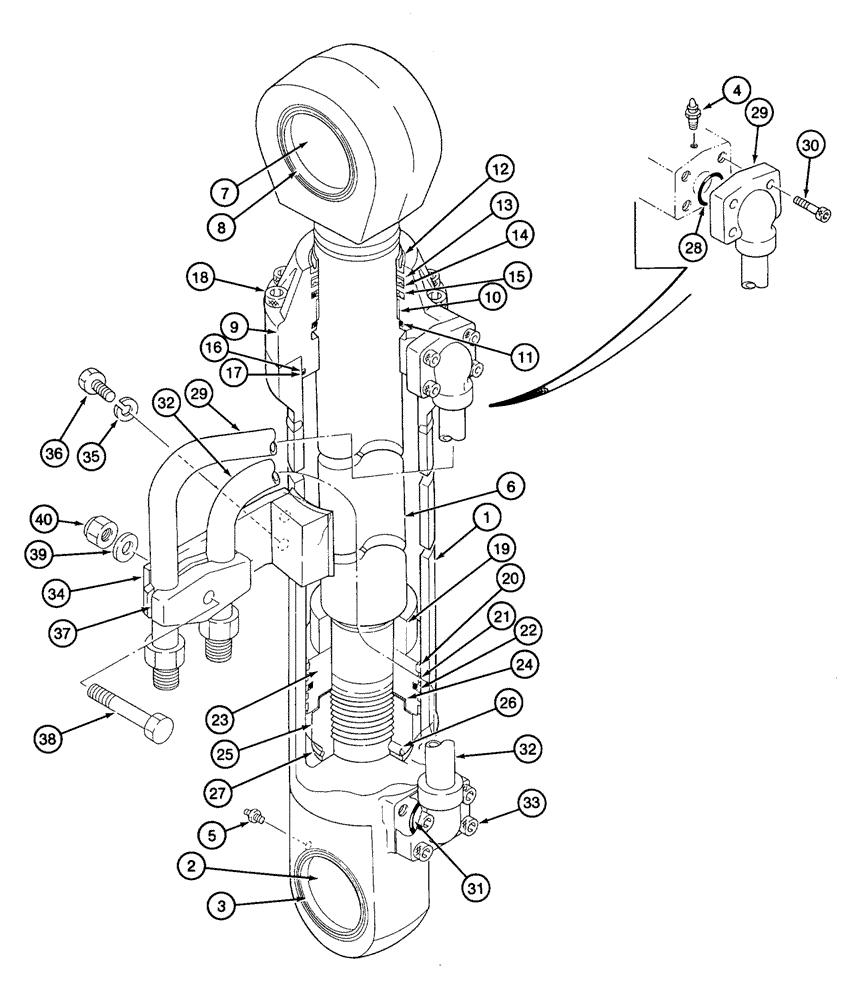

Запчасти Case 9040 (8-90) - BOOM CYLINDER ASSEMBLIES (08) - HYDRAULICS

151439A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, right-hand, Includes: Ref. 1 - 40

1шт.

151445A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, left-hand, Includes: Ref. 1 - 40

1шт.

155858A1

HYD TUBE

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

155402A1

BUSHING

- tube

1шт.

3

155117A1

BACK-UP RING

WIPER - pin, cylinder mounting

2шт.

4

155522A1

AIR CLEANER

BREATHER - air

1шт.

5

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

6

155859A1

ROD ASSY.

ROD - piston, Includes: Ref. 7

1шт.

7

153865A1

BUSHING

- rod

1шт.

8

155120A1

BACK-UP RING

RING - wiper

2шт.

155855A1

CYLINDER

GLAND ASSEMBLY - cylinder, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

10

155405A1

BUSHING

- gland

1шт.

11

155713A1

RING, SNAP

RING - retaining

1шт.

12

155143A1

BACK-UP RING

WIPER - rod

1шт.

Part of Seal Kit P/N 155993A1

1шт.

13

155249A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 155993A1

1шт.

14

155145A1

RING,90mm ID x 105mm OD x 9mm Thk

SEAL - U-cup, gland

1шт.

Part of Seal Kit P/N 155993A1

1шт.

15

155146A1

SCRAPER RING

RING - buffer

1шт.

Part of Seal Kit P/N 155993A1

1шт.

16

155233A1

SEALING RING

RING - backup

1шт.

Part of Seal Kit P/N 155993A1

1шт.

17

154776A1

O-RING

- seal, gland

1шт.

Part of Seal Kit P/N 155993A1

1шт.

18

863-22075

HEX SOC SCREW,M22 x 75mm, Cl 12.9

BOLT - hex socket, 22 - 2.5 x 75 mm, class 12.9

8шт.

19

155714A1

BUSHING

BEARING - cushion

1шт.

20

155307A1

RING

- slide, outer

2шт.

Part of Seal Kit P/N 155993A1

1шт.

21

155321A1

RING

- slide, inner

2шт.

Part of Seal Kit P/N 155993A1

1шт.

22

155312A1

SEALING RING

SEAL - piston, ring

1шт.

Part of Seal Kit P/N 155993A1

1шт.

23

155967A1

PISTON

- cylinder

1шт.

24

155712A1

SHIM KIT

SPACER - shim set

1шт.

Part of Seal Kit P/N 155993A1

1шт.

25

156215A1

NUT

- special

1шт.

26

155703A1

PIN

- locking

1шт.

27

155707A1

RING, SNAP

RING - retaining

1шт.

28

154543A1

O-RING

- Tube

1шт.

29

155523A1

HYD TUBE

TUBE - hydraulic, at rod end of right-hand cylinder

1шт.

29

155524A1

HYD TUBE

TUBE - hydraulic, at rod end of left-hand cylinder

1шт.

30

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

4шт.

31

154528A1

O-RING

- tube

1шт.

32

155518A1

HYD TUBE

TUBE - hydraulic, at closed end of right-hand cylinder

1шт.

32

155519A1

HYD TUBE

TUBE - hydraulic, at closed end of left-hand cylinder

1шт.

33

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

34

156372A1

PLATE

- tube

1шт.

35

153623A1

SPRING WASHER

WASHER - lock, special

2шт.

36

153876A1

SPECIAL BOLT,Spcl, Hex, M14 x 30mm

BOLT - special, boom cylinder

2шт.

37

155701A1

COLLAR

CLAMP - tube, support

2шт.

38

153910A1

BOLT,High Strength, Hex, M14 x 80mm

BOLT - hex, special

1шт.

39

892-16014

LOCK WASHER,M14, Hvy

- lock, 14 mm

1шт.

40

156212A1

NUT

- special, boom cylinder

1шт.

155993A1

SEAL KIT

KIT - seal, Includes: Ref. 12-17, 20-22 and 24

1шт.
