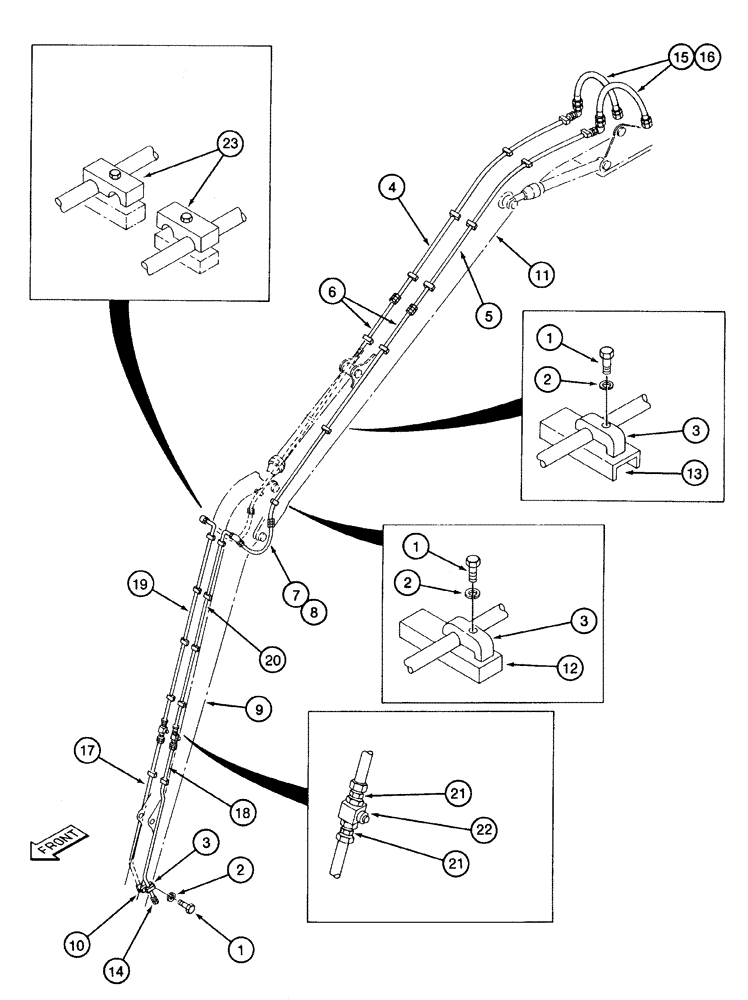

Запчасти Case 9040 (8-89C) - AUXILIARY HYDRAULICS, LONG REACH MODELS ONLY (08) - HYDRAULICS

1

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

16шт.

2

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

16шт.

3

151486A1

CLAMP BRACKET

CLAMP - service line

6шт.

4

158576A1

TUBE,27.2 mm OD, 2541.4, 1684.6 mm Length

- long reach

1шт.

5

158579A1

TUBE,27.2 mm OD, 2541.4, 1684.6 mm Length

- long reach

1шт.

6

158580A1

TUBE,27.2 mm OD, 5202, 72 mm Length

- long reach

2шт.

7

151455A1

HOSE ASSY.,1500.00 mm

HYDRAULIC HOSE - Includes Ref. 8 1500.00 mm

2шт.

8

154503A1

O-RING

- hose end

1шт.

9

158546A1

ARM

- long reach

1шт.

10

151255A1

BAR

- base

2шт.

11

158543A1

BOOM

- excavator, long reach

1шт.

12

158574A1

BAR

- base

2шт.

13

153854A1

BAR

- base

12шт.

14

153683A1

PLUG

- service line

2шт.

15

153735A1

HOSE ASSY.

HOSE - hydraulic, Includes: Ref. 16

2шт.

16

154523A1

O-RING

- hose end

1шт.

17

158585A1

TUBE,27.2 mm OD, 3205, 213 mm Length

- long reach

1шт.

18

158586A1

TUBE,27.2 mm OD, 3205, 213 mm Length

- long reach

1шт.

19

158581A1

HYD TUBE,27.2 mm OD, 3855.6, 204.5 mm Length

TUBE - to bucket cylinder, on upper arm, left-hand

1шт.

20

158583A1

HYD TUBE,27.2 mm OD, 3855.6, 204.5 mm Length

TUBE - to bucket cylinder, on upper arm, right-hand

1шт.

21

150720A1

ADAPTER

- straight, special

4шт.

22

158584A1

VALVE

- stop

2шт.

23

152085A1

COLLAR

CLAMP - tube

10шт.
