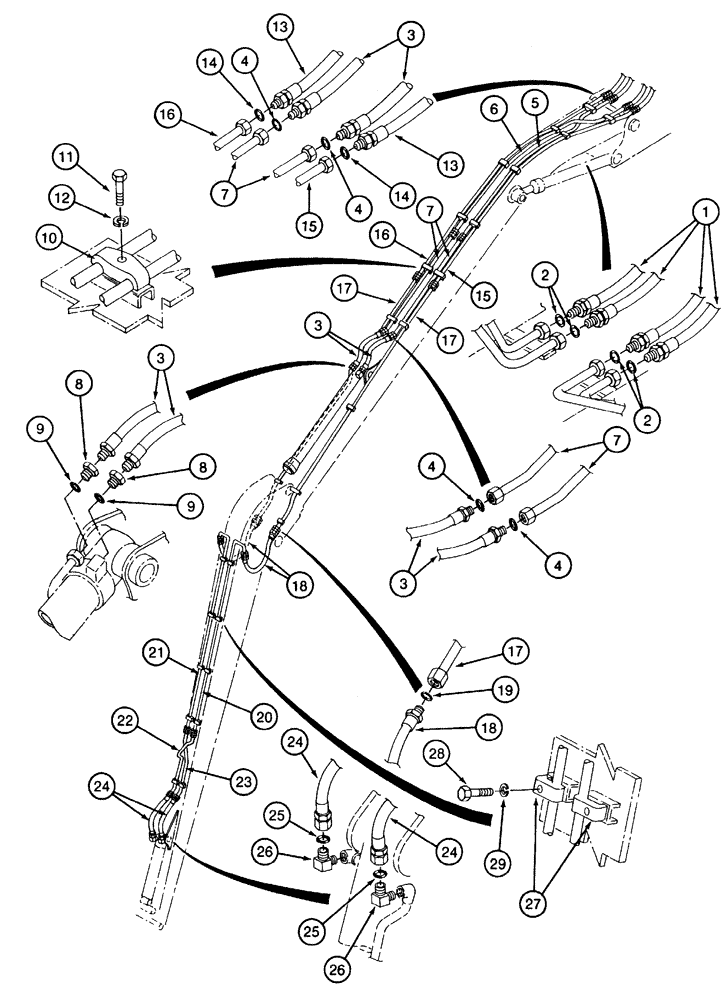

Запчасти Case 9040 (8-89A) - BOOM, ARM AND BUCKET HYDRAULIC CIRCUIT, LONG REACH MODELS (08) - HYDRAULICS

1

151453A1

HOSE,970.00 mm

HYDRAULIC HOSE - At boom cylinders, Includes Ref. 2 970.00 mm

4шт.

2

154503A1

O-RING

- hose

1шт.

3

151180A1

HYDRAULIC HOSE,1110.00 mm

- To arm cylinder at base of boom, Includes Ref. 4 1110.00 mm

2шт.

4

154523A1

O-RING

- hose

1шт.

5

158563A1

HYD TUBE

TUBE - to arm cylinder, lower left-hand, crossunder, on boom

1шт.

6

158561A1

HYD TUBE

TUBE - to arm cylinder, lower right-hand, crossover, on boom

1шт.

7

158559A1

HYD TUBE,34 mm OD, 2429 mm Length

TUBE - to arm cylinder, on upper boom

2шт.

8

158558A1

ADAPTER

- straight, Includes: Ref. 9

2шт.

9

154559A1

O-RING

- adapter

2шт.

10

151489A1

CLAMP

- tubes, double

12шт.

11

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

12

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm

12шт.

13

151182A1

HYDRAULIC HOSE,1110.00 mm

- To bucket cylinder at base of boom, Includes Ref. 14 1110.00 mm

2шт.

14

154503A1

O-RING

- hose

2шт.

15

158569A1

HYD TUBE

TUBE - to bucket cylinder, lower left-hand, at base of boom

1шт.

16

158568A1

HYD TUBE

TUBE - to bucket cylinder, lower right-hand, at base of boom

1шт.

17

158567A1

HYD TUBE,27.2 mm OD, 5226, 72 mm Length

TUBE - to bucket cylinder, on upper boom

2шт.

18

151455A1

HOSE ASSY.,1500.00 mm

HYDRAULIC HOSE - To bucket cylinder, At upper boom end, Includes Ref. 19 1500.00 mm

2шт.

19

154503A1

O-RING

- hose

2шт.

20

158581A1

HYD TUBE,27.2 mm OD, 3855.6, 204.5 mm Length

TUBE - to bucket cylinder, on upper arm, left-hand

1шт.

21

158583A1

HYD TUBE,27.2 mm OD, 3855.6, 204.5 mm Length

TUBE - to bucket cylinder, on upper arm, right-hand

1шт.

22

158564A1

HYD TUBE

TUBE - to bucket cylinder, crossover on arm

1шт.

23

158566A1

HYD TUBE

TUBE - to bucket cylinder, crossunder, on arm

1шт.

24

152347A1

HYDRAULIC HOSE,950mm

- At bucket cylinders, Includes Ref. 25 950.00 mm

2шт.

25

154503A1

O-RING

- hose

2шт.

26

153622A1

ADAPTER

ELBOW - 90 degree, special

2шт.

27

151486A1

CLAMP BRACKET

CLAMP - tube

14шт.

28

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

14шт.

29

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

14шт.
